1 to 4 Poe Splitter and Extender Video Balun for IP Security Cameras System
1 to 4 PoE Splitter and ExtenderProduct overview4-Ports PoE Extender has 5 10/100M PoE ports, among them , 1 port for power input, and others for power output.Comply with 10/100 BASE-TX, IEEE802.3at (power-in) / IEEE802.3af (power-out). The power input is 25.5W in total.Power output for single port ......
Send Inquiry
Product Description

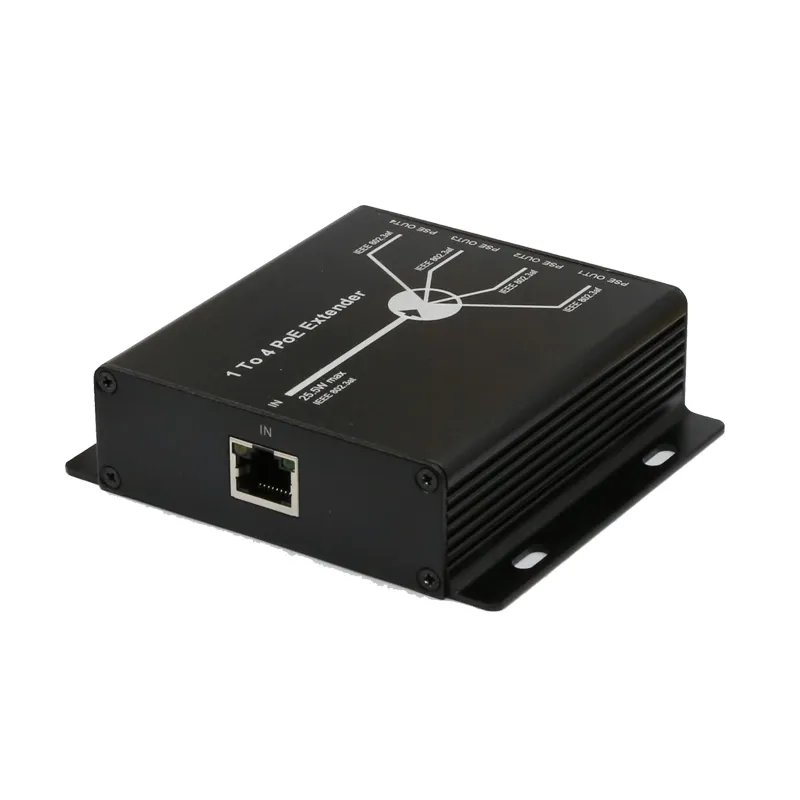

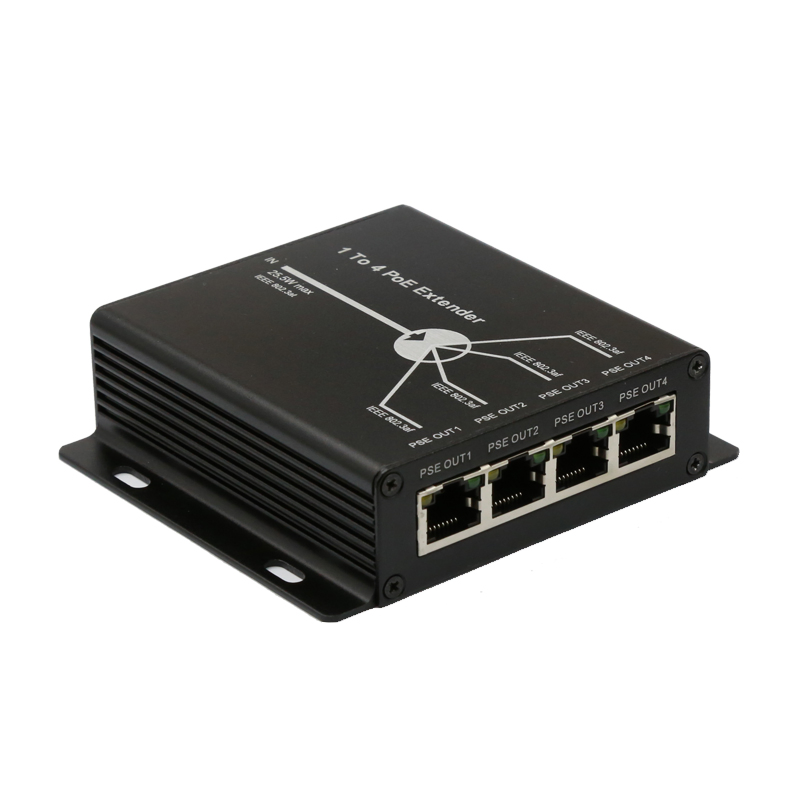

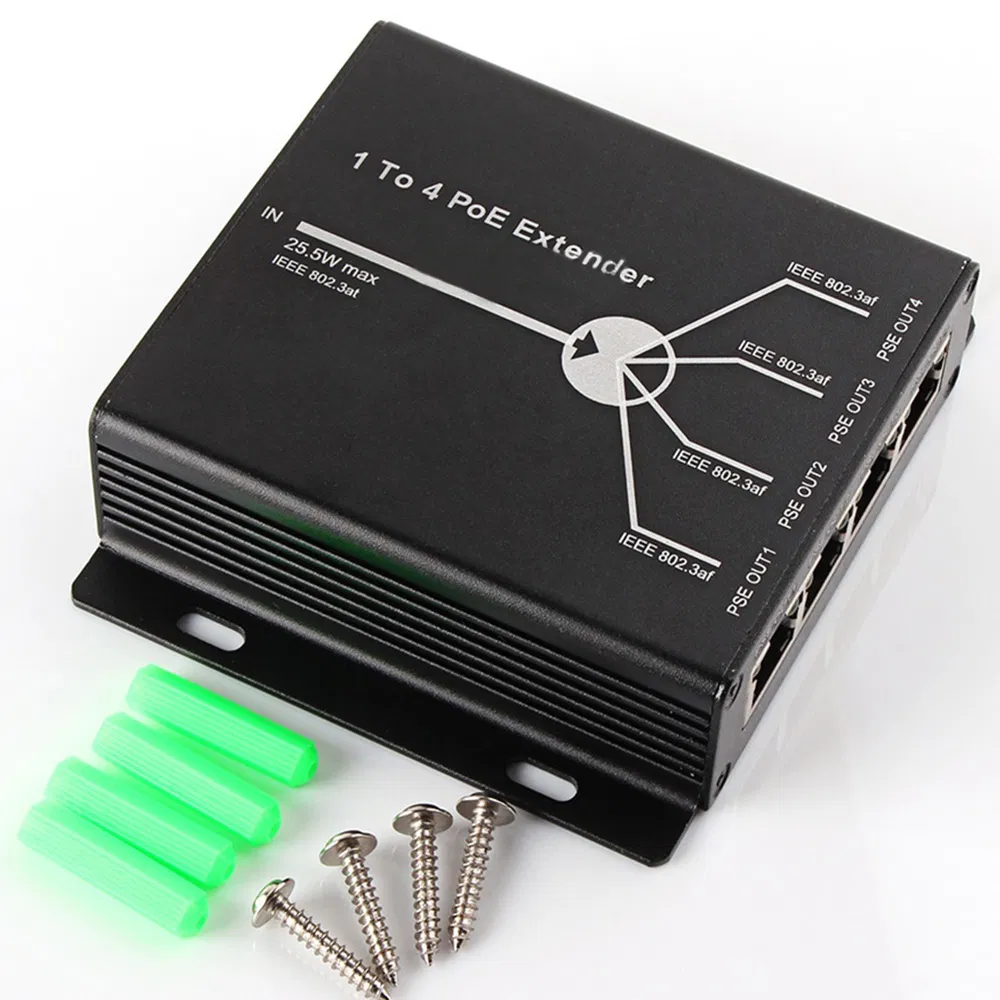

1 to 4 PoE Splitter and Extender
Product overview
4-Ports PoE Extender has 5 10/100M PoE ports, among them , 1 port for power input, and others for power output.
Comply with 10/100 BASE-TX, IEEE802.3at (power-in) / IEEE802.3af (power-out). The power input is 25.5W in total.
Power output for single port is 15.4W(max).

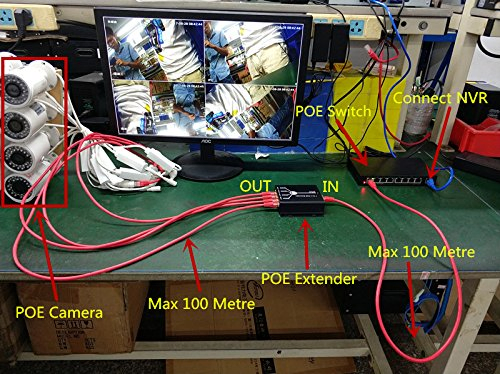

PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.
It offers you great flexibility to extend the distance of PoE.
Features:
* Comply with IEEE 802.3af Power over Ethernet.
* 10/100m Supported.
* Extend the range of PoE an additional 120 meters.
* Automatically detects and protects PoE equipments from being damaged by incorrect installation.
* Plug and Play no configuration required.
* 4 ports PoE extender can forward both ethernet and PoE power for 4 terminal equipments via Cat5 UTP cables.
4-Ports PoE Extender has 5 10/100M PoE ports, among them , 1 port for power input, and others for power output.
Comply with 10/100 BASE-TX, IEEE802.3at (power-in) / IEEE802.3af (power-out). The power input is 25.5W in total.
Power output for single port is 15.4W(max).
PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cable.
It offers you great flexibility to extend the distance of PoE.
Features:
* Comply with IEEE 802.3af Power over Ethernet.
* 10/100m Supported.
* Extend the range of PoE an additional 120 meters.
* Automatically detects and protects PoE equipments from being damaged by incorrect installation.
* Plug and Play no configuration required.
* 4 ports PoE extender can forward both ethernet and PoE power for 4 terminal equipments via Cat5 UTP cables.
| Product Name | 1-Port 10/100M PoE Extender | 4-Ports 10/100M PoE Extender |
| Port Description | POE Input: 1 RJ45 Port PoE Output: 1 RJ45 Port | PoE input: 1 RJ45 Port PoE output: 4 RJ45 Ports |
| Network Medium | Cat5 or better UTP cables(≤120m) | |
| Repeater Mode | Store and forward | |
| MAC Address Table | 2K | |
| Packet Buffer Memory | 48Byte | |
| Switching Capacity | 400Mbps | 1.0Gbps |
| PoE Standard | IEEE802.3af | IEEE802.3at(Power-in) IEEE802.3af(Power-out) |
| PoE Port Power | Input POwer: 13 Watts; Output: 12.2 Watts | Input Power: 25.5 Watts; Output: 24 Watts in total |
| LED Display | PoE working status, ethernet | |
| PoE power Supply Type | 1/2(+), 3/6(-),Mode A, End-Span | |
| Network Protocol | IEEE 802.3i: 10BASE-T IEEE 802.3u: 100BASE-TX IEEE 802.3x: Flow Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: Power over Ethernet(for 4-Ports PoE Extender only) | |
| Regulation Compliance | FCC Part 15B RoHs Directive 2011/65/EU Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Diective 2004/108/EC | |
| Working Environment | Working Temperature:0~40 Working Humidity:10%~90%, No Condensation | |
| Storage Environment | Storage Temperature:-30~70 Storage Humidity:5%~90%, No Condensation | |
| Dimension | 75x37x26.5mm | 105x93x28.5mm |
