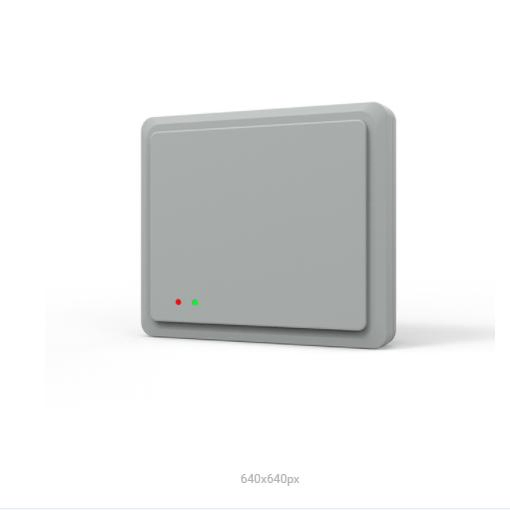

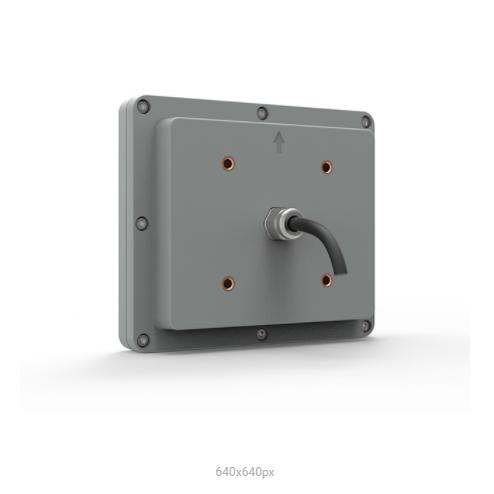

Nanoradar 24GHz Millimeter Wave Radar Sensor for Multi Lanes Traffic Speed Measurement
Company Profile Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is ......
Send Inquiry
Product Description
Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

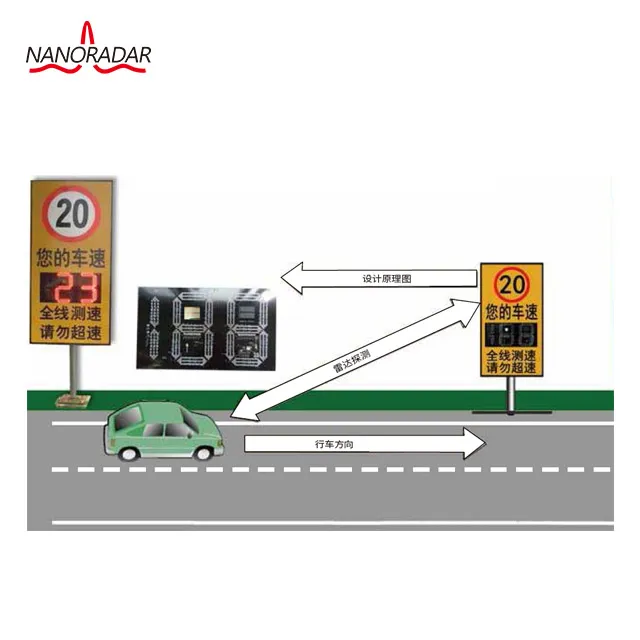

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.
The speed sign system is made up of following:
Speed detection: Traffic speed radar
Video Records: Camera, Lights
Front Data Process
Unit: Identification on Server
Networking Unit: Switch, Optical Transmitter & Receiver
Multiple installation is controlled at the management center.
| Transmit frequency | 24GHz |
| Transmit power(EIRP) | 20dBm |
| Response time | 20ms |
| Transmit frequency error | -45~40MHz |
| Power | 1.6W |
| Communication interface | RS484/RS232/Wifi/L(H) level |
| Speed range | 10~300km/h |
| Speed accuracy | -1~0km/h |
| Direction | Coming/going direction could be distinguish |
| Distance range | 15~150meters |
| Distance accuracy | ±0.5meter |
| Beam width/TX | Azimuth(-6dB)7deg |
| Elevation(-6dB)28deg | |
| Working voltage | 9~16V DC |
| Working current | 0.13A@12V DC |
| Working temperature | -40~85ºC |
| Working humidity | 5%~95%RH |
| Size | 148*124.5*26.5mm |
| Protection class | IP66 |
Nano Radar Advantages:

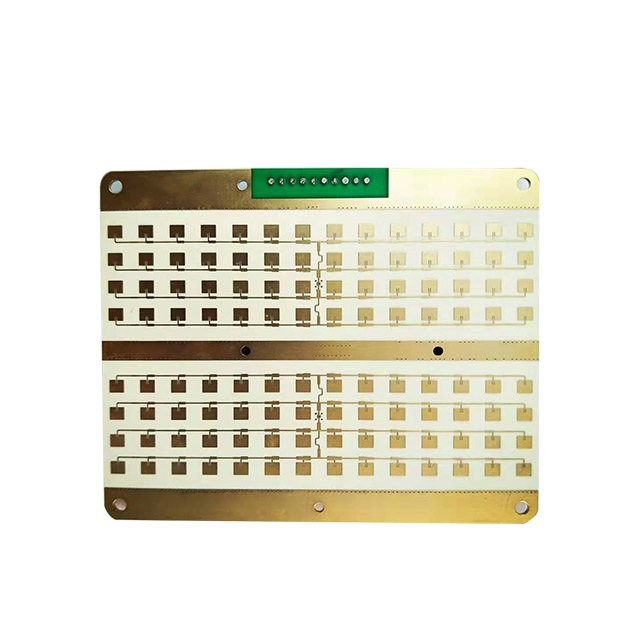

*Adopt 24 GHz MMIC Technology
*Small size, light weight and convenient installation
*Accurate speed measurement and difference within 1km/h
*Trigger distance up to 250-300 Speed measurement range: 10-300km /
*Multiple lanes supported
*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment

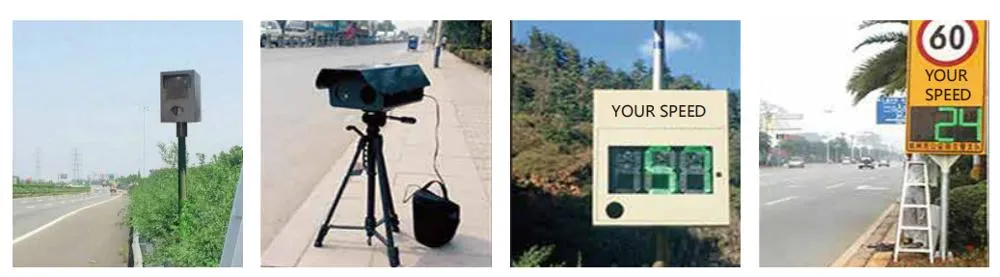

| Installation Cases on Real Site |

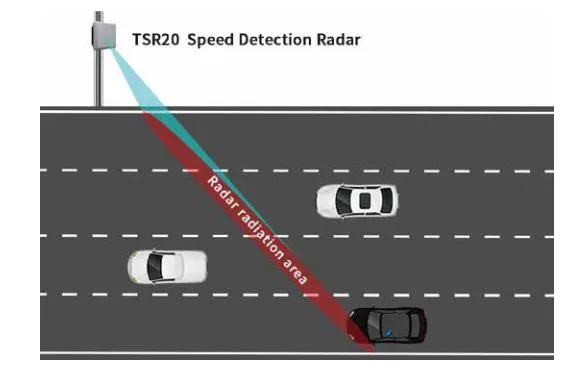

TSR20 speed detection radar adopts CW modulation to realize the speed measurement. It is mainly deployed in expressway, ordinary highway, community gate, corner intersection and school road section etc to accurately detect and display vehicle speed, timely remind drivers of over-speeding, so as to effectively reduce road traffic accidents.
1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
