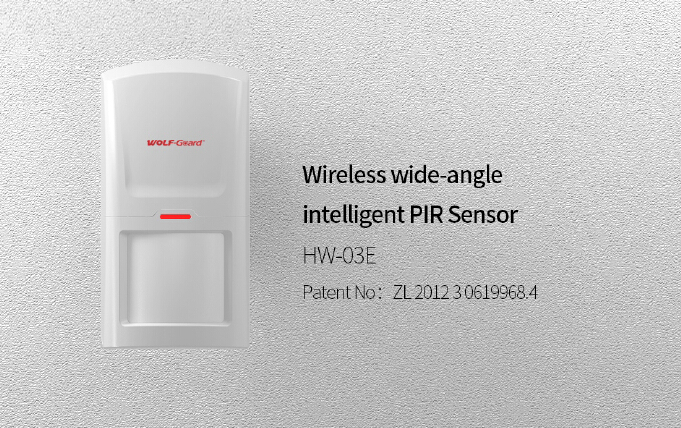

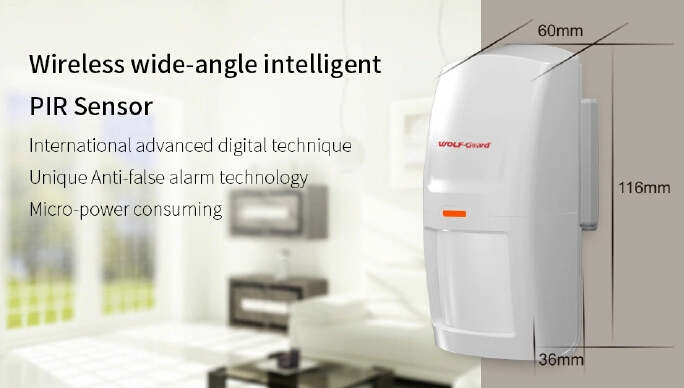

              OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)
              • OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)
              • OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)
              • OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)
              • OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)

              OEM/ODM Smart Wireless PIR Mini Infrared Detector (HW-03E)

              Features:This product is a special home and business PIR detector with delicate and modern design, adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and anti-strong light function and avoid false alarm.High technology to distinguish interference a......

              Send Inquiry

              Product Description

              Features:

              • This product is a special home and business PIR detector with delicate and modern design, adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and anti-strong light function and avoid false alarm.
              • High technology to distinguish interference and motion signal;
              • Re-detecting time adjustable: extend life span of the battery;
              • Low standby current (30uA) to extend the battery life;
              • Tamper alarm function: send signal to the control panel when the cover is open;

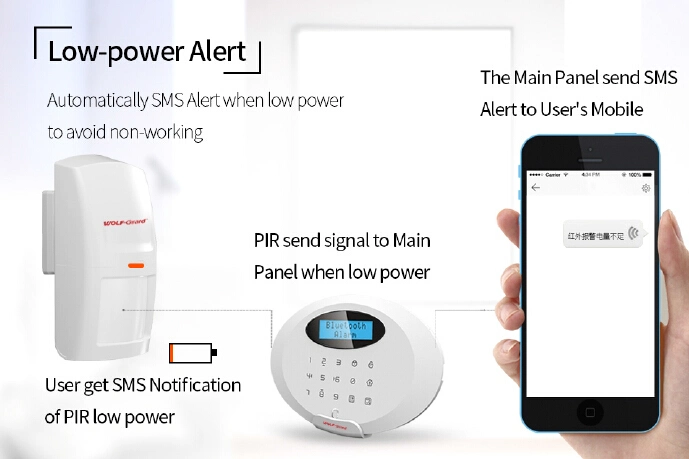

              • Low power alert function: inform users to change batteries in time.

              Technical Parameters:




              Sensor



              Passive IR sensor



              Working voltage



              DC6V (4pcs AAA 1.5V dry batteries)



              Static current



              <30uA



              Alarm current



              15mA



              Transmitting frequency



              315/433+0.5MHZ



              Transmitting distance



              no obstacle 80M



              Detecting distance



              12M max



              Detecting angle



              Horizontal 110°, Vertical 60°



              Working Temperature



              +0~+45ºC



              Coding method



              PT2262 or EV1527 optional
