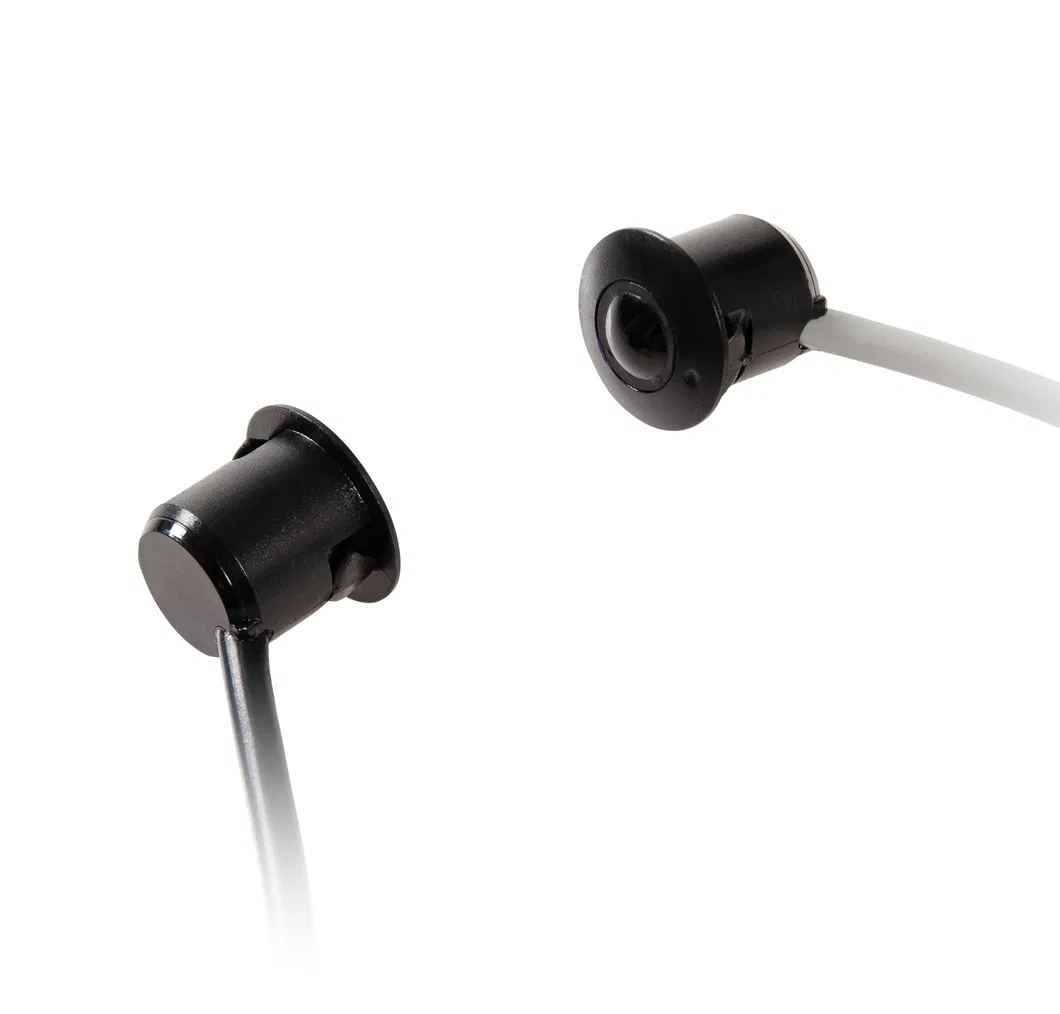

              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

              Product DescriptionPT12T series is one compact design mini-shape photocell. A "Snap-In"mechanism and 45°outlet mode allows fast mounting in a mounting hole with 12.5-13.5 mm diameter; Mini shape, can be applied to the miniaturization of devices; Safety circuit design to be used for......

              Send Inquiry

              Product Description

              Product Description

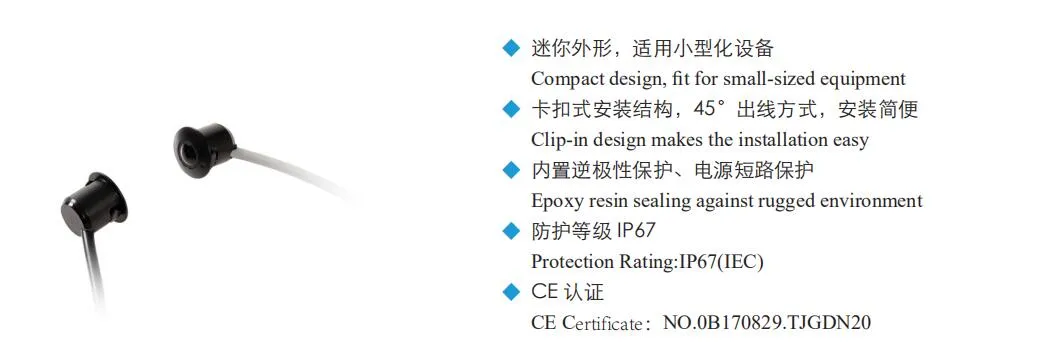

              PT12T series is one compact design mini-shape photocell. A "Snap-In"mechanism and 45°outlet mode allows fast mounting in a mounting hole with 12.5-13.5 mm diameter; Mini shape, can be applied to the miniaturization of devices; Safety circuit design to be used for fault detection of sensor; Epoxide resin sealing is suitable for rugged environment.
              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

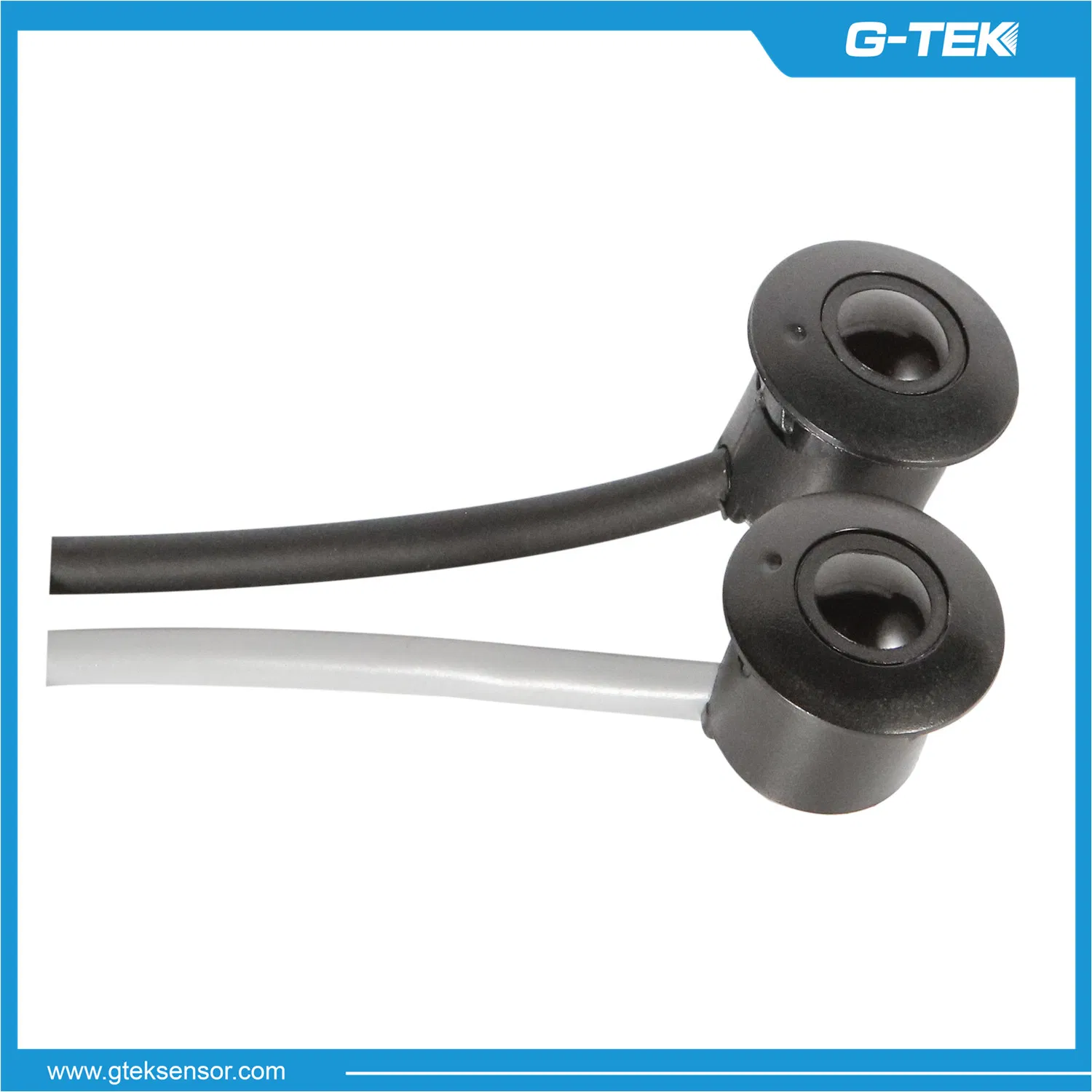

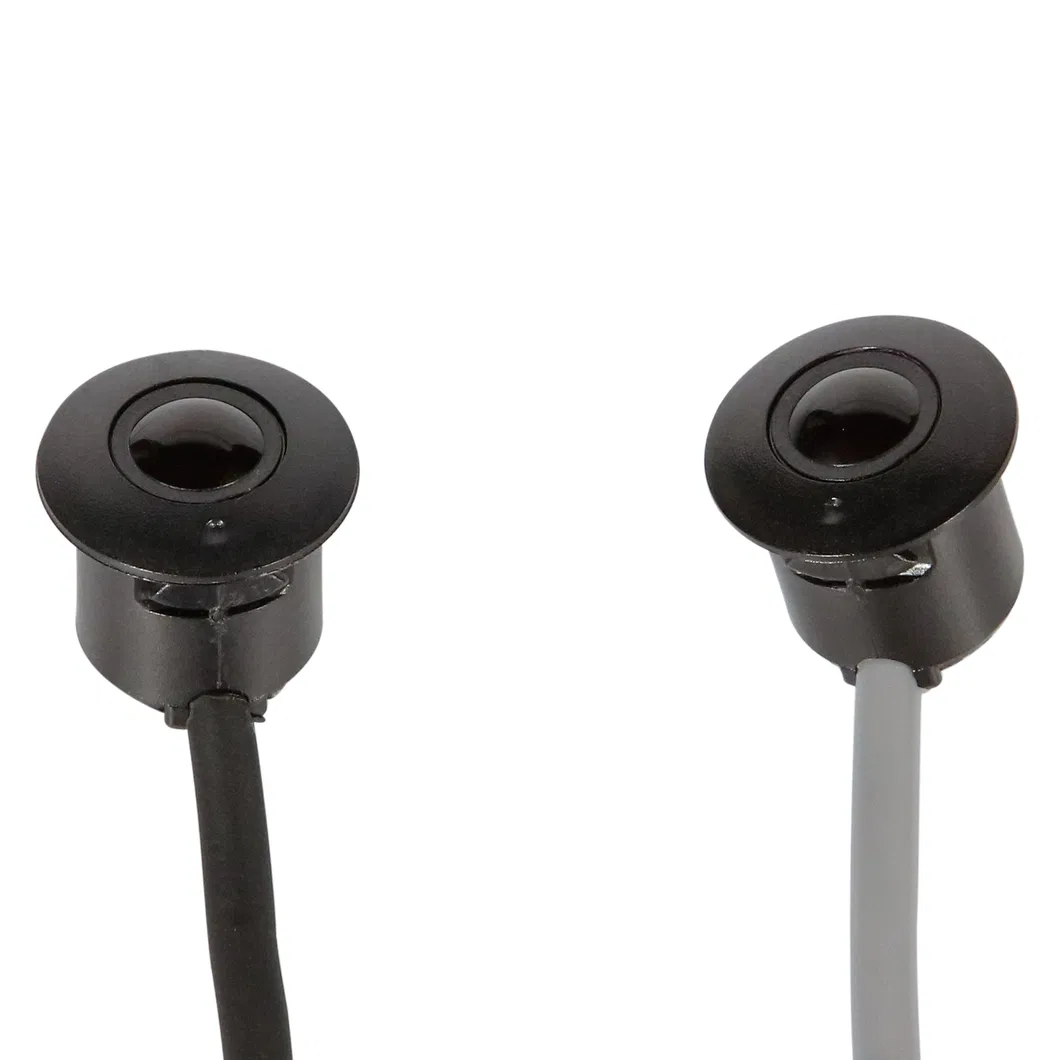

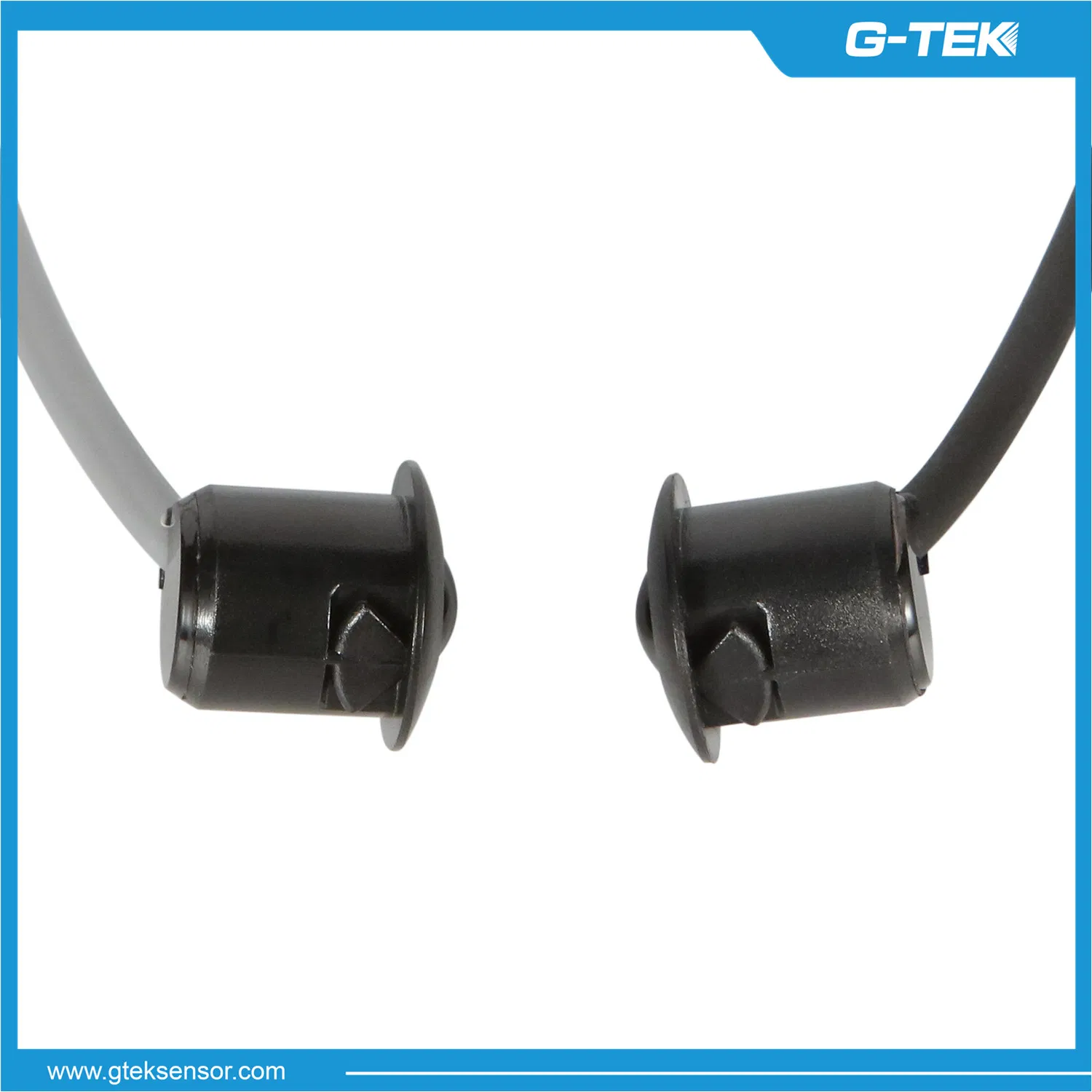

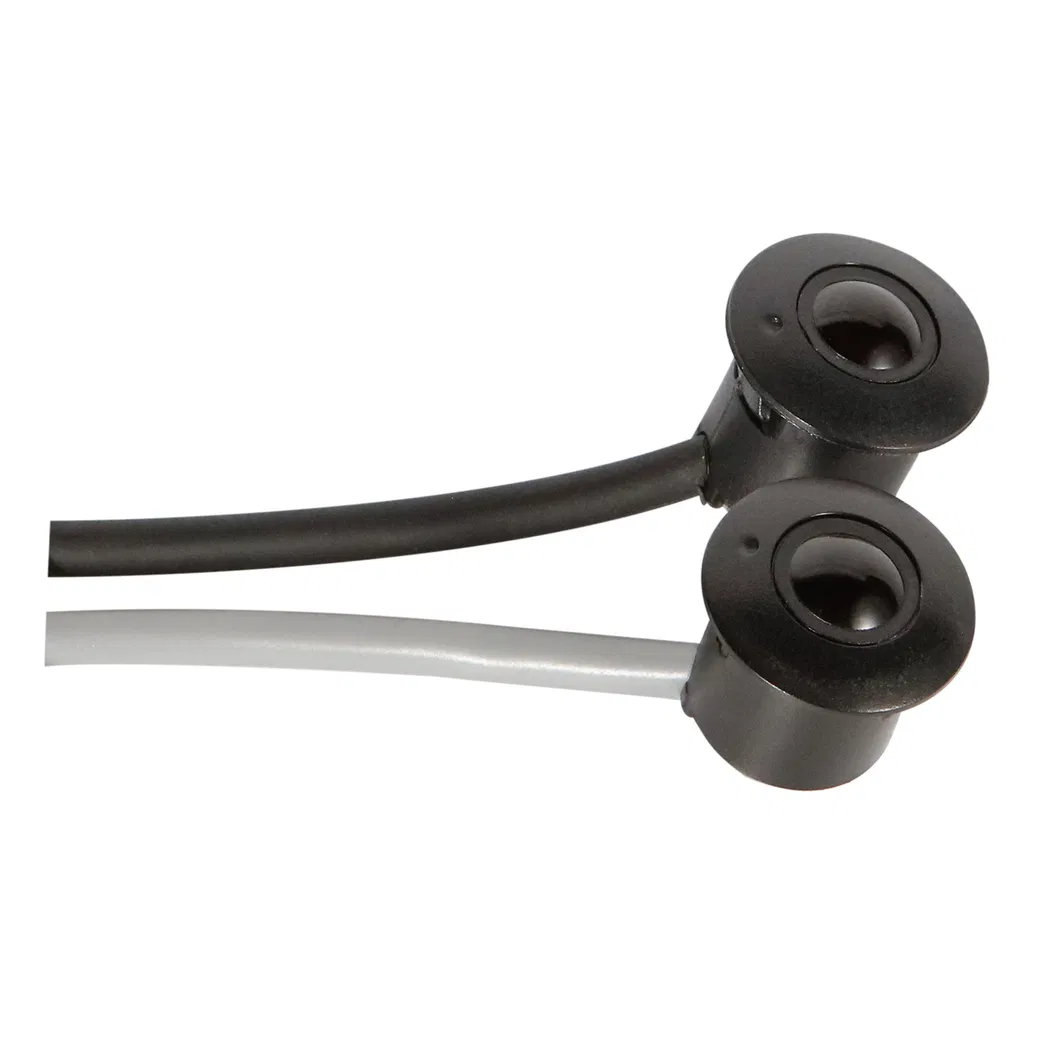

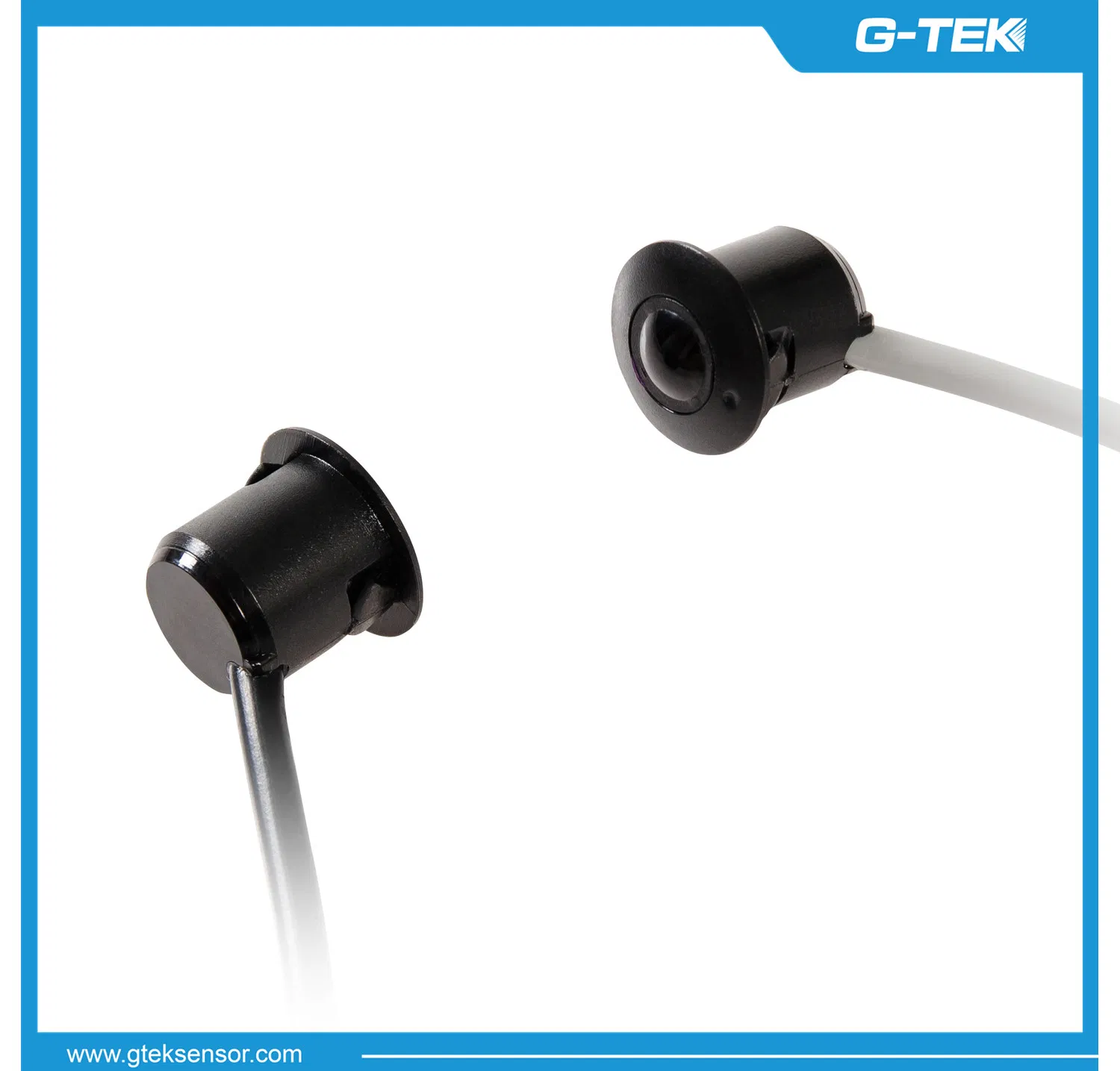

              Detailed Photos

              Opposed Beam Photo Sensor, Infrared Sensor for Optical TurnstilesOpposed Beam Photo Sensor, Infrared Sensor for Optical TurnstilesOpposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

              Product Parameters

              Product SeriesProduct ModelSupplyVoltageSensingDistanceHousingOutputModeActionMode
              PT12TPT12T-10M-ND10~30V DC10mABSNPNDark On
              PT12T-10M-NLNPNLight On
              PT12T-10M-PDPNPDark On
               PT12T-10M-PL   PNPLight On

              PhotoelectricsensorPT12T-10M-ND
              Detection TypeOpposed type
              Detecting ObjectMin Φ20mm opaque object
              Detecting Distance10m
              Supply Voltage10~30V DC
              No-load CurrentEmitter: Max.12mA; Receiver: MAX.3mA
              Response TimeMax.4.4 ms (connecting: 2.2ms; cutting down:2.2ms)
              Light SourceInfrared LED(850nm)
              Action ModeDark On
              Control OutputNPN open collector
              IndicatorAction indicator:Red
              Circuit ProtectionReverse polarity protection, short circuit protection
              Anti-interference±2KVanalog square wave interference(pulse width: 15ms)
              Ambient BrightnessSunlight:Max.100000lx;Fluorescent:Max.5000lx
              Ambient Temperature-20~+60ºC(Non-freezing),Storage:-25~+70ºC
              Ambient Humidity0~90%RH
              MaterialHousing:ABS; Cable: PVC
              CableEmitter:black  Receiver: Grey
              Protection RateIP67

              Certifications

              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

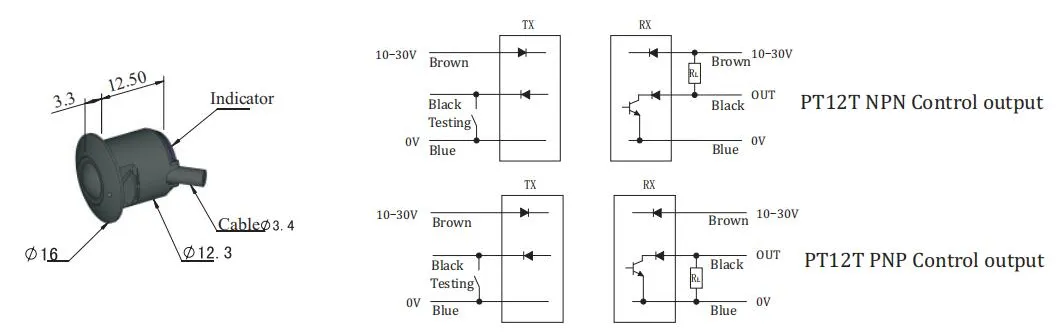

              Installation Instructions

              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

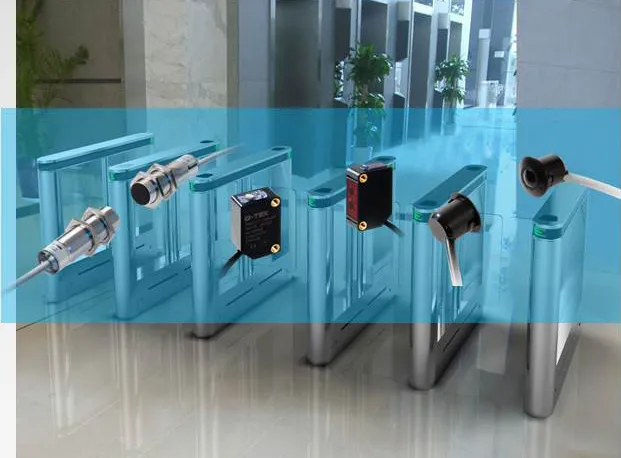

              Product Application

              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

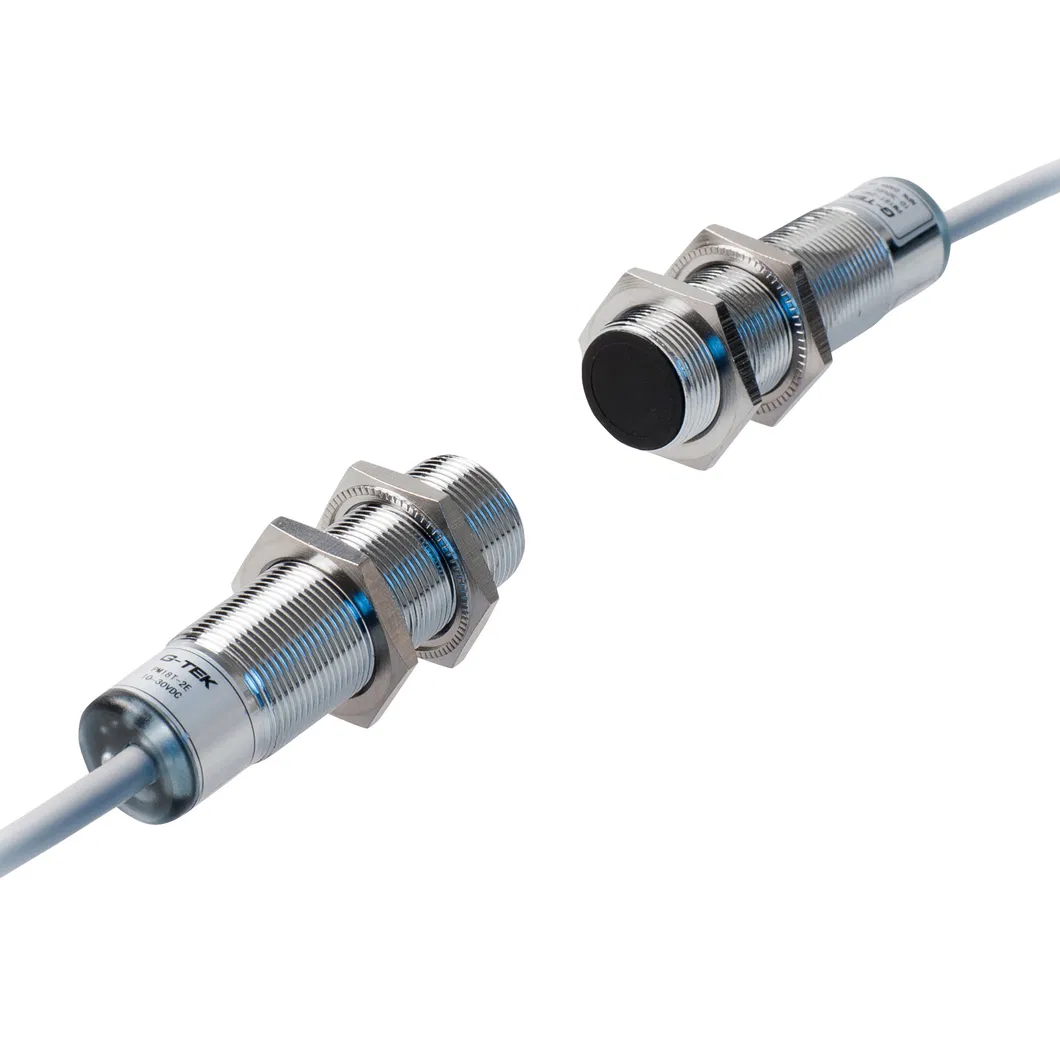

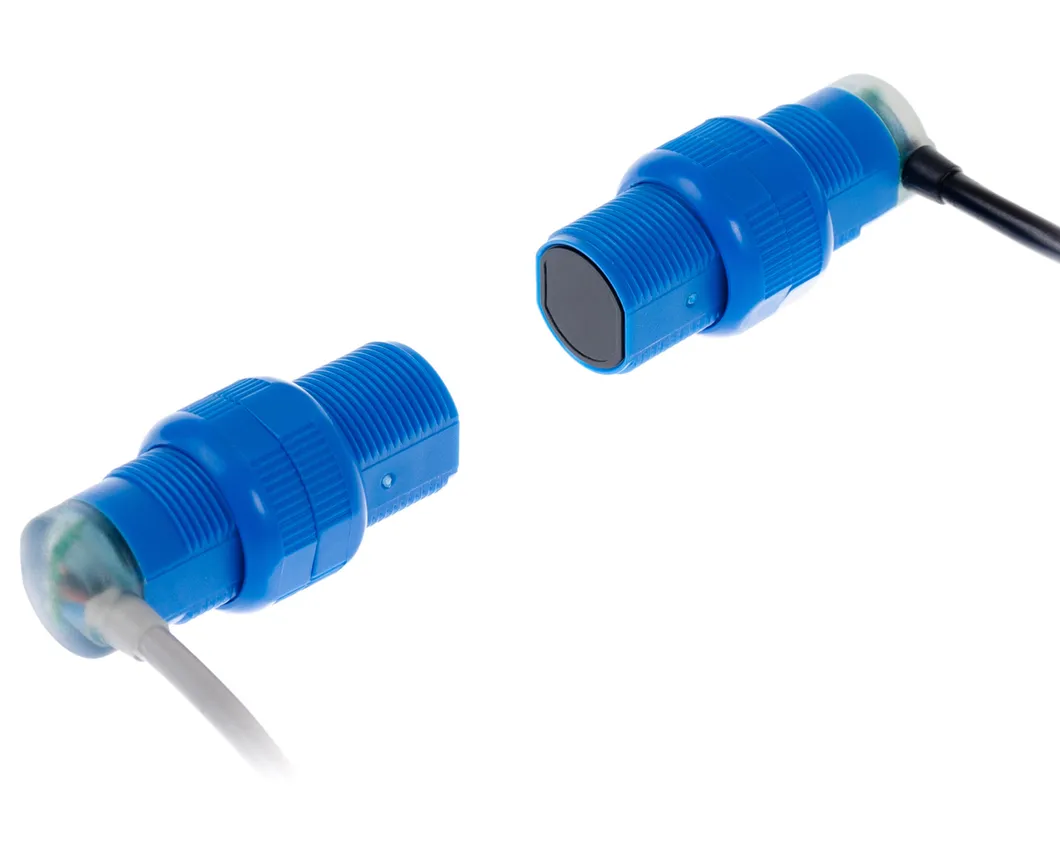

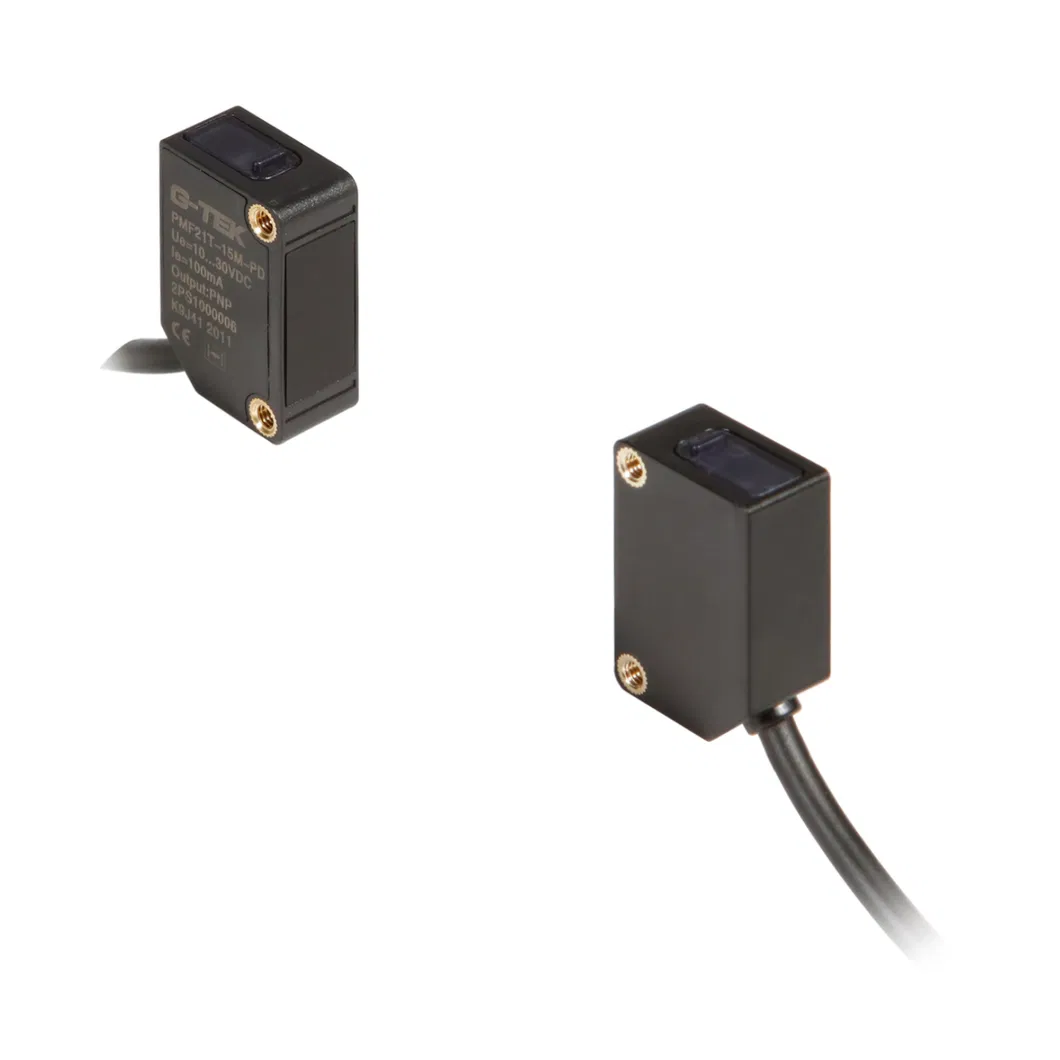

              Recommended Product

              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles
              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles
              Opposed Beam Photo Sensor, Infrared Sensor for Optical Turnstiles

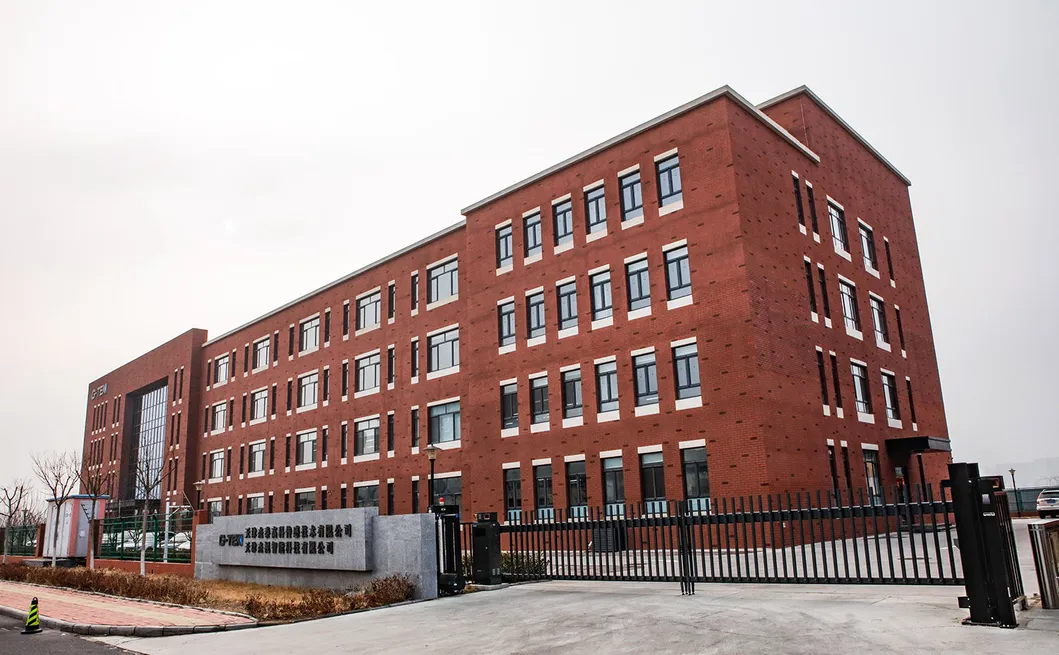

              Company Profile


              Tianjin G-TEK Sensor Technology Co., Ltd. is located in Gaotai Science and Technology Park, Xiqing District, Tianjin and it is a technology-based enterprise specialized in R&D, production and customization of intelligent sensor system solutions. The company manufactures laser radar, TOF3D camera, laser ranging sensor, measurement and safety light curtain, photoelectric sensor, proximity switch and other products with core technology, serving intelligent transportation, logistics automation, factory automation, robot, intelligent security and other fields
