Wireless Range Extender Signal Receive Transfer Repeater

Product Description

Wireless Signal Repeater/ Range Extender is for installation that require to extend the communication range of wireless devices, this extender works between the main panel and the all the wireless devices that have been installed, It is designed for applications where the distance between the transmitters and the target receiver is beyond the transmission rang.

Wireless alarm Repeaters (signal transfer)is adopt MCU and auto-code. It can transfer maximum 80pcs different detectors signal. It can solve the signal receiving problem at some place where signal can not be received well. It is designed for a wide range of residential, factory, store, garage and so on that require increased RF range.

Installation:

Connect power,unzip double antenna.
Clear code:Press code key 3 seconds→ LED twinkle and then extinguish → let slip key → Clear code is OK
Code: Press code key → LED light twinkle → let slip key → Activate the detector → LED extinguish → Code is OK
Repeat above step to code more detectors with one signal repeater.

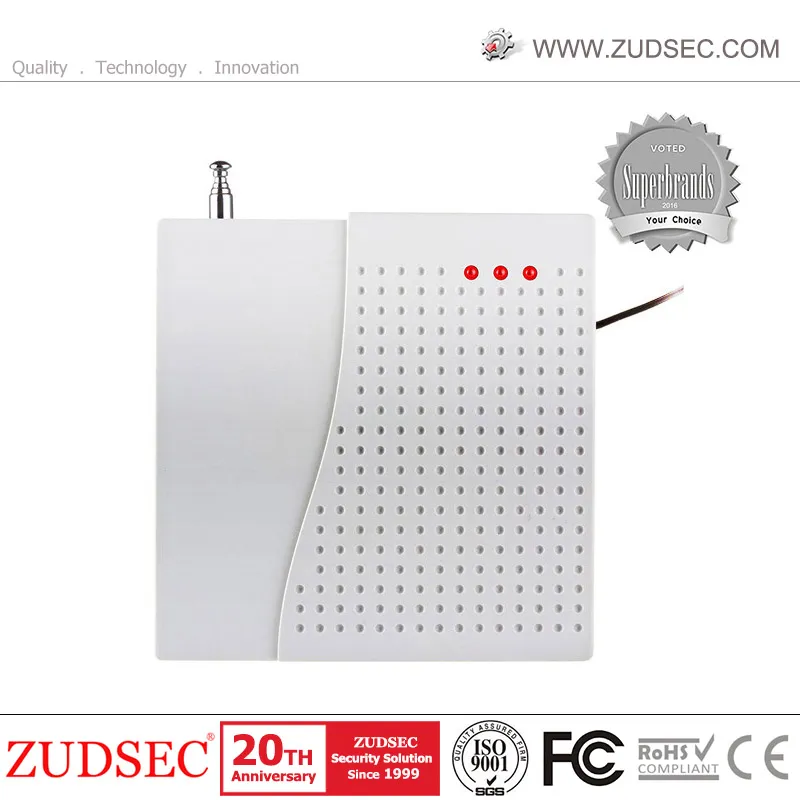

Function Indicator Light: Transmitting indicator light is on the middle, Code Key LED is on the left, Power supply LED is on the right.

It is used with Wireless Control Panel (Wireless Alarm Kits) and PIR detector/door sensor.

Features:
It provides ideal cost-effective solutions for the installation that require to extend the communication range of wireless devices.
- Extends communication range between transmitters and their target receiver, reduces labor costs, saves installation time.
- Compact and easily installed.
- Receives alarm, status and control messages from RF devices, and repeats these messages to the control panel via the primary receiver.
- Eliminates the need to upgrade to a control panel that support two receivers

Wireless Range Extender Signal Receive Transfer Repeater

Wireless Range Extender Signal Receive Transfer Repeater

Specifications

Power Supply:DC12V, 150mA~180Ma
Oscillation resistance: 1.5M~4.7M
Transmit distance:noninterference <=500m (In open place)
Widely use in encode IC: 2262,2264,2260,1527,2240...etc.
MAX items: upt to learn 80pcs
Wireless Frequency:315/433MHZ(Customized is optional)
Receiving time: 3s( NOt transmitting signal when it received)
Transmitting time: 3~10s (Not receiving signal when it transmitted)
Operating Temperature:-25ºC~+55ºC
Product size: 12×12×5CM; Power size: 8*5*6CM; Weight: 0.4kg/kit;
