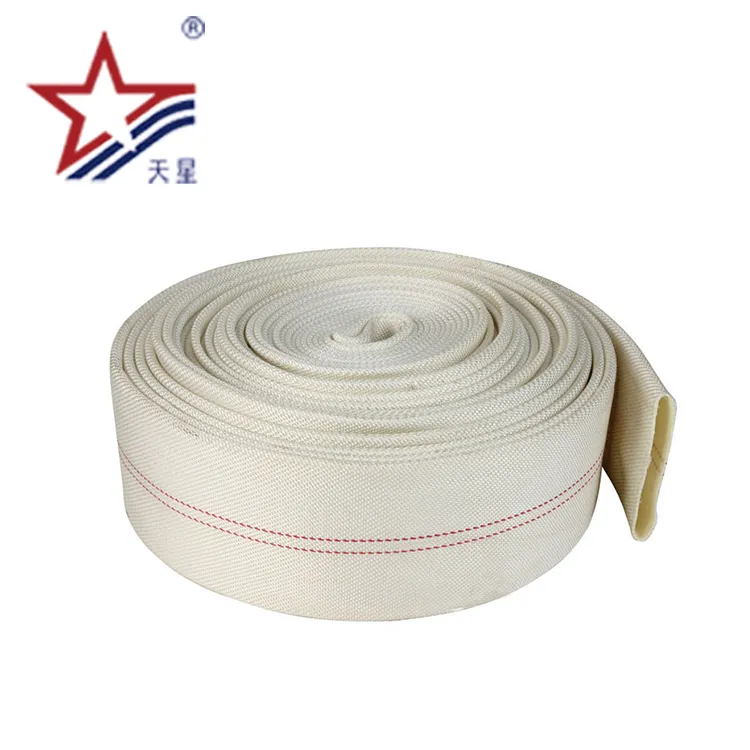

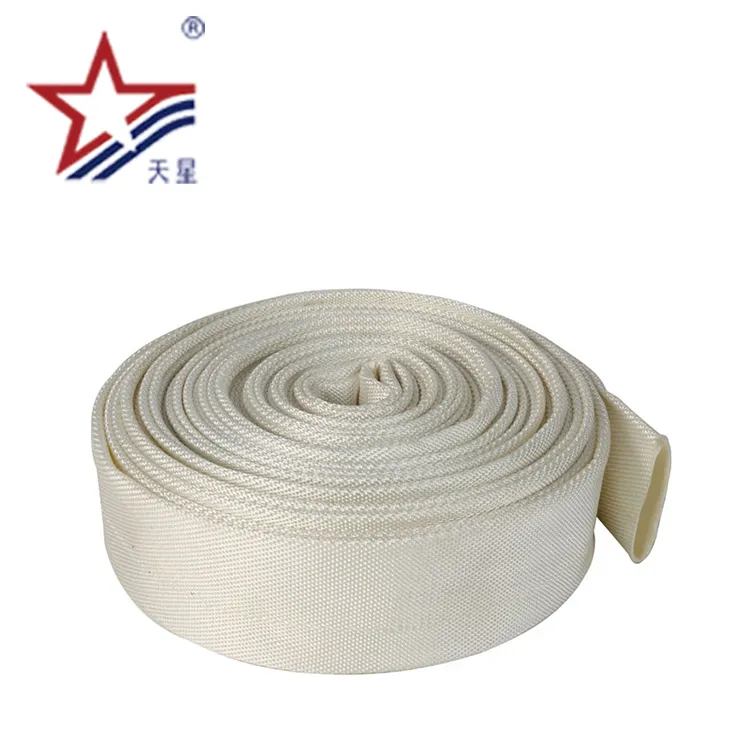

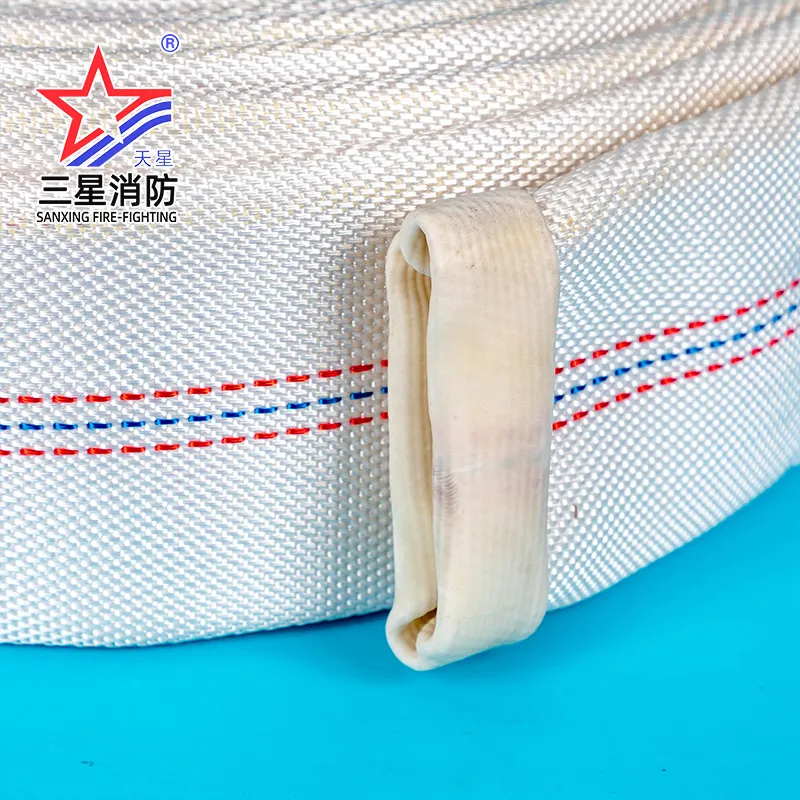

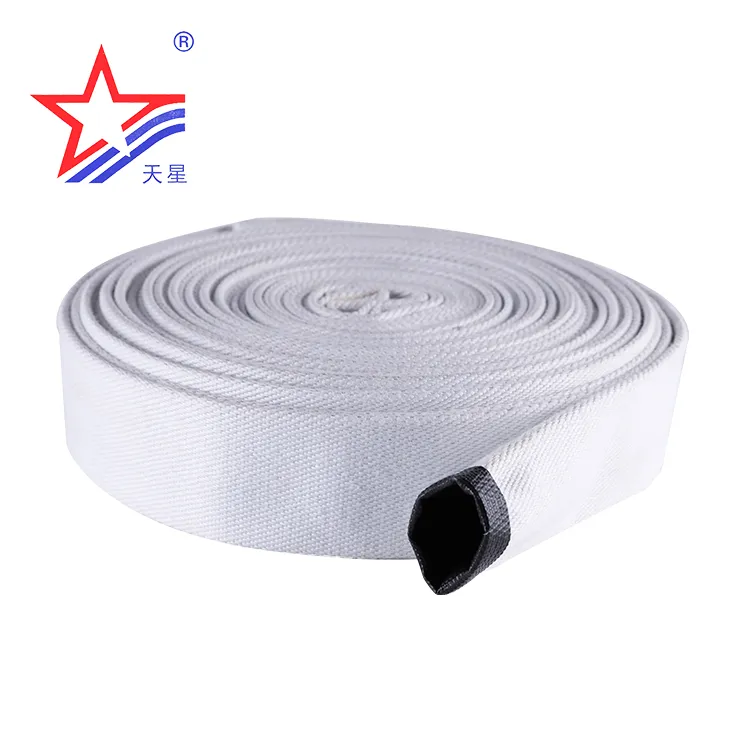

13bar 51mm 2" PVC Fire Hose
canvas fire hoseTechnical parameter1)The lining of fire hose is PVC, Rubber or Copy Rubber . And the jacket of fire fighting hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).2)There are special adhesive ( solid or liquid)between the jacket and the hose. T......
Send Inquiry
Product Description
canvas fire hose
Technical parameter
1)The lining of fire hose is PVC, Rubber or Copy Rubber . And the jacket of fire fighting hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The canvas hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) We supply different color lining of fire hose : blue, black, transparent, etc or according to your requirement
6) We supply different length of firehose : 10m - 30m or according to your requirement
7)The fire hose is packed by poly bag and cartons.
8)The quality of fire hose is guranteed by CCCF, ISO9001:2008
9)The hose use in fire fighting or agriculture
10) Packing by bags or cartonsTechnical parameter
1)The lining of fire hose is PVC, Rubber or Copy Rubber . And the jacket of fire fighting hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The canvas hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) We supply different color lining of fire hose : blue, black, transparent, etc or according to your requirement
6) We supply different length of firehose : 10m - 30m or according to your requirement
7)The fire hose is packed by poly bag and cartons.
8)The quality of fire hose is guranteed by CCCF, ISO9001:2008
9)The hose use in fire fighting or agriculture
10) Packing by bags or cartons
Technical parameter
1)The lining of fire hose is PVC, Rubber or Copy Rubber . And the jacket of fire fighting hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The canvas hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) We supply different color lining of fire hose : blue, black, transparent, etc or according to your requirement
6) We supply different length of firehose : 10m - 30m or according to your requirement
7)The fire hose is packed by poly bag and cartons.
8)The quality of fire hose is guranteed by CCCF, ISO9001:2008
9)The hose use in fire fighting or agriculture
10) Packing by bags or cartonsTechnical parameter
1)The lining of fire hose is PVC, Rubber or Copy Rubber . And the jacket of fire fighting hose is woven by high intensity of polyester filament or polyester short-fiber( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The canvas hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) We supply different color lining of fire hose : blue, black, transparent, etc or according to your requirement
6) We supply different length of firehose : 10m - 30m or according to your requirement
7)The fire hose is packed by poly bag and cartons.
8)The quality of fire hose is guranteed by CCCF, ISO9001:2008
9)The hose use in fire fighting or agriculture
10) Packing by bags or cartons
| Diameter (Inch/mm) | Working Pressure (MPa/BAR/PSI) | Testing Pressure (MPa/BAR/PSI) | Bursting Pressure (MPa/BAR/PSI) | Length (M/FEET) |
| 1 25 | 0.8/ 8 /120 1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300 | 1.2/12/180 1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450 | 2.4/24/350 3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900 | 10 15 20 25 30 |
| 1-1/2 40 | ||||
| 2 50 | ||||
| 2-1/2 65 | ||||
| 3 80 | ||||
| 3-1/2 90 | ||||
| 4 100 | ||||
| 4-1/2 115 | ||||
| 5 125 | ||||
| 5-1/2 140 | ||||
| 6 150 |
