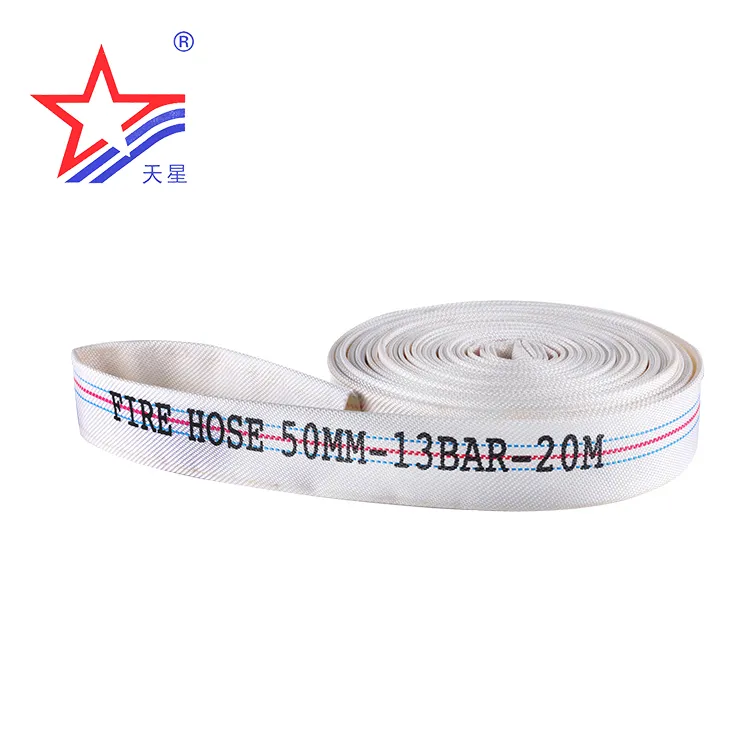

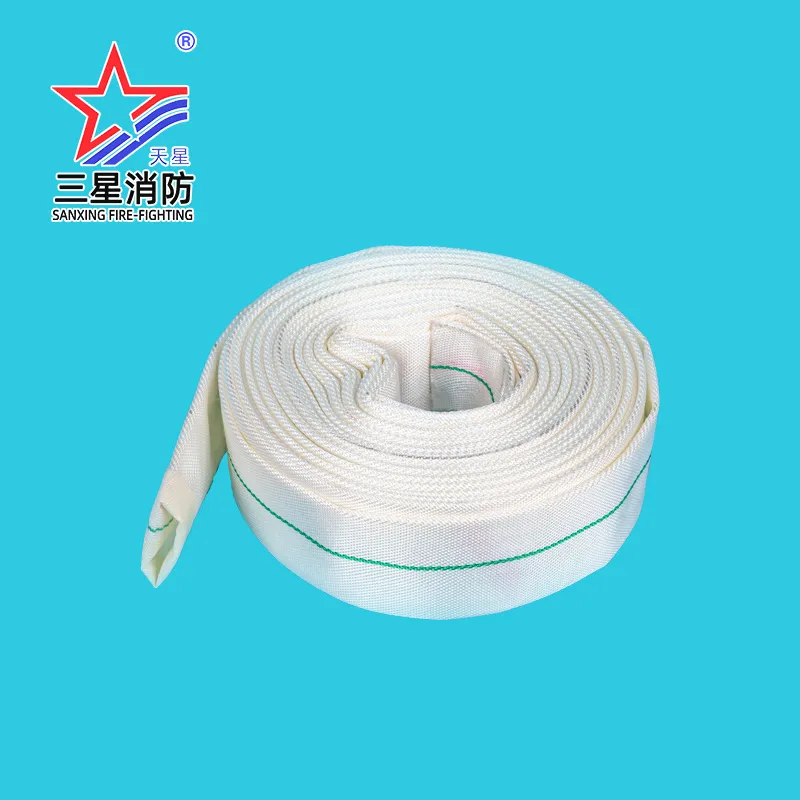

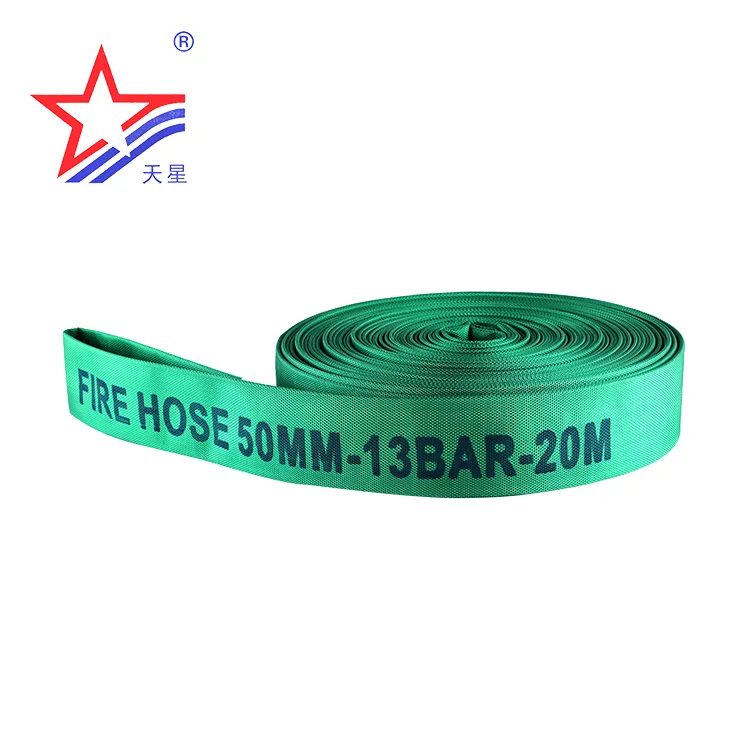

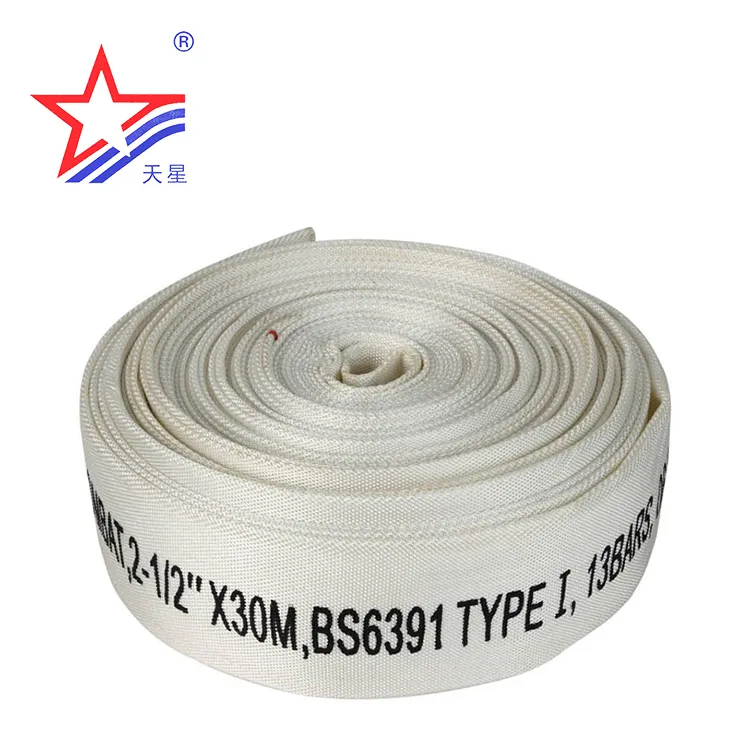

PVC Fire Hose for Fire Fighting 13bar
FIRE HOSETechnical parameter 1)The lining of fire hose : PVC The jacket of fire hose : high intensity of polyester filament ( twill/plain ).2)There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance 3) The f......
Send Inquiry
Product Description
Technical parameter

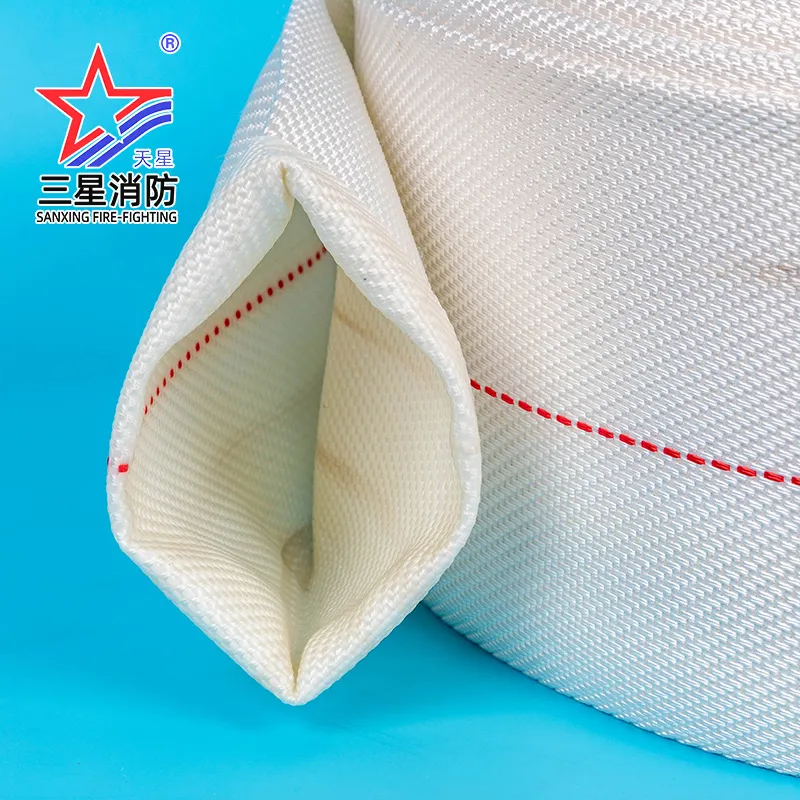

1)The lining of fire hose : PVC
The jacket of fire hose : high intensity of polyester filament ( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) The color of fire hose : white, red, etc or according to your requirement
6) The length of fire hose : 10m - 30m, or according to your requirement
7)The packing of fire hose: woven pp bag or carton.
8)The certificate of fire hose: CCCF, ISO9001:2008, CE(EN14540:2014)
9)The usage of fire hose: irrigation or agriculture
Technical Requirement:Diameter (Inch/mm) | Working Pressure (MPa/BAR/PSI) | Testing Pressure (MPa/BAR/PSI) | Bursting Pressure (MPa/BAR/PSI) | Length (M) |
1 inch / 25mm | 0.8mpa / 8bar / 120psi 1.0mpa / 10bar / 150psi 1.3mpa / 13bar / 195psi 1.6mpa / 16bar / 240psi 2.0mpa / 20bar / 300psi | 1.2mpa / 12bar / 180psi 1.5mpa / 15bar / 220psi 2.0mpa / 20bar / 300psi 2.4mpa / 24bar / 360psi 3.0mpa / 30bar / 450psi | 2.4mpa / 24bar / 350psi 3.0mpa / 30bar / 450psi 3.9mpa / 39bar / 580psi 4.8mpa / 48bar / 720psi 6.0mpa / 60bar / 900psi | 0-30m |
1-1/2 inch / 40mm | ||||
2 inch / 50mm | ||||
2-1/2 inch / 65mm | ||||
3 inch / 80mm | ||||
| 3-1/2 inch / 90mm | ||||
| 4 inch / 100mm | ||||
| 4-1/2 inch / 115mm | ||||
| 5 inch / 125mm | ||||
6 inch / 150mm | ||||
8 inch / 200mm |
