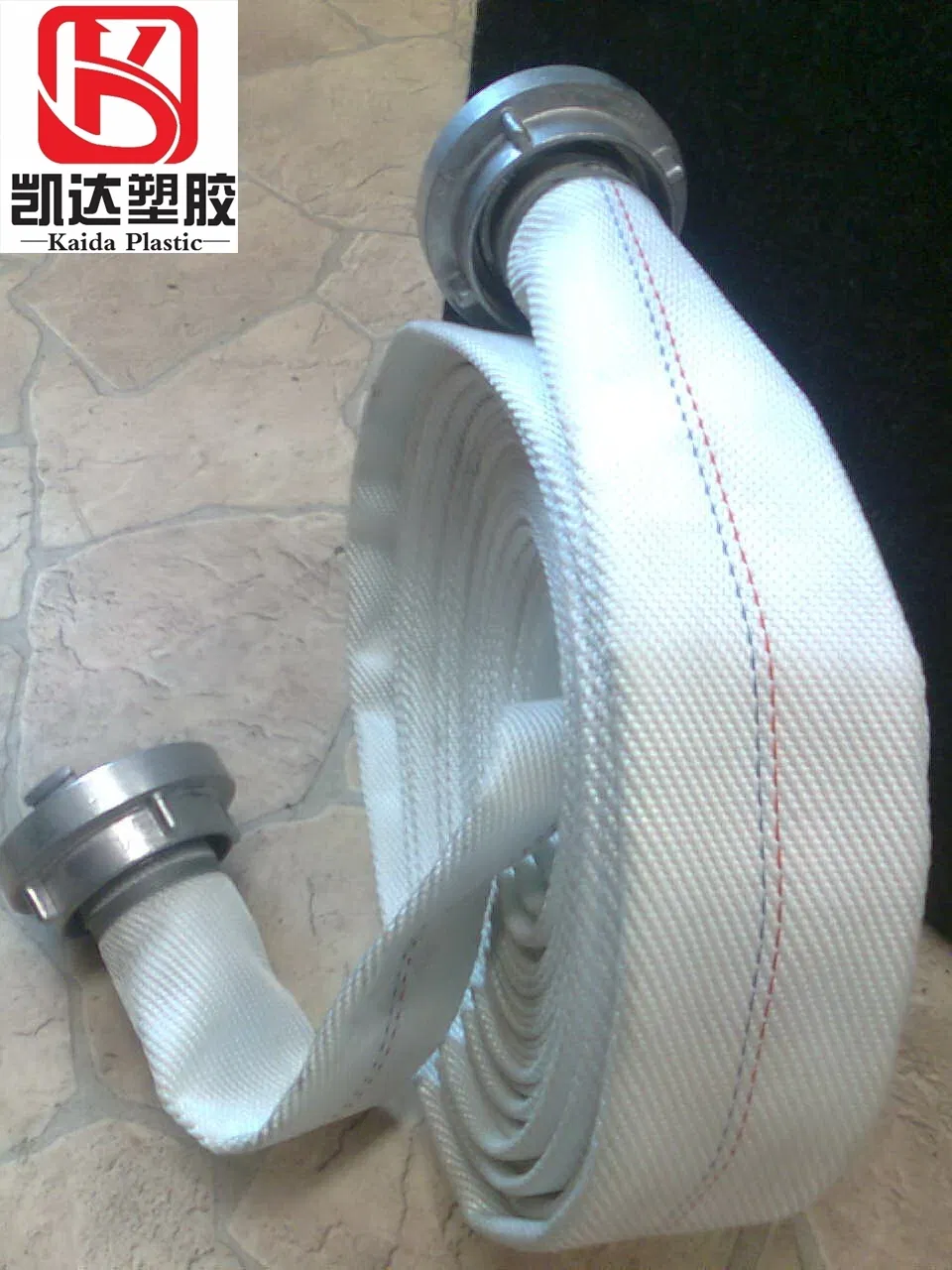

PVC Fire Hose with Storz /British/Machino Hose Coupling
FIRE FIGHTING HOSE Outer Jacket :100% high tenacity polyester yarn ,twill weave . The jacket included single jacket and double jacket. Jacket colour usually white one, red/yellow/blue is rich colourful and more expensive.Inner Lining :The lining is made of EPDM/PVC/RUBBER/PU . resistant to Ozone and......
Send Inquiry
Product Description
FIRE FIGHTING HOSE
Outer Jacket :100% high tenacity polyester yarn ,twill weave . The jacket included single jacket and double jacket. Jacket colour usually white one, red/yellow/blue is rich colourful and more expensive.
Inner Lining :The lining is made of EPDM/PVC/RUBBER/PU . resistant to Ozone and to external contact with oil products . the lining guarantees a smooth surface and low friction loss . Inner colour we have white/black/red/transparent/yellow/orange/green/blue.
Characteristics:
Produced with very low twist . good abrasion resistance and long service life ,external reinforce to oil ,fuel and chemical products . low friction loss ageing and Ozone resistant -weather resistant .
Lightweight and flexible -Kink resistant .
Applications :
Municipal fire brigades,
Industrial fire brigades,
Agriculture and irrigation ,
Shipboard &marine industry ,
Construction sites &general industrial use .

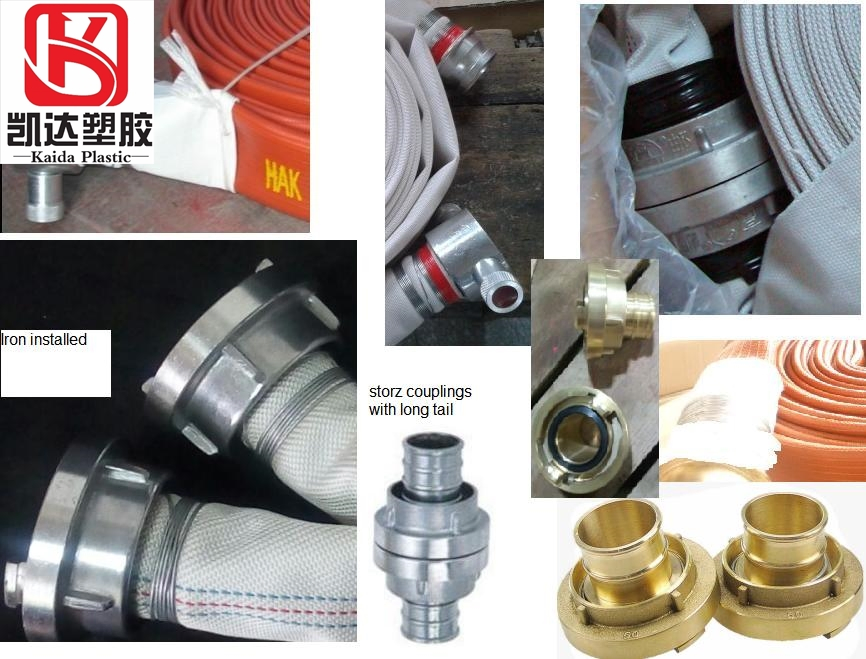

Coupling :Storz hose couplings/british couplings/NST/NPT/IPT thread American hose couplings or all international coupling types wired -in for safety &security ,with 1.6mm stainless steel wire .
with materials Aluminum, casted(Brass, forged Storz coupling is available)
Standards:BS6391 type 1 , EN14540
Specification data
Outer Jacket :100% high tenacity polyester yarn ,twill weave . The jacket included single jacket and double jacket. Jacket colour usually white one, red/yellow/blue is rich colourful and more expensive.
Inner Lining :The lining is made of EPDM/PVC/RUBBER/PU . resistant to Ozone and to external contact with oil products . the lining guarantees a smooth surface and low friction loss . Inner colour we have white/black/red/transparent/yellow/orange/green/blue.
Characteristics:
Produced with very low twist . good abrasion resistance and long service life ,external reinforce to oil ,fuel and chemical products . low friction loss ageing and Ozone resistant -weather resistant .
Lightweight and flexible -Kink resistant .
Applications :
Municipal fire brigades,
Industrial fire brigades,
Agriculture and irrigation ,
Shipboard &marine industry ,
Construction sites &general industrial use .
Coupling :Storz hose couplings/british couplings/NST/NPT/IPT thread American hose couplings or all international coupling types wired -in for safety &security ,with 1.6mm stainless steel wire .
with materials Aluminum, casted(Brass, forged Storz coupling is available)
Standards:BS6391 type 1 , EN14540
Specification data
| Internal diameter | Working pressure | Burst pressure | Standard length | ||
| MM | Inch | Bar | Bar | Meters | Feet |
| 19 | 3/4 | 10-20 | 30-60 | ||
| 25 | 1 | 10-20 | 30-60 | 15/18/20/25/30 | 50/60/65/80/100 |
| 38 | 1 1/2 | 10-20 | 30-60 | ||
| 45 | 1 3/4 | 10-20 | 30-60 | ||
| 52 | 2 | 8-20 | 24-60 | ||
| 65 | 2 1/2 | 8-20 | 24-60 | ||
| 70 | 2 3/4 | 8-16 | 24-48 | ||
| 75 | 3 | 8-16 | 24-48 | ||
| 90 | 3 1/2 | 8-16 | 24-48 | ||
| 100 | 4 | 8-16 | 24-48 | ||
| 110 | 4 1/3 | 8-16 | 24-48 | ||
| 125 | 5 | 6-13 | 18-39 | ||
| 150 | 6 | 6-13 | 18-39 | ||
| 200 | 8 | 6-10 | 18-30 | ||
| 250 | 10 | 6-10 | 18-30 | ||
