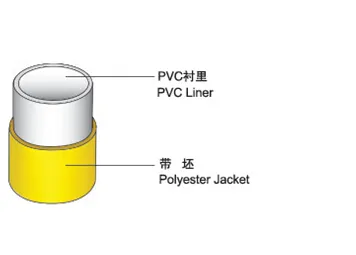

PVC Lining Within Coupling White Fire Hose
Light weight, good elasticity, small flow resitance, easy to wind and roll.DiameterWorking PressureBursting Pressure(inch/mm)(BarMpaPsi)(BarMpaPsi)1"2513-251.3-2.5190-36539-753.9-7.5570-10901-1/4"328-250.8-2.5120-36524-752.4-7.5350-10901-1/2"388-250.8-2.5120-36524-752.4-7.5350-10901-3......
Send Inquiry
Product Description
Light weight, good elasticity, small flow resitance, easy to wind and roll.
| Diameter | Working Pressure | Bursting Pressure | |||||
| (inch/mm) | (Bar | Mpa | Psi) | (Bar | Mpa | Psi) | |
| 1" | 25 | 13-25 | 1.3-2.5 | 190-365 | 39-75 | 3.9-7.5 | 570-1090 |
| 1-1/4" | 32 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-1/2" | 38 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-3/4" | 45 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2" | 52 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2-1/2" | 64 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090(CCCF certification) |
| 2-3/4" | 70 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 3" | 75 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090(CCCF certification) |
| 4" | 102 | 8-16 | 0.8-1.6 | 120-235 | 24-48 | 2.4-4.8 | 350-700 |
| 5" | 127 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
| 6" | 152 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
