Zyfire 3inch High Pressure Wear Resistance NBR Agriculture Slurry Irrigation Water Hose

Product Description

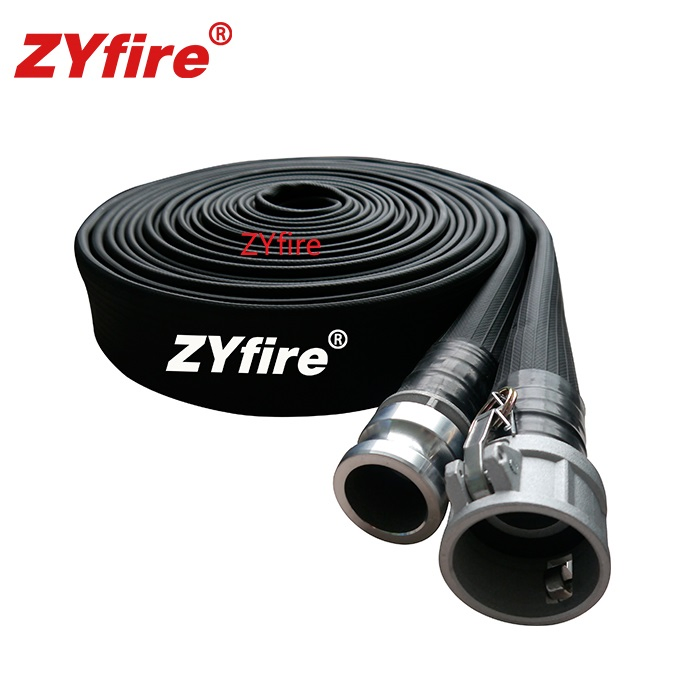

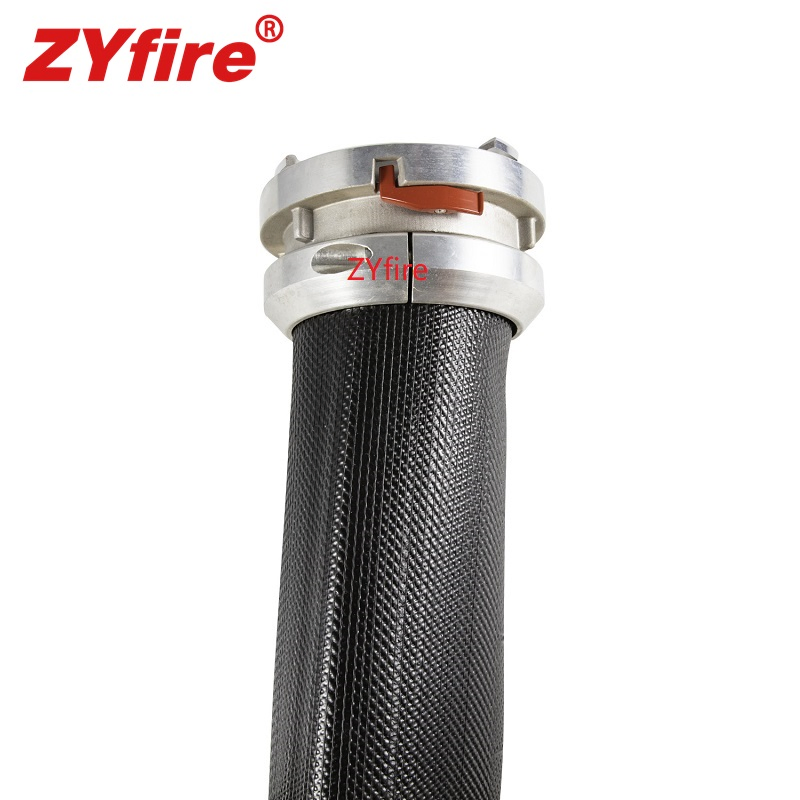

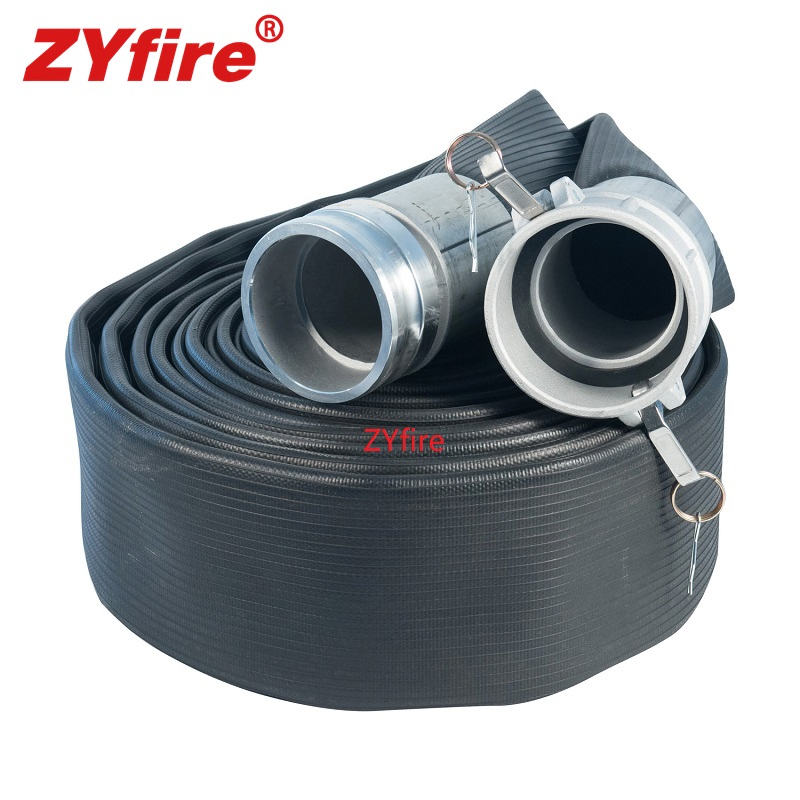

Water Irrigation Hose with CE Coupling

Irrigator

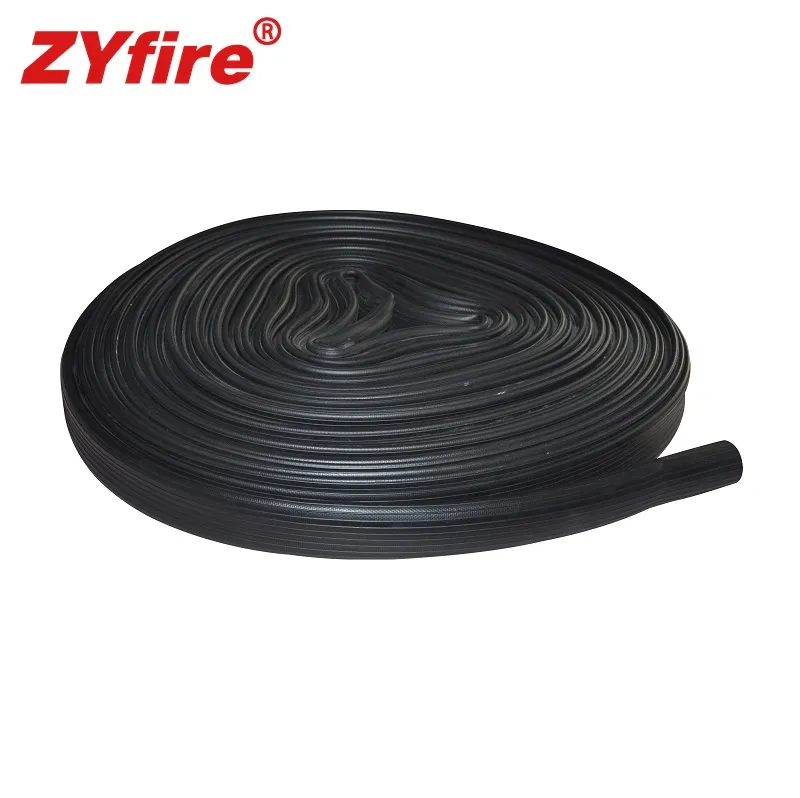

Through-the-weave NBR Hose
Cover and Lining: Nitrile Rubber, Ribbed cover or smooth cover.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Irrigation, Sludge discharge, liquid fertilizers.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).

I.D.		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight		Tensile Strength
inch	mm	mm	inch	mm	Bar/psi	Bar/psi	Kg/m	lbs/ft	kgs	lbs
3/4"	20.0	+1.6	0.09	2.3	33/500	100/1500	0.14	0.21	1900	4200
1"	25.4	+1.6	0.10	2.5	33/500	100/1500	0.18	0.28	2300	5100
1 1/2"	38.0	+1.6	0.09	2.5	18/300	55/800	0.20	0.30	2900	6400
2"	51.0	+2.0	0.09	2.6	15/220	45/650	0.25	0.60	3800	8350
2 1/2"	65.0	+2.0	0.09	2.6	15/220	45/650	0.35	0.53	4200	9200
3"	76.0	+2.0	0.12	3.2	13/200	39/600	0.64	0.95	8100	17800
4"	102.0	+2.5	0.13	3.5	13/200	39/600	0.90	1.35	10200	22450
5"	127.0	+3.0	0.13	3.5	13/200	39/600	1.14	1.70	12200	26850
6"	152.0	+3.0	0.12	3.6	13/200	39/600	1.86	2.70	16100	35400
8"	204.0	+4.0	0.17	4.0	13/200	39/600	2.48	3.70	37000	81500
10"	254.0	+5.0	0.17	4.2	10/150	30/450	3.02	4.5	45400	100000
12"	305.0	+5.0	0.18	4.4	10/150	30/450	3.75	5.6	56300	124000
