Product Description

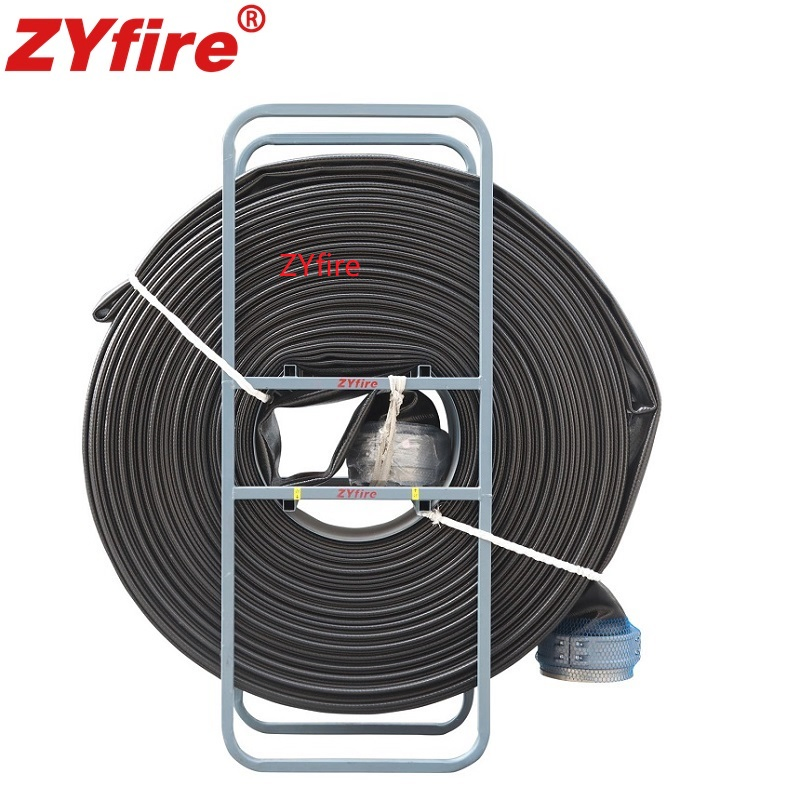

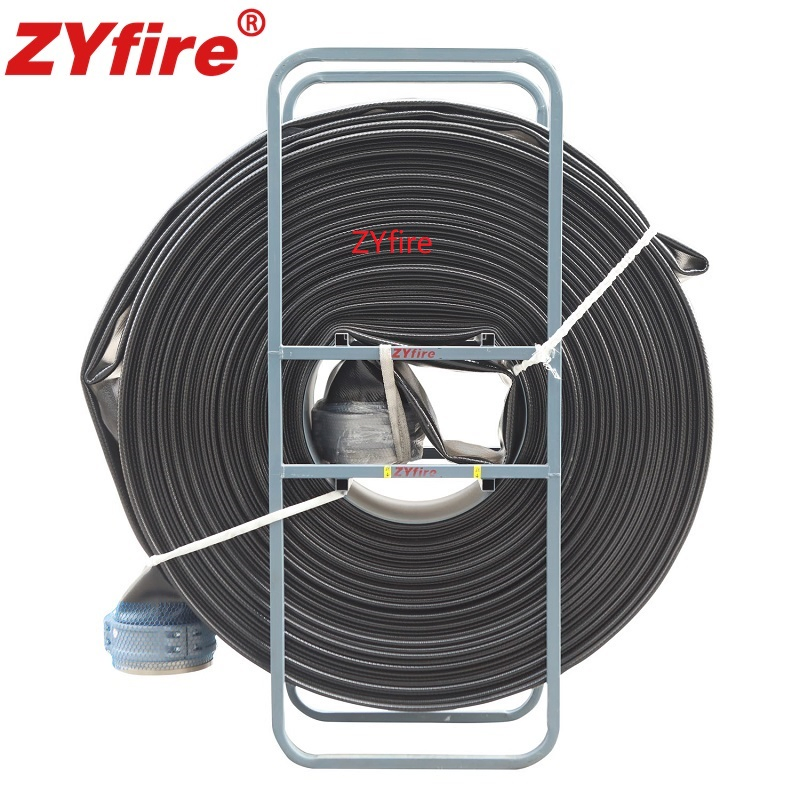

Black TPU Lining TPU Cover Water Hose
Fracflo Hose Plus
Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50ºC to 80ºC (-58ºF to +178ºF)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton Rubber
Hose Technical Specification:
Fracflo Hose Plus
Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50ºC to 80ºC (-58ºF to +178ºF)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)
Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton Rubber
Hose Technical Specification:
| I.D. | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight |
| inch | Approx. inch | psi | psi | Approx. Lbs/ft |
| 4" | 0.138 | ≥250 | ≥750 | 0.94 |
| 6" | 0.150 | ≥250 | ≥750 | 1.41 |
| 8" | 0.177 | ≥300 | ≥900 | 2.28 |
| 10" | 0.197 | ≥300 | ≥900 | 3.75 |
| 12" | 0.228 | ≥200 | ≥600 | 4.3 |
| 14" | 0.205 | ≥150 | ≥450 | 4.96 |
| 16" | 0.205 | ≥150 | ≥450 | 5.1 |
