Fast Response Fire Sprinkler, Fire Fighting , Sprinkler System, Fire Sprinkler Head
Min.Order Quantity:2000 Piece/PiecesSupply Ability:300000PCS/MonthPort:xiamenPayment Terms:L/C,T/T Quick Details1.Place of Origin: Fujian, China (Mainland)2.Brand Name: OEM3.Working pressure:1.2MPa (2.4 Bar)Packaging & DeliveryPackaging Details:carton packing: 37.5cmx20.5cmx29cm 200 pieces in on......
Send Inquiry
Product Description
Min.Order Quantity: | 2000 Piece/Pieces |
|---|---|
| Supply Ability: | 300000PCS/Month |
| Port: | xiamen |
| Payment Terms: | L/C,T/T |
Quick Details
1.Place of Origin: Fujian, China (Mainland)
2.Brand Name: OEM
3.Working pressure:1.2MPa (2.4 Bar)
Packaging & Delivery

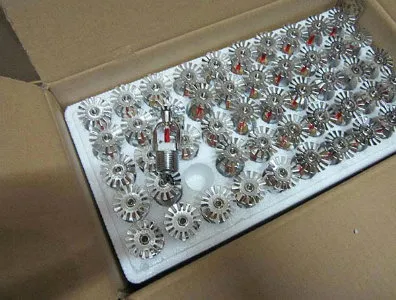

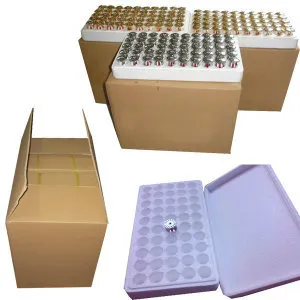

Packaging Details: | carton packing: 37.5cmx20.5cmx29cm 200 pieces in one carton packing. 10.6KG weight each one carton |
|---|---|
| Delivery Detail: | 10,000 pieces can be ready for delivery within one week |
Main Parameters:
Technical parameters | |||
Type | Nominal diameter(mm) | Connecting thread | Flow coefficient |
T-ZSTP Conventional sprinkler | DN15 | R1/2 | 80±4 |
DN20 | R3/4 | 115±6 | |
T-ZSTX Pendent sprinkler | DN15 | R1/2 | 80±4 |
DN20 | R3/4 | 115±6 | |
T-ZSTZ Upright sprinkler | DN15 | R1/2 | 80±4 |
DN20 | R3/4 | 115±6 | |
T-ZSTBS Sidewall sprinkler | DN15 | R1/2 | 80±4 |
DN20 | R3/4 | 115±6 | |
ZSTDY Concealed sprinkler | DN15 | R1/2 | 80±4 |
DN20 | R3/4 | 115±6 | |
Technical parameters | ||
Rated operating temperature | Max.ambient temperature | Glass bulb colour |
57°C | 27°C | Orange |
68°C | 38°C | Red |
79°C | 49°C | Yellow |
93°C | 63°C | Green |
141°C | 111°C | Blue |
182°C | 152°C | Purple |
