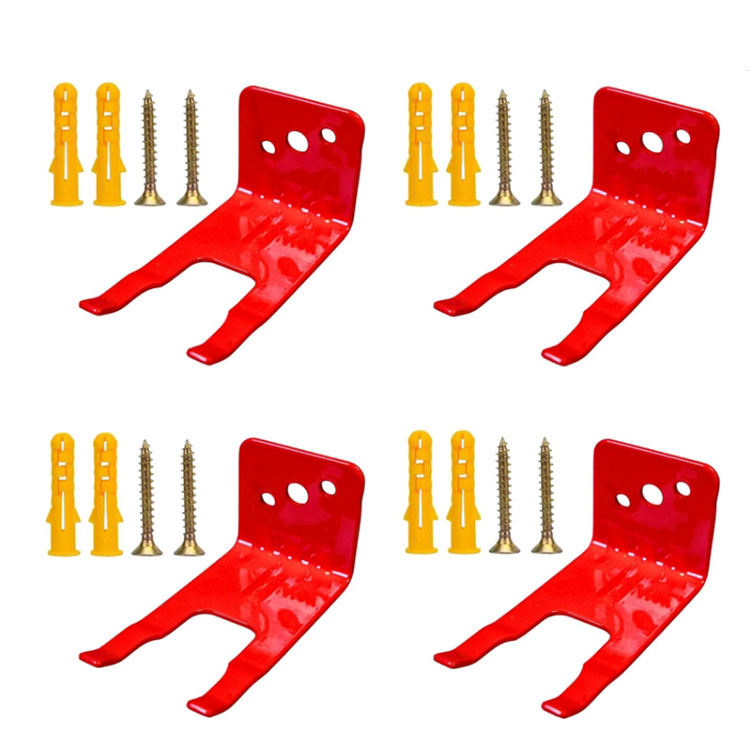

What is the Correct Height for Mounting a Fire Extinguisher Hook Bracket on a Wall
2026-05-20
Mounting a Fire Extinguisher Hook Bracket at the correct height is a critical safety requirement that directly impacts emergency response times. Improper placement can lead to code violations, failed inspections, or dangerous delays during a fire. Huimei, a leading manufacturer of fire safety mounting equipment, provides engineering-grade brackets designed to meet NFPA, OSHA, and local fire codes. Below is a professional guide to help you install your Fire Extinguisher Hook Bracket accurately and safely.
Standard Mounting Heights for Fire Extinguisher Hook Bracket
The National Fire Protection Association (NFPA 10) and Occupational Safety and Health Administration (OSHA) specify clear height requirements based on extinguisher weight.
| Fire Extinguisher Gross Weight | Handle Height from Finished Floor | Recommended Huimei Fire Extinguisher Hook Bracket Model |
|---|---|---|
| Less than 40 lbs (18.14 kg) | 3.5 to 5 feet (1.07 to 1.52 m) | Huimei HMB-100 Standard Hook Bracket |
| 40 lbs or more (18.14+ kg) | 3 to 4 feet (0.91 to 1.22 m) | Huimei HMB-200 Heavy-Duty Bracket |
| Wheeled fire extinguishers | Floor level with visible signage | Huimei HMB-300 Floor Mount Cradle |
Critical Factors That Affect Mounting Height
-
User accessibility: The handle must be reachable by adults of average height without bending, stretching, or climbing.
-
Obstruction clearance: No furniture, doors, swinging equipment, or stored items may block access to the Fire Extinguisher Hook Bracket.
-
Signage placement: A visible identification sign must be mounted directly above the bracket, typically 6 to 8 inches higher.
-
Local amendments: Some jurisdictions (e.g., Chicago, New York City) require exactly 4 feet for extinguishers under 40 lbs.
-
Surface condition: Uneven walls require shimming or adjustable backplates, such as those offered by Huimei, to maintain correct effective height.
Huimei brackets come with pre-marked drilling templates and integrated leveling guides to help installers achieve precise compliance on first attempt.
Fire Extinguisher Hook Bracket FAQ
Q1: Can I mount a Fire Extinguisher Hook Bracket higher than 5 feet if the facility has no children or public access?
A1: No. NFPA 10 explicitly states that for fire extinguishers with a total gross weight under 40 lbs, the carrying handle height shall not exceed 5 feet (1.52 meters) above the finished floor. This rule applies regardless of occupancy type, including warehouses, mechanical rooms, or restricted industrial zones. Exceeding 5 feet creates a dangerous delay during a fire because even tall individuals must reach upward, losing stability and time. Fire inspectors will cite this as a violation even if no children are present. Huimei offers adjustable brackets (Model HMB-105) that lock precisely between 3.5 and 5 feet, eliminating guesswork. If your wall height requires a higher mount for visibility, install a secondary sign or lower the extinguisher instead.
Q2: How do I adjust the height for a Fire Extinguisher Hook Bracket when mounting on uneven surfaces like concrete block walls or metal studs?
A2: Uneven surfaces require a two-step correction process. First, use plastic or metal shims (included with Huimei HMB-100 Pro Kit) behind the bracket to eliminate rocking. Second, measure the height from the finished floor to the lowest point of the bracket’s hook curve, not the top mounting hole. For concrete block walls, Huimei recommends using a laser level and a stud finder with deep-scan mode before drilling any holes. If the wall slope exceeds 2 degrees horizontally, use Huimei Model HMA-03 Adjustable Backplate, which allows ±5 degrees of vertical and horizontal correction without changing the effective handle height. For metal studs, never mount directly into hollow metal without toggle bolts or backing plates, as the Fire Extinguisher Hook Bracket may pull out under the extinguisher’s weight. Huimei provides specific fastener charts for drywall, concrete, steel, and wood substrates with every bracket order.
Q3: What is the minimum ceiling clearance required above a Fire Extinguisher Hook Bracket?
A3: You must maintain at least 6 inches (15.24 cm) of clear space above the top of the mounted fire extinguisher handle. This clearance allows a user to lift the extinguisher vertically out of the hook bracket without obstruction. Low-profile extinguishers (e.g., 2.5 lb kitchen models) may reduce clearance to 4 inches, but Huimei strongly recommends 6 inches as a universal safe standard. If the space above is blocked by suspended ceilings, pipes, ductwork, or shelving, the extinguisher cannot be removed quickly. In an emergency, a worker may waste 5–10 seconds trying to twist or slide the extinguisher sideways, which often damages the Fire Extinguisher Hook Bracket or the valve. Huimei includes a clearance inspection checklist inside every product manual to help installers avoid this hidden but common failure point. If your ceiling is lower than 7 feet total, consider a Huimei side-mount or recessed bracket.
Professional Summary Table for Installation Verification
| Verification Step | Target Condition | Huimei Recommended Tool |
|---|---|---|
| Handle height (≤40 lbs) | 3.5 – 5.0 ft | Huimei Laser Measure HML-01 |
| Handle height (>40 lbs) | 3.0 – 4.0 ft | Huimei Laser Measure HML-01 |
| Vertical plumb | Within 0.5° | Huimei Magnetic Level HML-02 |
| Clearance above handle | ≥ 6 inches | Steel ruler + visual check |
| Signage position | 6–8 inches above bracket | Huimei Template Card |
| Fastener torque | Per substrate type | Torque wrench (not included) |
