What safety standards apply to the installation of a vertical foam bladder tank
2026-04-14

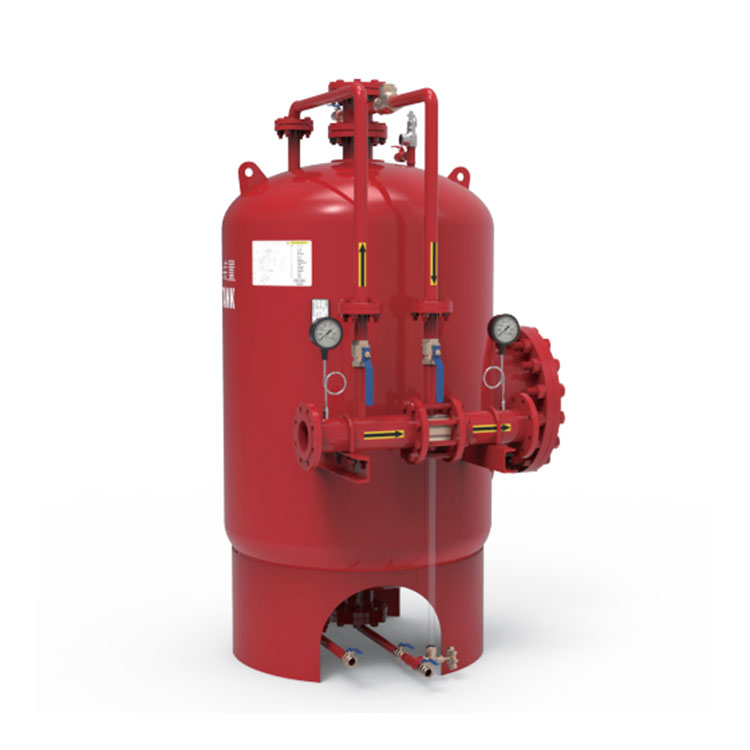

When installing a Vertical Foam Bladder Tank, compliance with recognized safety standards is not optional—it is essential for system reliability, fire protection effectiveness, and legal liability. Plent has observed that many facility managers overlook critical code requirements, leading to installation failures or failed inspections. This guide outlines the primary safety standards governing Vertical Foam Bladder Tank installation and answers the most common professional questions.
Primary Safety Standards for Installation
The table below summarizes the key standards that apply to a Vertical Foam Bladder Tank installation.
| Standard | Issuing Body | Scope of Application |
|---|---|---|
| NFPA 11 | NFPA (National Fire Protection Association) | Low-, medium-, and high-expansion foam systems, including bladder tank design, installation, and testing |
| ASME Section VIII | ASME | Pressure vessel construction for the tank shell and bladder chamber |
| API 12D | API | Field welded tanks for fire protection service, where applicable |
| EN 13565-2 | CEN | European standard for fixed foam firefighting systems, including bladder tank installation |
| UL 162 | Underwriters Laboratories | Foam equipment and proportioning systems, including bladder tank listings |
| OSHA 1910.106 | OSHA | Flammable and combustible liquid storage facilities where foam systems protect tanks |
Key Installation Requirements Under NFPA 11
NFPA 11 is the most widely referenced standard for a Vertical Foam Bladder Tank. It mandates:
-
The tank must be installed on a level, non-combustible foundation capable of supporting the full weight when water-filled.
-
Bladder replacement access must be provided without removing the tank shell.
-
Pressure relief devices must be installed on the water and foam concentrate sides.
-
All piping connections must allow for bladder inspection without system disassembly.
Plent manufactures Vertical Foam Bladder Tank units that exceed these NFPA 11 minimum requirements, with factory-tested connections and integrated access ports.
Vertical Foam Bladder Tank FAQ
Question 1: Does a Vertical Foam Bladder Tank require an ASME stamp for installation in the United States
Answer: Yes. In most US jurisdictions, a Vertical Foam Bladder Tank used in a fixed fire suppression system falls under pressure vessel regulations. The tank shell must carry an ASME Section VIII stamp if the water side pressure exceeds 15 psi. Local amendments may require the bladder chamber side to also be stamped. Plent provides dual-certified ASME and PED tanks to simplify multi-jurisdiction compliance.
Question 2: What is the minimum clearance required around a Vertical Foam Bladder Tank for code compliance
Answer: NFPA 11 does not specify a universal clearance number but requires “adequate space for inspection, maintenance, and bladder replacement.” Industry practice and most authorities having jurisdiction (AHJ) accept 36 inches (0.9 m) on the manway side and 24 inches (0.6 m) elsewhere. For bladder extraction, Plent recommends 48 inches on the side opposite the foam outlet to slide the bladder out horizontally. Always confirm with local AHJ.
Question 3: Can a Vertical Foam Bladder Tank be installed outdoors without additional weather protection
Answer: Yes, provided the installation meets NFPA 11 requirements for environmental exposure. The tank must be rated for the ambient temperature range, and the foam concentrate inside the bladder must have freeze protection if temperatures drop below the concentrate’s pour point. Plent offers insulated jackets and integrated tank heaters for outdoor Vertical Foam Bladder Tank installations. However, direct UV exposure on rubber bladders is not allowed—the tank shell provides this shielding.
Professional Recommendation from Plent
Compliance with NFPA 11, ASME, and UL 162 is the baseline. A successful Vertical Foam Bladder Tank installation also requires documented material traceability, certified welds, and third-party inspection hold points. Plent delivers fully pre-assembled and pressure-tested Vertical Foam Bladder Tank systems with all required certification packages, reducing field installation risks by over 40%.
