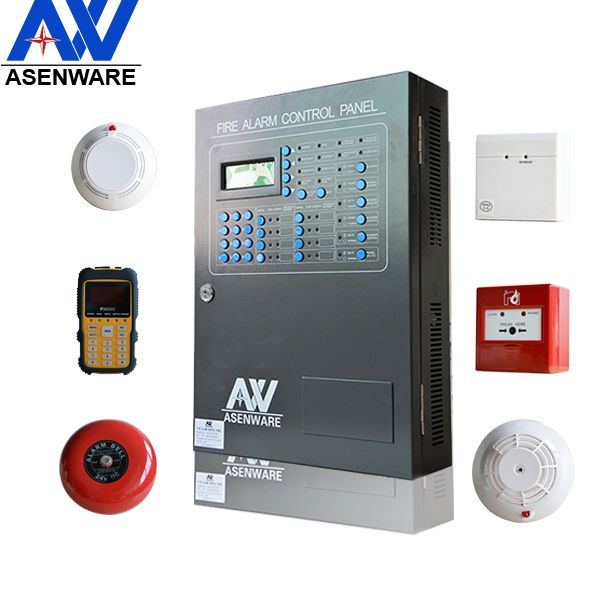

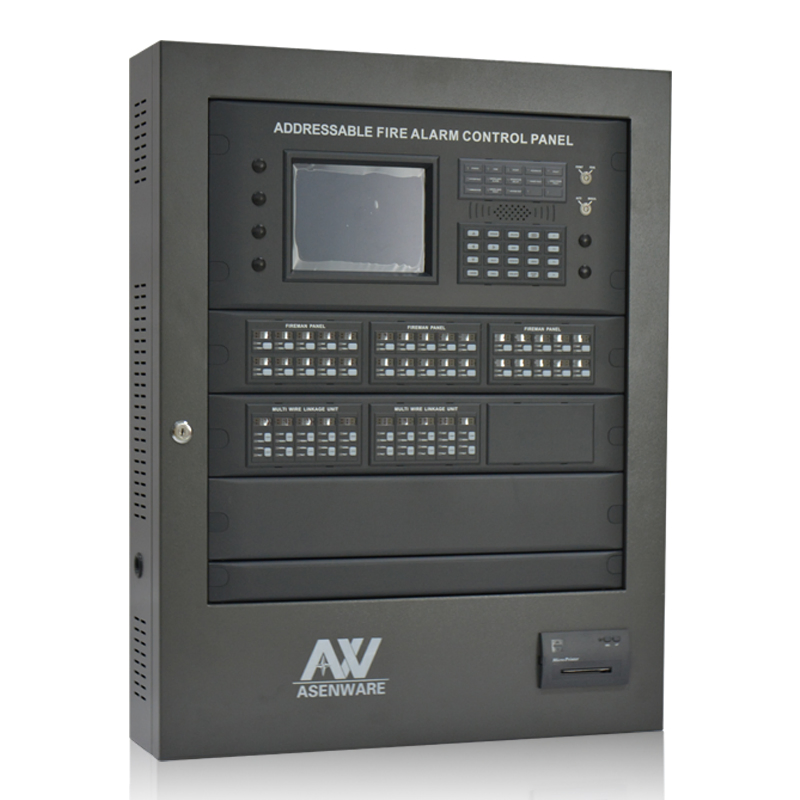

Addressable Fire Alarm Control Panel (AW-AFP2188)

Addressable fire alarm system control panel

 Addressable fire alarm system control panel specification

Addressable fire alarm system control panel feture:

1.AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding)

2.AC input voltage: AC 220V±20%  50Hz

3.AC input power: 120W

4.DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series

5.The 24V DC power has a long-term constant output current of 6A.

6.The 5V DC power has a long-term constant output current of 4A.

7.Circuit bus: two-wire system; total length: ≤1500m

8.Voltage UL of the circuit bus:

9.+20V≤UL≤+26V(when the DC power is operating)

10.+24V≤UL≤+26V(when the AC power is operating)

Addressable fire alarm system control panel parameters

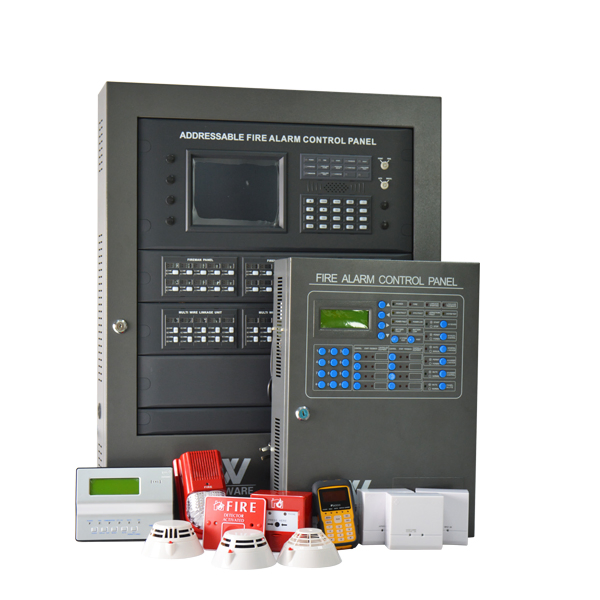

Addressable fire alarm system control panel accessoreis:

1. AW-ASD2188: addressable photoelectric smoke detector

2. AW-ATD2188: addressable heat detector

3. AW-ASH2188: addressable smoke and heat combined detector

4. AW-AMC2188: addressable manual call point

5. AW-ASS2188: addressable hooter/horn

6. AW-AIO2188-IN: addressable input module

7. AW-AIO2188-OUT: addressable out module

8. AW-AIO2188: isolated model

9. AW-GSM100: GSM module

10. AW-CODERF900E: coder for setting address

11. AW-RP2188: repeater

Company

1.Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.

2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service.

3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.

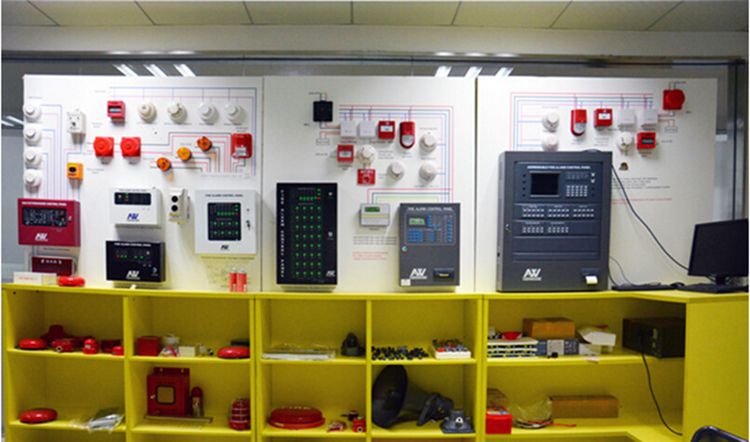

Exhibition room
