ANSORL Flame Proof Smoke Detector Fire AlarmDescription:AS-SD801EX explosion-proof smoke detector is a conventional type detector with relay output, it's compatible with most of fire alarm control panels in the market. AS-SD801EX explosion-proof smoke detector adopts new scattering technology an......
Send Inquiry
Product Description
ANSORL Flame Proof Smoke Detector Fire Alarm
Description:
AS-SD801EX explosion-proof smoke detector is a conventional type detector with relay output, it's compatible with most of fire alarm control panels in the market.
AS-SD801EX explosion-proof smoke detector adopts new scattering technology and imported optoelectronic devices to improve the reliability, stability and consistency of the sensor, and adopts a unique labyrinth design to prevent insects, dust and external light. With novel structure, reliable performance and strong moisture resistance.
AS-SD801EX explosion-proof smoke detector has been fitted with a safety barrier. The safety barrier adopts a resistive and transistor dual electronic switch circuit, which has fast starting speed and can be automatically restored.
When the smoke concentration reaches th preset threshold, the detector indicator lights on, the fire alarm signal will be sent to the main control panel. The detector will be restored only when the system is reset (or power off and then power on).
AS-SD801EX explosion-proof smoke detector is applicable to Zone 1 and Zone 2 of areas with explosion-proof requirement in petroleum and chemical industries.

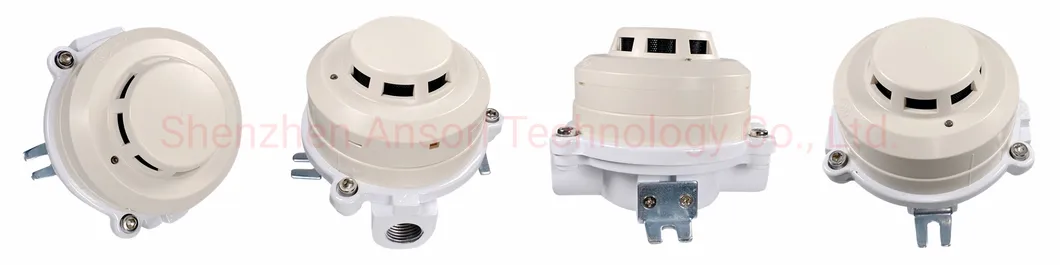

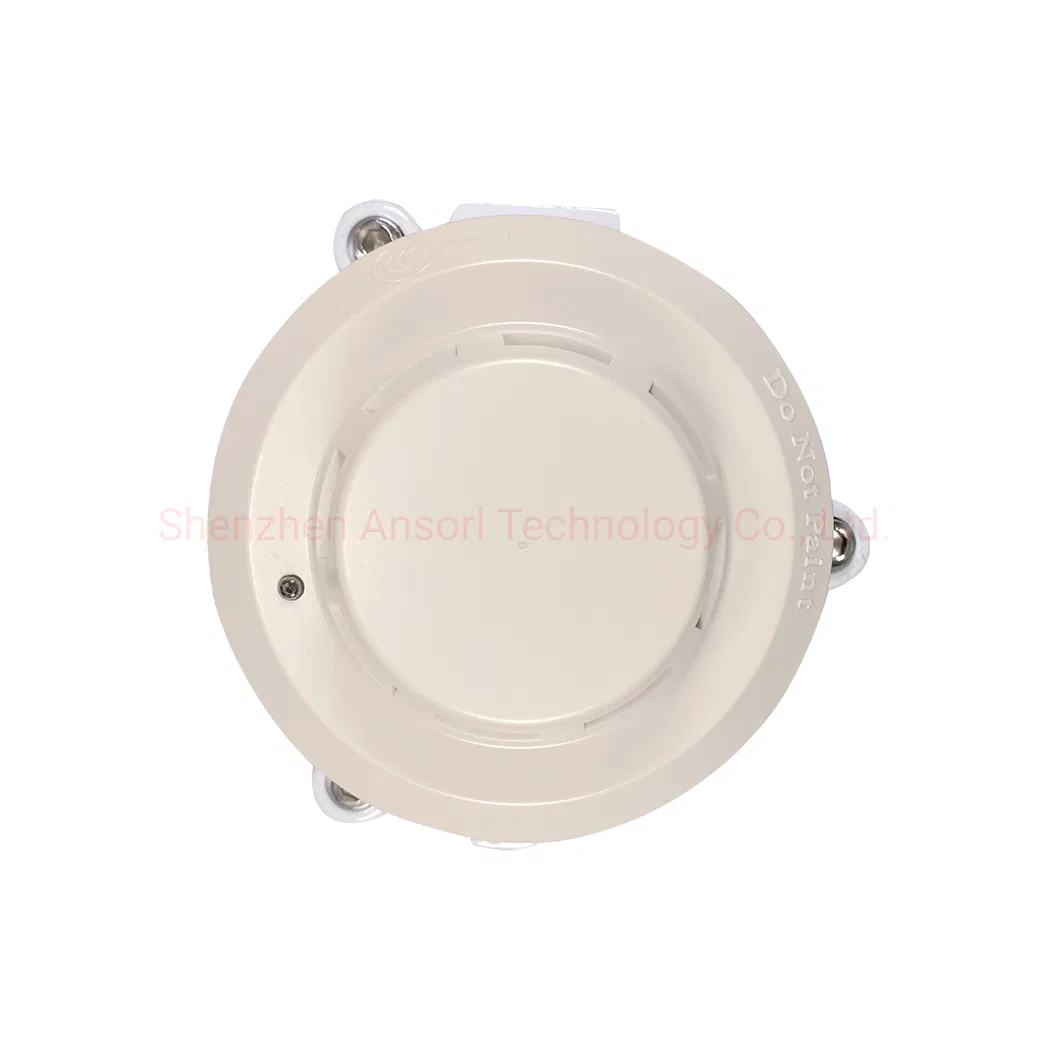

Pictures:
Parameters:
| Product Name | Explosion Proof Smoke Detector |
| Operating Voltage | 24VDC |
| Standby Current | ≤120uA |
| Alarm Current | 10mA≤I≤30mA |
| Indicator | Red LED |
| Power-on Time | ≤10s |
| Atmospheric Pressure | 80~110KPa |
| The Highest Wind Speed | 7.6m/s (1500fpm) |
| Output Type | Relay contact |
| Explosion Proof Mark | Exd (ib) II BT6 CT6 |
| Dimention | About 100mm x 150mm |
| Operating Temperature | -10 to +55 celsius degree |
| Operating Humidity | ≤95% no condensing |
| Usage | Fire detection, smoke detection |
| Application | Factory, warehouse, pharmaceutical plant, chemical plant etc. |
Dimension:
Installation:
Wiring:
Packing:
Related Models:
* AS-HD802EX: Explosion Proof Heat Detector
* AS-SHD803EX: Explosion Proof Smoke and Heat Combined Detector
* AS-MCP01EX: Explosion Proof Manual Call Point
* AS-SG01EX: Explosion Proof Strobe Horn
* AS-E301-UV: Explosion Proof Ultraviolet Flame Detector
* AS-E301-IR2: Explosion ProofDual-wavelength Infrared Flame Detector
* AS-E501-UV/IR2: Explosion Proof Combined Ultraviolet and Infrared Flame Detector
