Best Easy Installation Fire uv-ir2 Industrial Flame Detector Price

Description:

AS-E501-UV/IR2 detector provide a new generation of fire detection capability and technical standard. The flame detector which adopt a specially designed pieces of narrow-band infrared sensors and Blind type solar daylight UV sensors , it can distinguish the real flame radiation and interference sources effectively and reduce the impact of environmental factors on detector extremely by means of the built-in 16-bit microprocessor and proprietary signal algorithm processing .The detector can set 6 different sensitivity levels in order to meet more needs in different location.We collected a large number of experimental data through market research and customers' feedback. We have made a big improvement based on its existing in the hardware circuitry and software algorithms .

Features:

* Built-in16-bit high-speed, low-power, high-performance, high-precision data processing chip.
* Adopt narrow-band infrared sensors and patented solar-blind UV sensor.
* It has multi-level sensitivity in order to meet more occasions.
* Detection angle can be able to reach to 110 - 120 Degree.
* Detection range can be able to reach to 50m.
* The perfect algorithm combines optimally the flame detection and false alarm capabilities.
* Detector is fit to a variety of fuels.
* Apply to heavy industry applications.
* Explosion-proof designs can be used in hazardous area of industrial sites.
* Low maintenance cost, easy to update and improve.

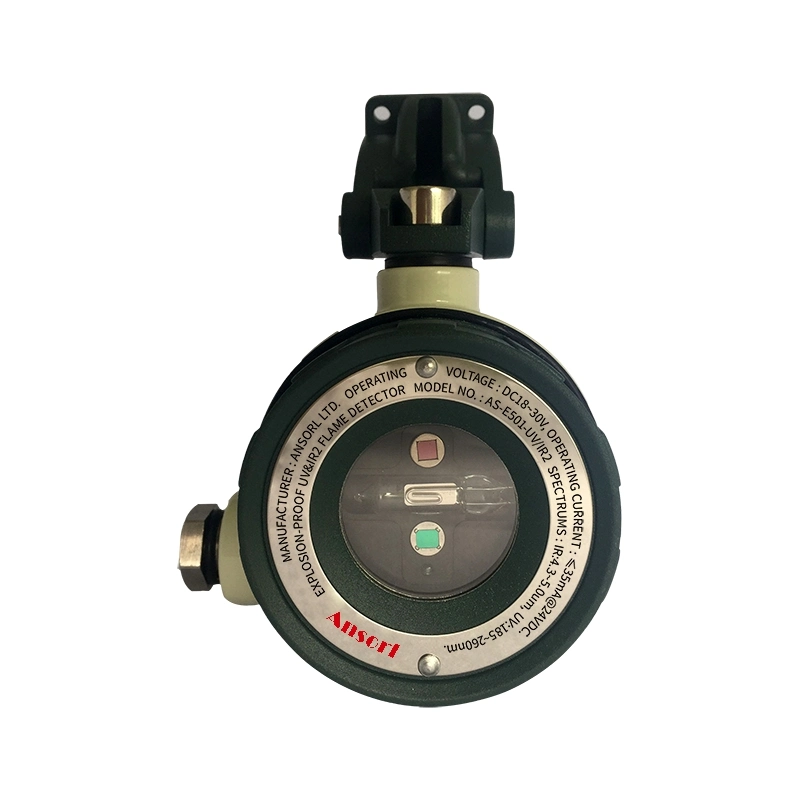

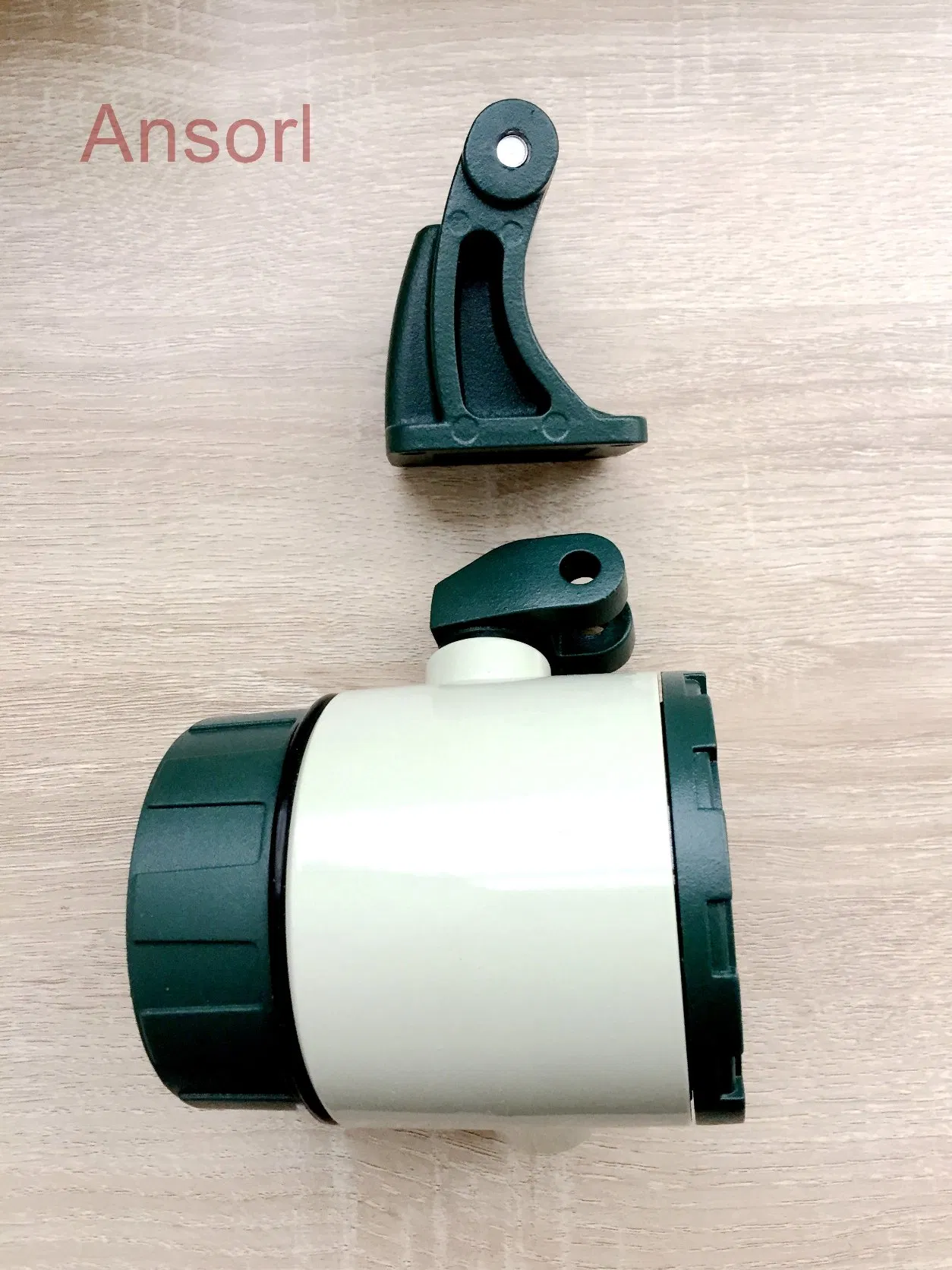

Pictures:

Parameters:

Product Name	uv-ir2 Industrial Flame Detector
Operating Voltage	18-30VDC
Standby Current	25-30mA
Alarm Current	35-45mA
LED Indicator	Green (monitor),Red (alarm),Yellow (fault)
Wiring	4 Wires
Ingress Protection Leve	IP66
Relay Contact Output	N.O and N.C
Relay Contact Load	1A@30VDC
Detection Angle	110-120 degree
Detection Distance	25-50m
Sensitivity Level	1-6
Operating Temperature	-10 to +55 Celsius Degree
Operating Humidity	≤95% no condensing
Materials	Aluminium alloy, surface baking finish

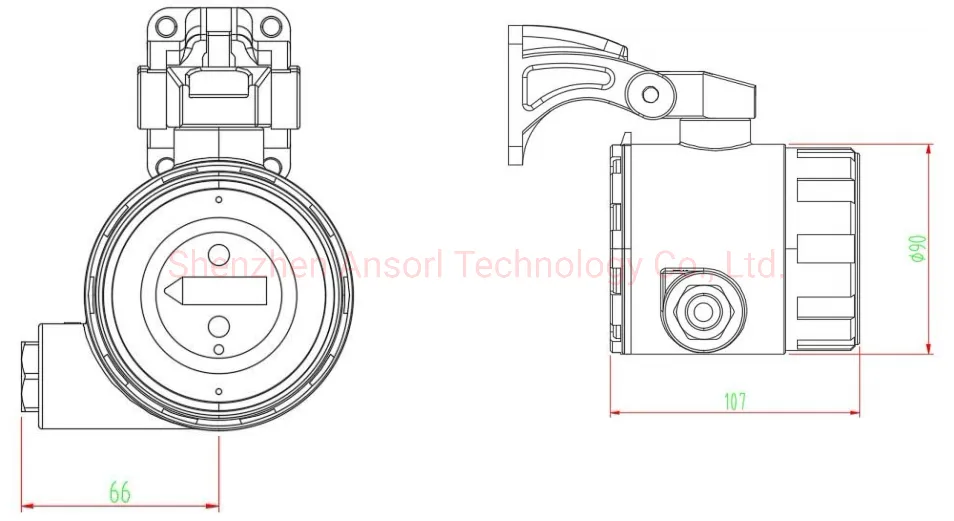

Dimension and Apperance:

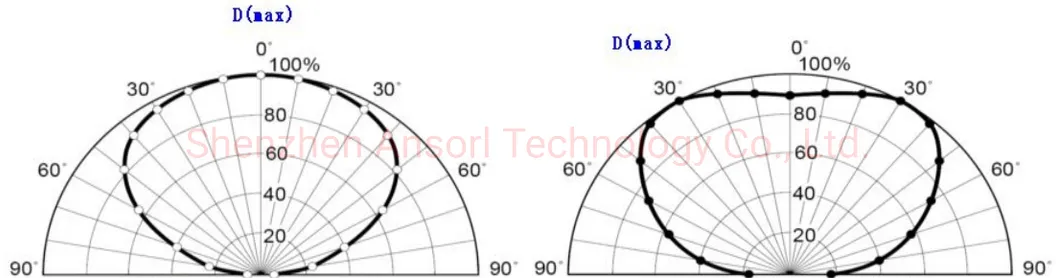

Detection Area Horizontally & Vertically:

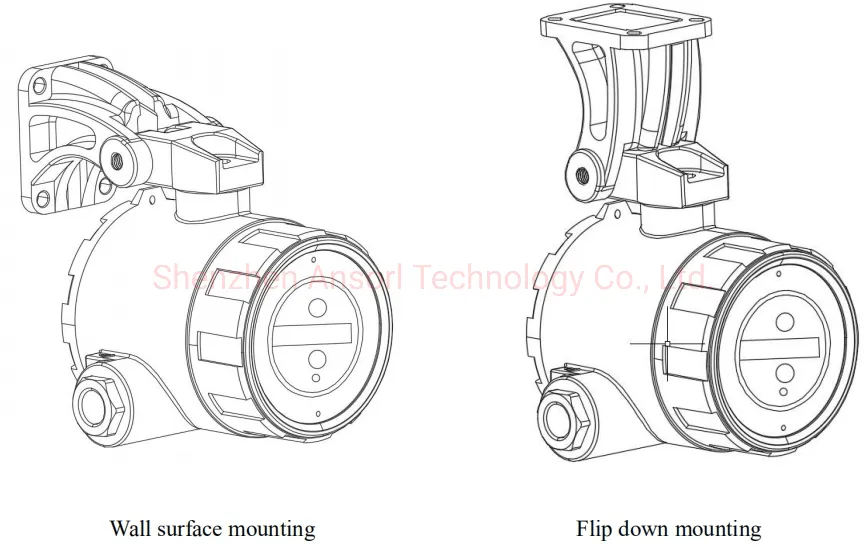

Installation Methods:

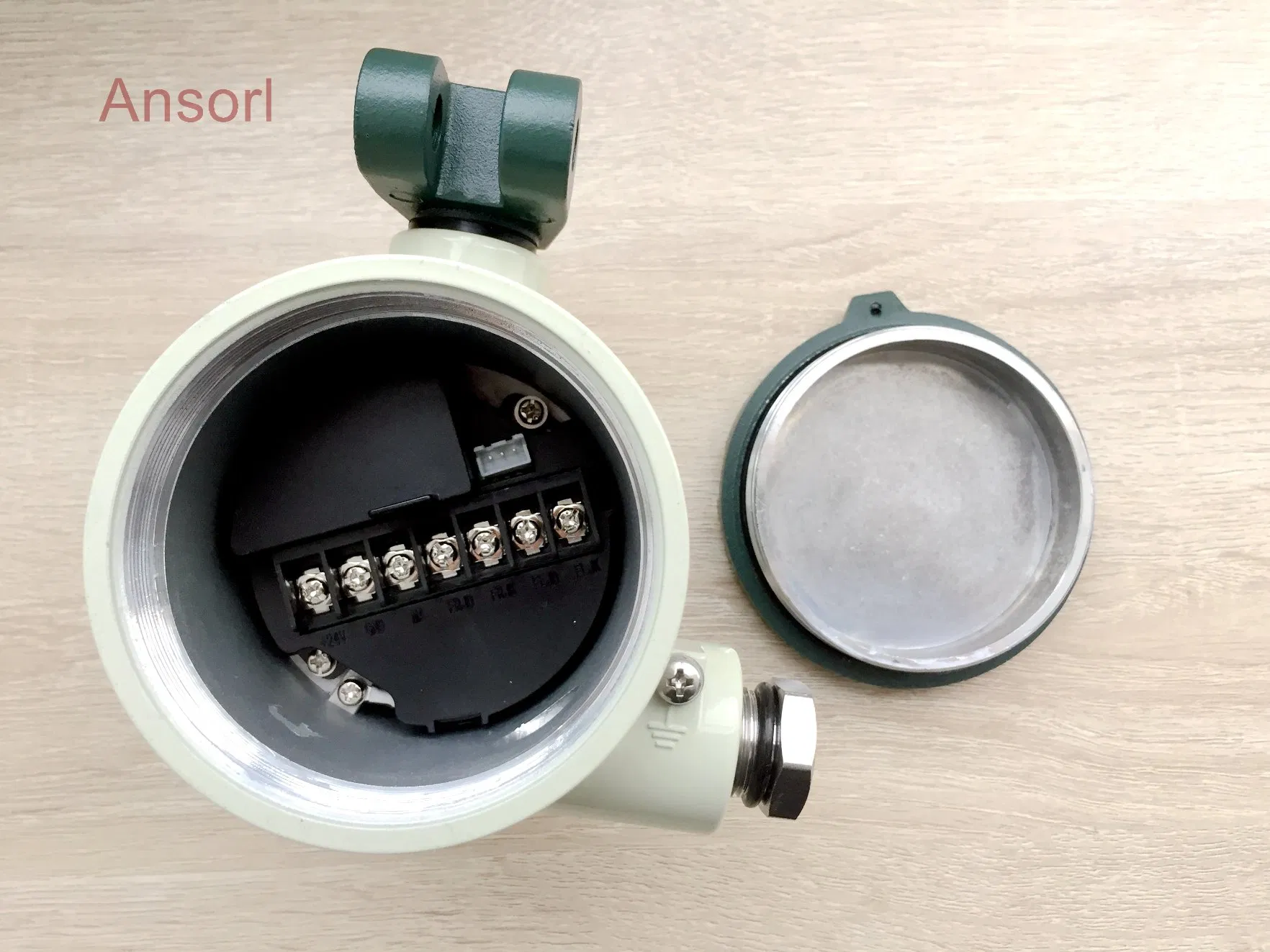

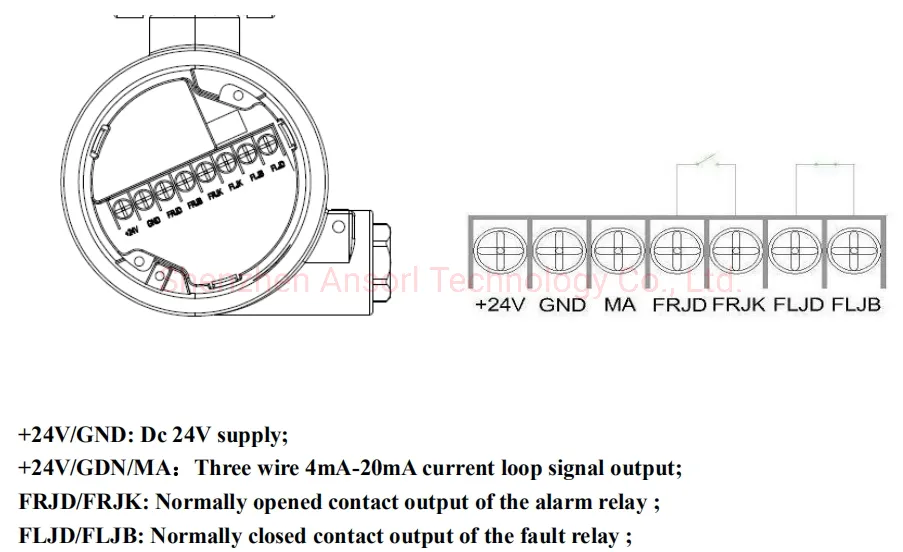

Wiring Terminals:

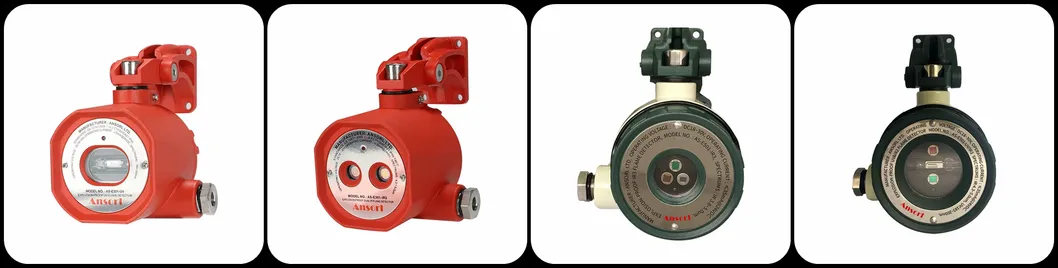

Related Models:

* AS-UFD: Conventional Ultrovialet Flame Detector
* AS-E301-UV: Explosion proof Ultrovialet Flame Detector
* AS-E301-IR2: Explosion proof Dual Infrared Flame Detector
* AS-E501-IR3: Explosion proof Triple Infrared Flame Detector
* AS-E501-UVIR2: Explosion proof Combined Ultraviolet and Infrared Flame Detector

Best Easy Installation Fire UV-IR2 Industrial Flame Detector Price

Factory Corners

Workshop and Warehouse
Best Easy Installation Fire UV-IR2 Industrial Flame Detector Price

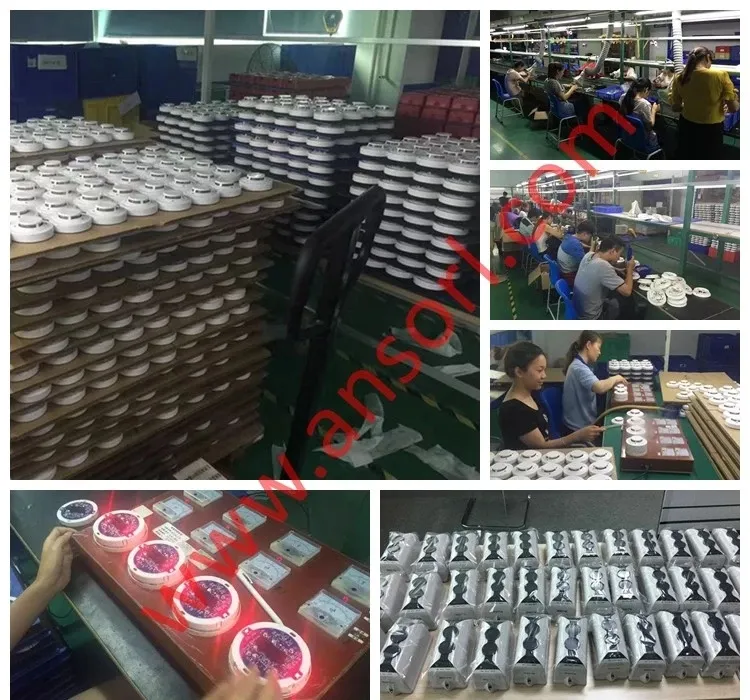

Mass Production
