China Supplier Customization Ionization Smoke Detector with Remote LED Indicator
China Supplier Customization Ionization Smoke Detector with Remote LED indicatorSmoke DetectorSR-801PC-2/SR-802PC-2/SR-811PC-2: 2-Wire Network Photoelectric smoke alarmSR-801PC-4/SR-802PC-4/SR-811PC-4: 4-Wire Network Photoelectric smoke alarmPlease note:There are many types of this product, Please l......
Send Inquiry
Product Description

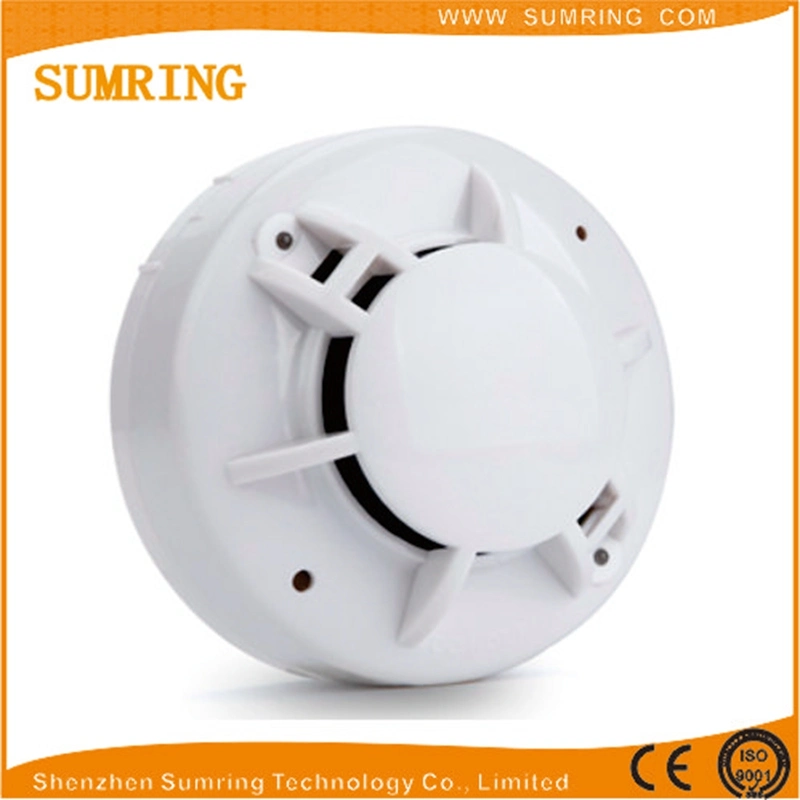

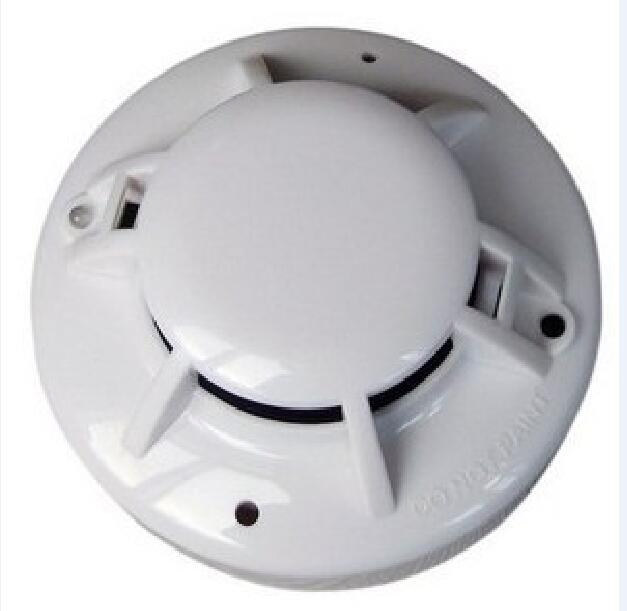

Smoke Detector
SR-801PC-2/SR-802PC-2/SR-811PC-2: 2-Wire Network Photoelectric smoke alarm
SR-801PC-4/SR-802PC-4/SR-811PC-4: 4-Wire Network Photoelectric smoke alarm
Please note:There are many types of this product, Please leave a message to us the type you want,thank you !(SR-801PC-2 is recommended to you on this page!)
Main Features:
Power supply non-polar input
Infrared photoelectric sensor
MCU processing, eliminate false alarm
SMT manufacture technology, high stability
Dustproof, mothproof, anti-light interference design
Stainless steel shield, anti-RFI(20V/m-1GHz)
Execute criterion:UL268, GB4715, EN54-7
Technical specification:
Model No. | SR-801PC-2/SR-802PC-2/SR-811PC-2 | SR-801PC-4/SR-802PC-4/SR-811PC-4: |
Operating voltage | DC9~35V |
|
Static current | 55uA | 12mA(NC);500uA(NO) |
Alarm current | 35mA@DC12V;60mA@DC24V | 10mA(NC);18mA(NO) |
Sensitivity | 0.5dB/m(±0.01dB/M) | 0.5dB/m(±0.01dB/M) |
Alarm output | Remote LED indicator | Relay output |
Installation | Ceiling mounted | Ceiling mounted |
Working environment | -10ºC~+50ºC(≤95%RH No congelation) | -10ºC~+50ºC(≤95%RH No congelation) |
Dimension | 104*49mm (SR-801/SR-802) | 100*48mm (SR-811) |

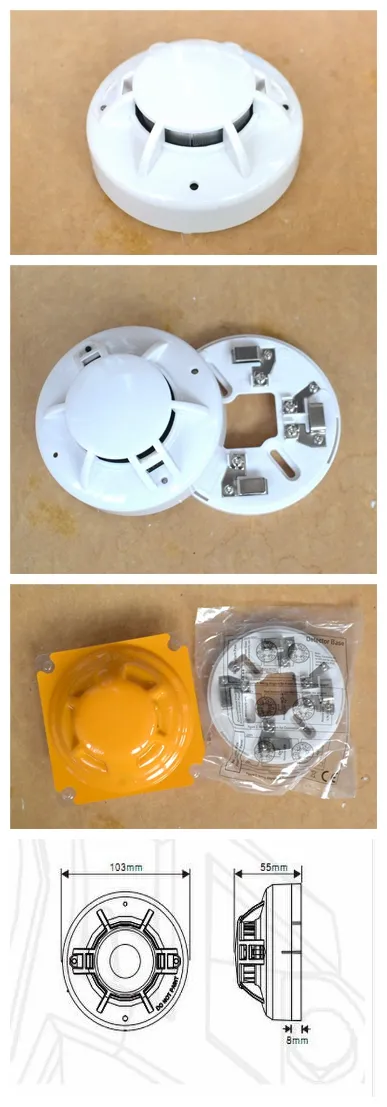

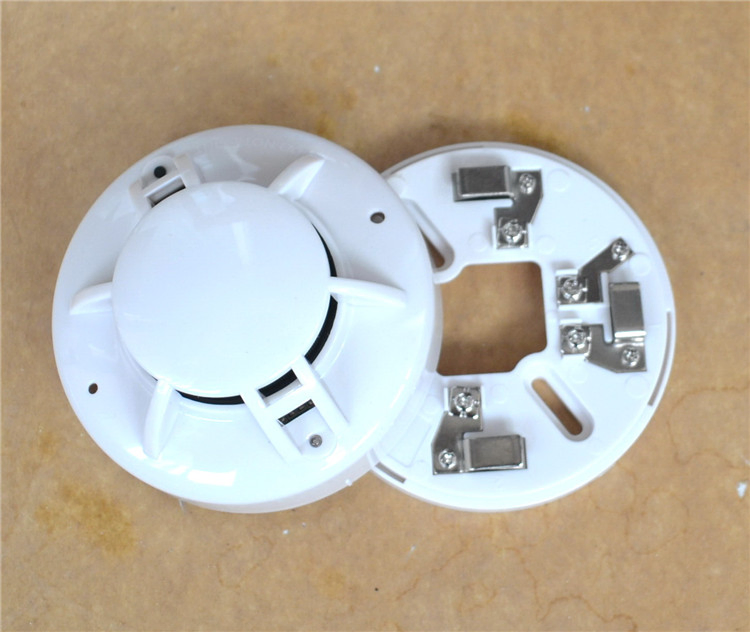

Pictures of the Smoke Detector SR-801PC-2:
Company Information:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,Bluetooth module etc
FAQ
Q1. Can I get one sample for test before big order?
A: Sure,you can. Please leave a message we will contact you soon.
Q2. Can I get the item less than MOQ?
A: Yes, you can and the final price will depend on your quantity.
Q3. Can I print my logo on the item?
A: Yes, please contact us.
Q4, What's the lead time when I place order?
A: Small Qty order needs5-7 working days, big Qty order usually needs 7-20 working days after payments arriving. That's depends on order Qty.
Q5,How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
Our contact info:
Tel: 86- 755-89571625
Fax: 86- 755-89571207
Website: http://cnsumring.en.made-in-china.com
