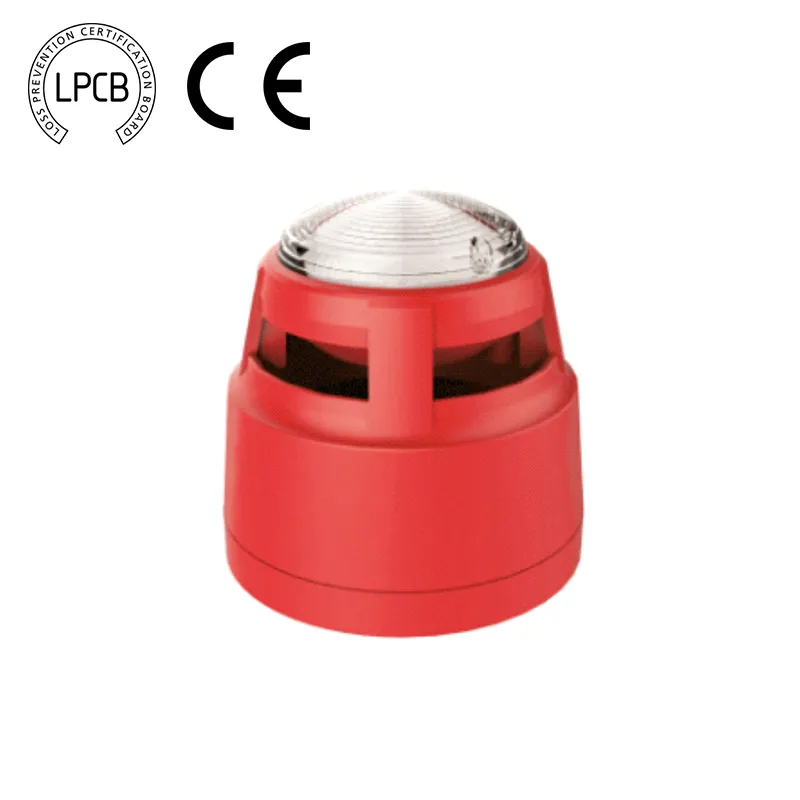

Factory Wholesale Conventional Fire Alarm System Beacon Sounder with Lpcb

Factory Wholesale Conventional Fire Alarm System Beacon Sounder with LPCB

Conventional Fire Alarm System Beacon Sounder Features:

It can realize complete electronic coding and in situ rewriting with  the help of a coder.

The audible alarm and flashing alarm may be set freely. In other words, the  hooter/horn  may give an audible alarm and a flashing alarm at the same time or separately and it can be adapted to different working environments.
Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.

It uses multiple super bright red LEDs as light sources  for visual display , ensuring a  striking display, a longer service life and low power consumption.

Technical Specification
1. Executive Standard: EN54-3/EN54-23 Type A indoor
2. Operating voltage:DC24V(20V~28V)
3. Operating Current:≤100mA@DC24V
4. Sound output:≥75dB(A) @ 1m(Tone 1).
5. Number of tones:16
6. EN54-23 coverage:C-3-8/W-2.4-6
7. Flash rate: 0.5Hz
8. Flash color: white
9. Light output synchronization:meets EN54-23
10. Protection class: IP21C
11. Operating temperature: -10ºC~+55ºC Relative
Humanity:≤95% (non-condensing)
12. Material Lens/Body: Flame retardant PC/ABS
