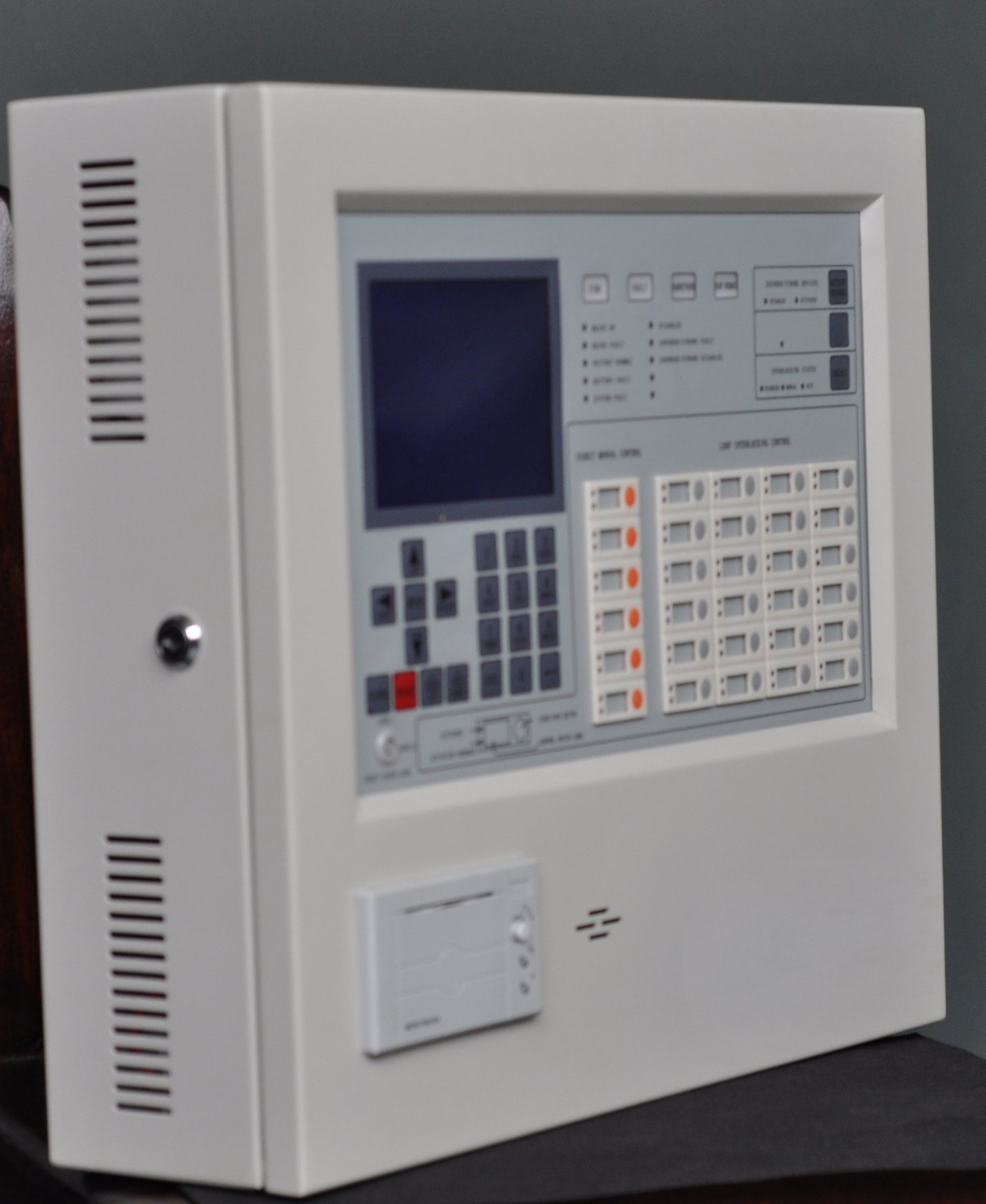

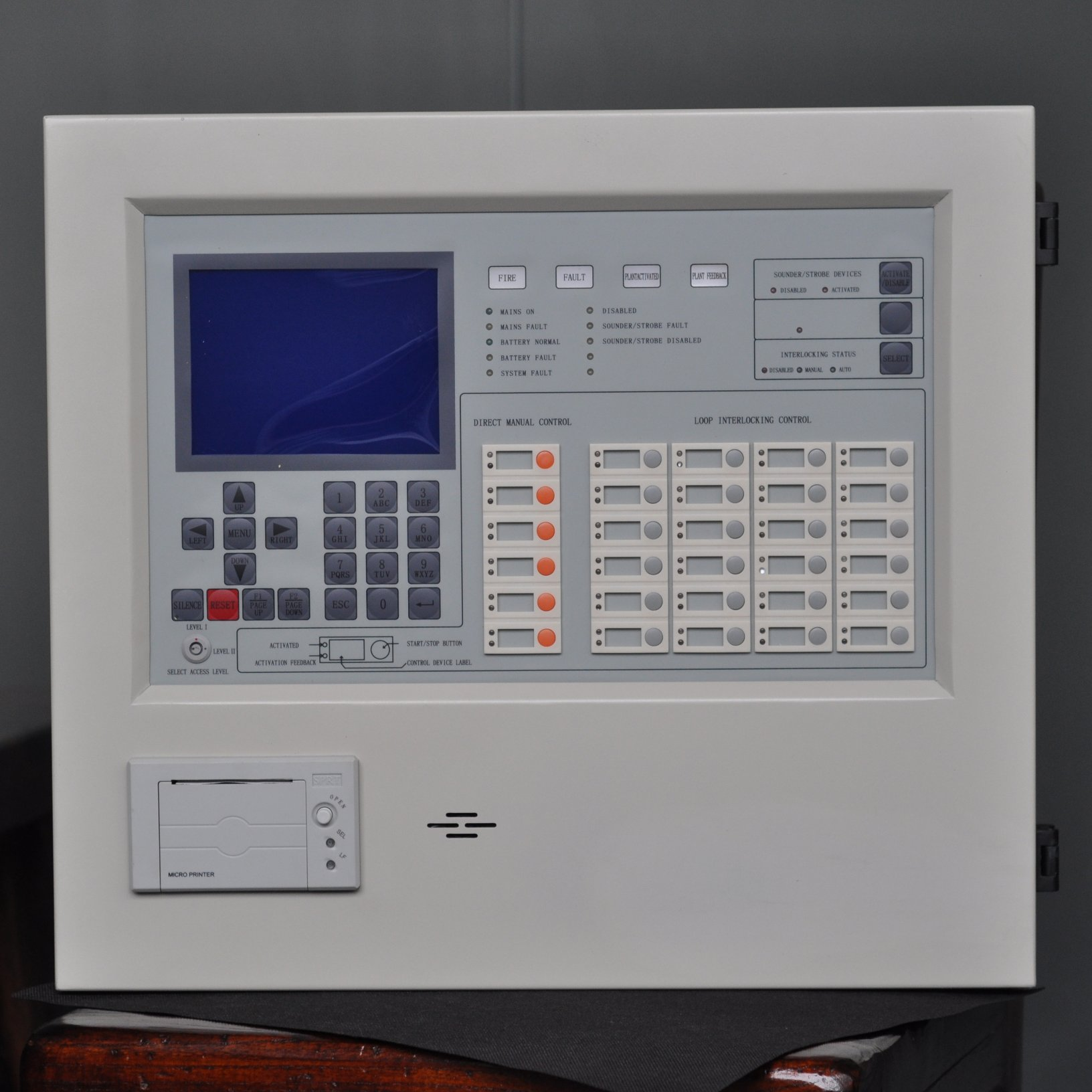

Fire Bell in Multi-Hazard Suppression Addressable Home Alarm System
2.4 Main Technical Characteristi2.4.1 Power Supply:AC Power(Main Power): Input Voltage ~ 220VAC ( 175~ 245VAC)Standby Power: Standby power supply with different capacity should beconfigured according to different device points.2.4.2 Operating Environment:Operating temperature: 0ºC ~ +42&......
Send Inquiry
Product Description

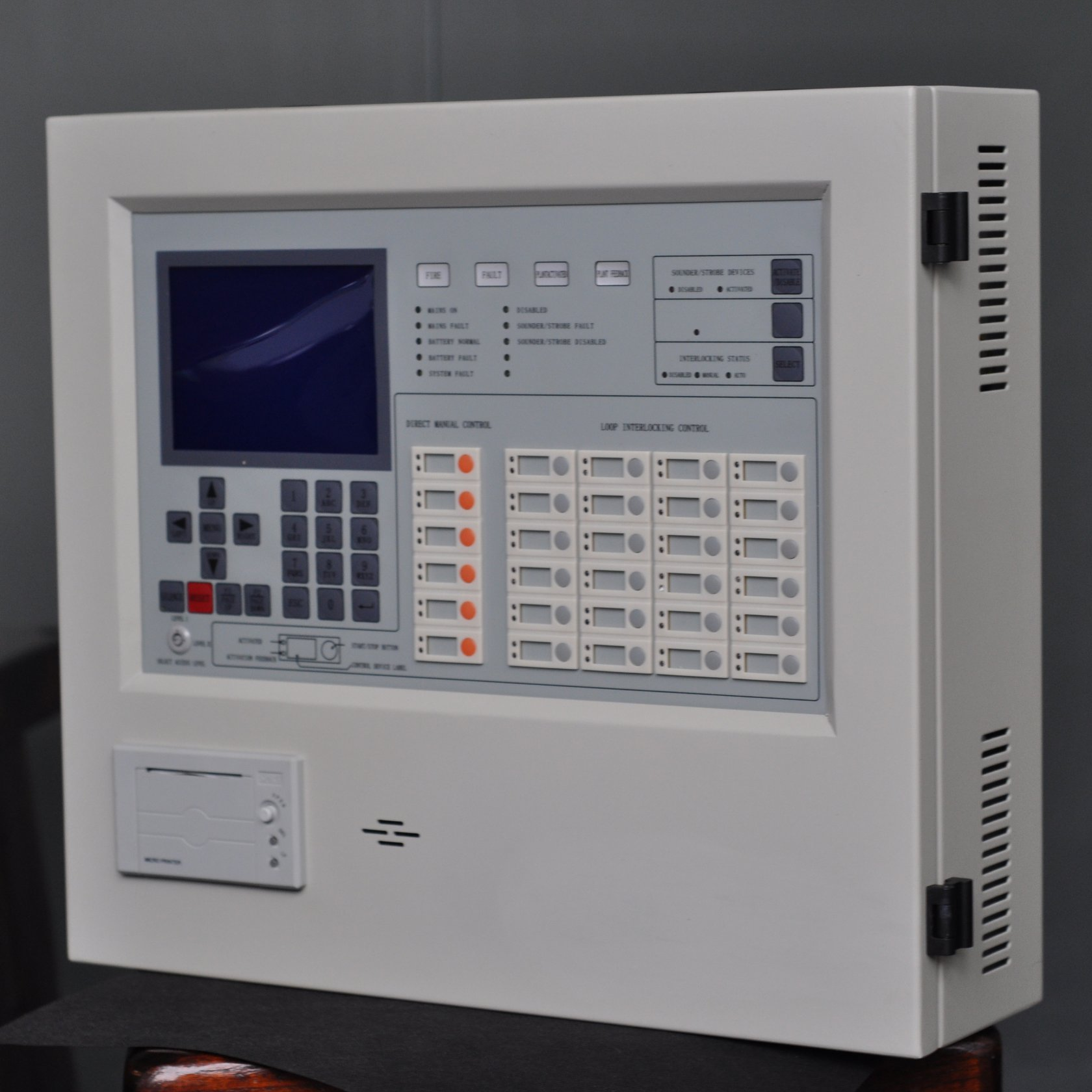

2.4 Main Technical Characteristi
2.4.1 Power Supply:
AC Power(Main Power): Input Voltage ~ 220VAC ( 175~ 245VAC)
Standby Power: Standby power supply with different capacity should be
configured according to different device points.
2.4.2 Operating Environment:
Operating temperature: 0ºC ~ +42ºC
Relative humidity: ≤95%, Non-condensing
2.4.3 Capacity:
Floor type: 64 Loops; Control Points of Each Loop: 242.
2.4.4 Display:
LCD display (Mode: HY-320240)
2.4.5 Dimension( L x W x H ):
420mm x130mm x 470mm;
2.4.6 Wiring Requirement
·For 485 communication cable and fire alarm bus cable, it is recommended
to use UTP RVS2×1.0 MM
2OR RVS2×1.5 MM
2 twisted-pair cable; When
environmental interference is heavy, it is better to use RVSP2×1.0MM
shielded twisted-pair cable.
·It is forbidden to put the 485 communication cable, telephone line and fire
alarm bus cable in one multi-core cable.
2.4.1 Power Supply:
AC Power(Main Power): Input Voltage ~ 220VAC ( 175~ 245VAC)
Standby Power: Standby power supply with different capacity should be
configured according to different device points.
2.4.2 Operating Environment:
Operating temperature: 0ºC ~ +42ºC
Relative humidity: ≤95%, Non-condensing
2.4.3 Capacity:
Floor type: 64 Loops; Control Points of Each Loop: 242.
2.4.4 Display:
LCD display (Mode: HY-320240)
2.4.5 Dimension( L x W x H ):
420mm x130mm x 470mm;
2.4.6 Wiring Requirement
·For 485 communication cable and fire alarm bus cable, it is recommended
to use UTP RVS2×1.0 MM
2OR RVS2×1.5 MM
2 twisted-pair cable; When
environmental interference is heavy, it is better to use RVSP2×1.0MM
shielded twisted-pair cable.
·It is forbidden to put the 485 communication cable, telephone line and fire
alarm bus cable in one multi-core cable.
 |
 |
