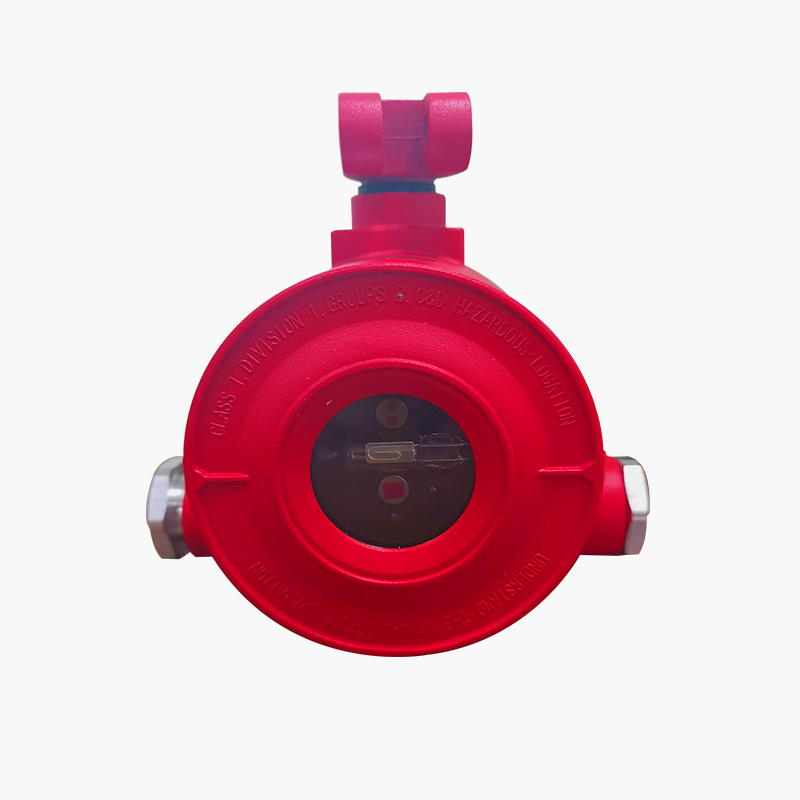

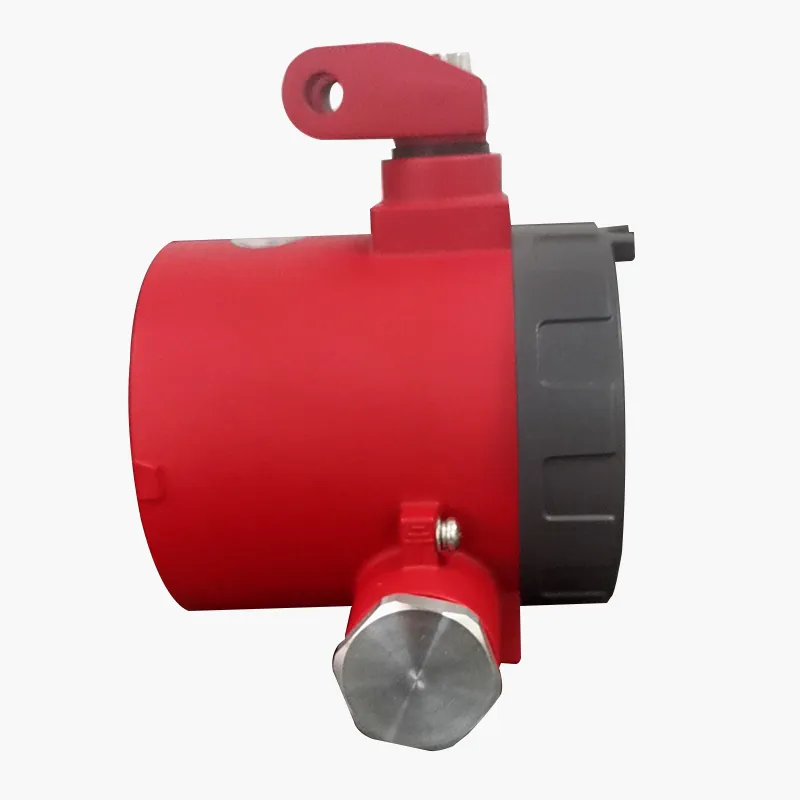

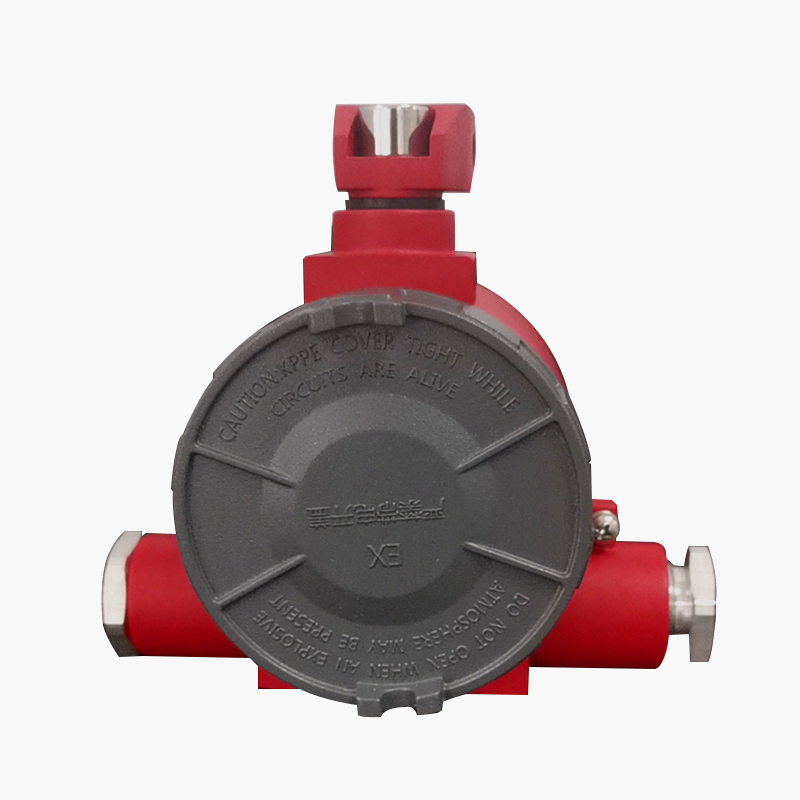

Flame Detector Explosion Proof UV/ IR2 Flame Detector
:Desription:The detector AW-707E-UVIR2 combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most......
Send Inquiry
Product Description
:
Desription:
The detector AW-707E-UVIR2 combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc).
The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet
Desription:
The detector AW-707E-UVIR2 combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc).
The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet
photoelectric sensor with a built-in 32-bit microprocessor and patented composite signal processing algorithm.
Features:
Features:
Extended detection range
Adjustable high sensitivity
More Flexible and Compatible
Easy Installation
Reliable fault diagnosis
Built-in high-speed, low-power, high-performance 32-bit high-precision data processing chip.
The detector is suitable for a variety of fuels
Suitable for heavy industrial applications
Low maintenance cost, easy to update and improve
A small fire can be detected earlier.
Technical Parameters:
Model : AW-707E-UVIR2
Main Voltage :18 to 30VDC Volts
Operating current(Relay Out)
Maximum Detection Angle and Range :120°40m
Relay Out :Fault, Fire Alarm
Current Loop Out :Fault:<2mA; Normal:5mA ; Alarm:15mA
Spectrum Range : UV 185-260nm IR 4.3-5.0μm
Ex-Atex Protection Level : Exd II C T6 Gb/tD A21 IP66 T80°C
Protection class: IP66 IP67
Indicator light : Three (Fire,Fault,Normal)
Reset method : Power off reset, Communication protocol reset, Remote control reset
Humidity: 0 to 96% RH, non-condensing
Materials and colors : Cast Aluminum, The coating is an insulating layer, corrosion-resistant, Red
Electrical Interface : 1×3/4NPT,G3/4,M25*1.5 optional
Size : 120mm* 95mm* 85mm
Weight : about 0.7kg
Our company

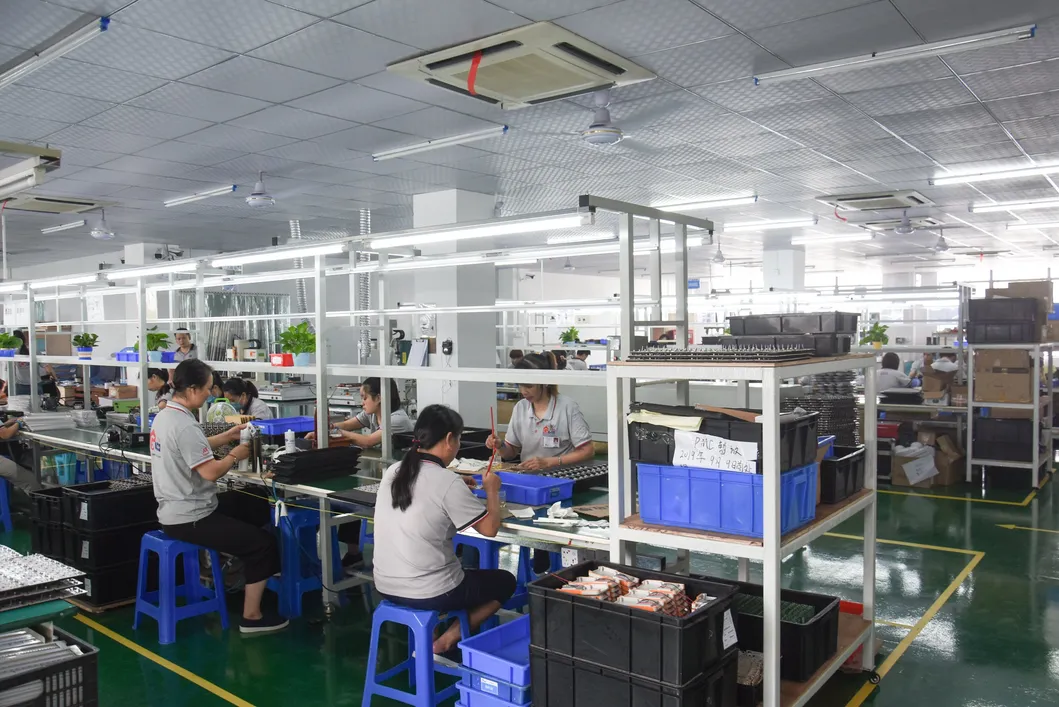

Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range
1. Addressable fire alarm system(FP100 series,FP300 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet

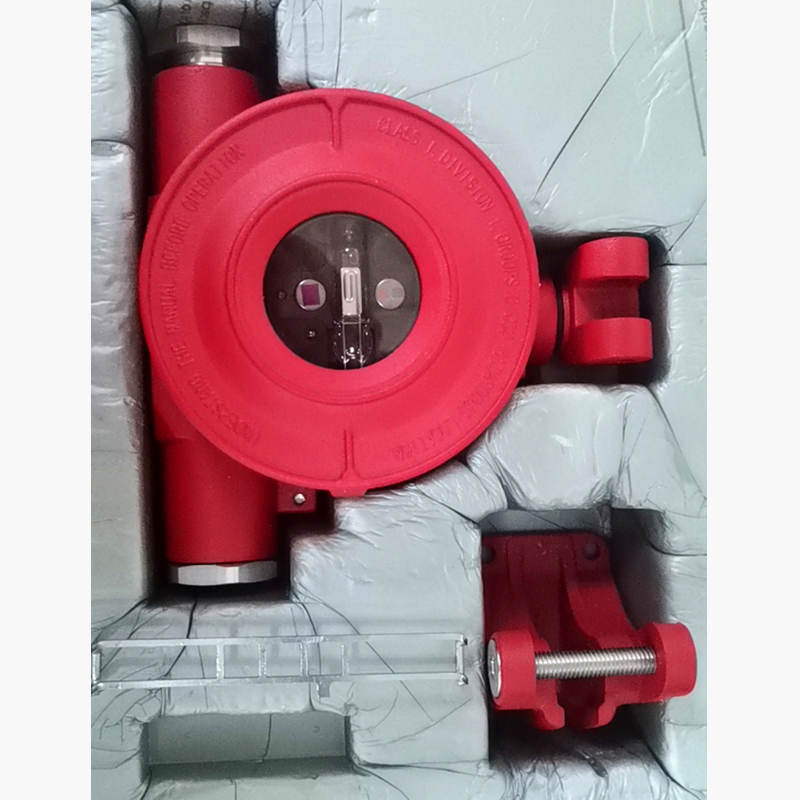

Packaging & Shipping
Packaging Details:
1) PEE bag per unit
2) Outside Cartons
3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
Exhibition:
Our Services
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
FAQ
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.Technical Specification
Technical Specification
Technical Specification
Technical Parameters:
Model : AW-707E-UVIR2
Main Voltage :18 to 30VDC Volts
Operating current(Relay Out)
Monitor: 25mA
Alarm: 35mA
(Current Loop Out)
(Current Loop Out)
Monitor: 30mA
Alarm: 45mA
Maximum Detection Angle and Range :120°40m
Relay Out :Fault, Fire Alarm
Current Loop Out :Fault:<2mA; Normal:5mA ; Alarm:15mA
Spectrum Range : UV 185-260nm IR 4.3-5.0μm
Ex-Atex Protection Level : Exd II C T6 Gb/tD A21 IP66 T80°C
Protection class: IP66 IP67
Indicator light : Three (Fire,Fault,Normal)
Reset method : Power off reset, Communication protocol reset, Remote control reset
Temperature range: -40 to 70°C (-40~158°F)
Humidity: 0 to 96% RH, non-condensing
Materials and colors : Cast Aluminum, The coating is an insulating layer, corrosion-resistant, Red
Electrical Interface : 1×3/4NPT,G3/4,M25*1.5 optional
Size : 120mm* 95mm* 85mm
Weight : about 0.7kg
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range
1. Addressable fire alarm system(FP100 series,FP300 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
Packaging & Shipping
Packaging Details:
1) PEE bag per unit
2) Outside Cartons
3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
Exhibition:
Our Services
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
FAQ
Q1: Are you manufacturer?
A: (yes)
Q2: What is the lead time?
A: usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
