Photoelectric Smoke Detector Fire Alarm
Photoelectric Smoke Detector Fire AlarmProduct No.: NT-SD01Feature:Excellent stability.High sensitivity.Alarm test button for easy testing.Low battery indicator.Alarm Indication: Red LED flash.Designed for the fastest possible installation.This small gadgets will alert and warn people stay far away ......
Send Inquiry
Product Description

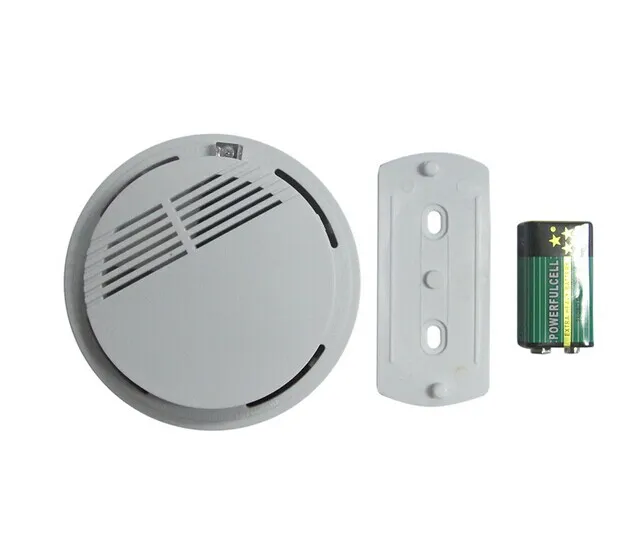

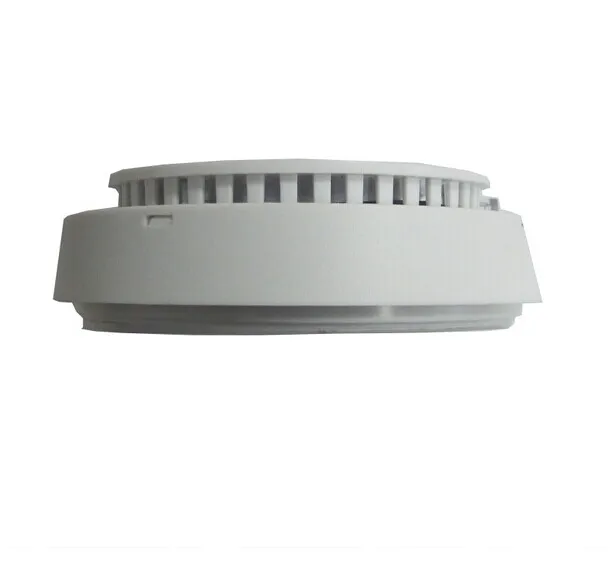

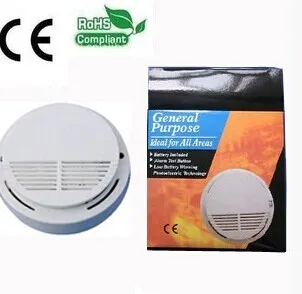

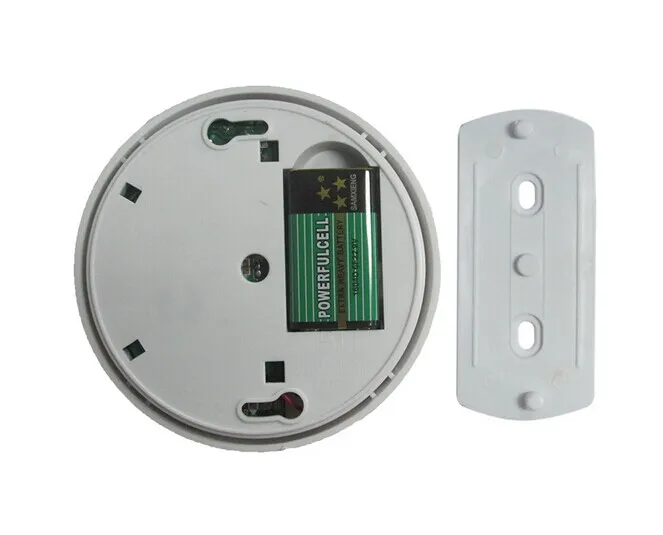

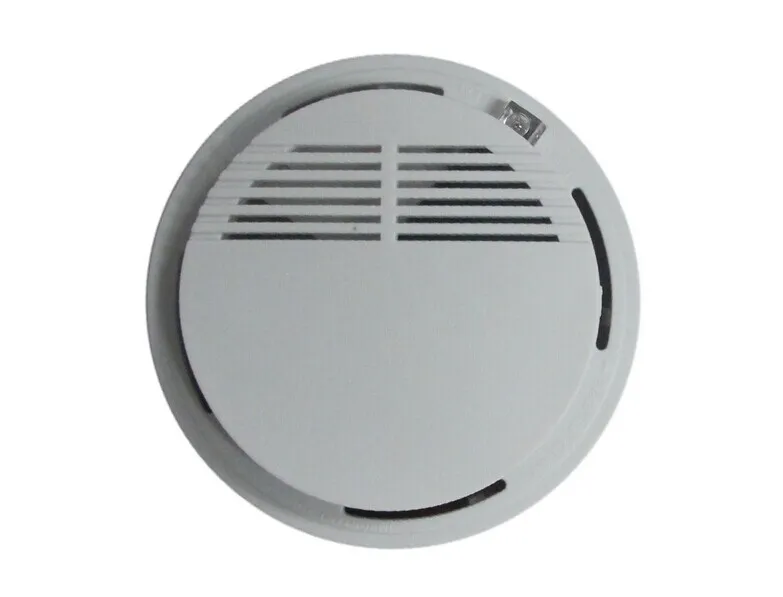

Photoelectric Smoke Detector Fire Alarm
Product No.: NT-SD01
Feature:
Excellent stability.
High sensitivity.
Alarm test button for easy testing.
Low battery indicator.
Alarm Indication: Red LED flash.
Designed for the fastest possible installation.
This small gadgets will alert and warn people stay far away from danger field when it detected smoke.
This product named Photoelectric detector (hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don't affect the smoke into it.
While have no smoke, the diode can receive very weak infrared light. When the smoke entering the the chamber, diode can receive more and more light, when the smoke attains the certain density, the detector can give out alarm signal. In order to reduce the interference and lower power consumption, the emitting circuit adopts the pulse signal.
The detector adopts the special structure design and ASIC, has the dustproof, mothproof and anti outside light interference feature etc.
The detector is suitable for detect the smoke in house, shop, hotel, restaurant, office building, school, bank, library, computer house and storehouse etc.
Technical Specification:
9V battery.
Sound Level: >=85dB/m
Alarm Current: <=20mA
Standby Current: 300μA
Operating Temperature: -10° C ~ +50° C
Operating Humidity: 95%RH
Detecting Area: 20 square meter
Smoke Sensitivity: 2.36%/FT +/-1.251%/FT OBS.
Package Content:
Cordless Smoke Detector Fire Alarm
Product No.: NT-SD01
Feature:
Excellent stability.
High sensitivity.
Alarm test button for easy testing.
Low battery indicator.
Alarm Indication: Red LED flash.
Designed for the fastest possible installation.
This small gadgets will alert and warn people stay far away from danger field when it detected smoke.
This product named Photoelectric detector (hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light. Infrared diodes are placed in the special chamber. The chamber can shield external light, but don't affect the smoke into it.
While have no smoke, the diode can receive very weak infrared light. When the smoke entering the the chamber, diode can receive more and more light, when the smoke attains the certain density, the detector can give out alarm signal. In order to reduce the interference and lower power consumption, the emitting circuit adopts the pulse signal.
The detector adopts the special structure design and ASIC, has the dustproof, mothproof and anti outside light interference feature etc.
The detector is suitable for detect the smoke in house, shop, hotel, restaurant, office building, school, bank, library, computer house and storehouse etc.
Technical Specification:
9V battery.
Sound Level: >=85dB/m
Alarm Current: <=20mA
Standby Current: 300μA
Operating Temperature: -10° C ~ +50° C
Operating Humidity: 95%RH
Detecting Area: 20 square meter
Smoke Sensitivity: 2.36%/FT +/-1.251%/FT OBS.
Package Content:
Cordless Smoke Detector Fire Alarm
