Electric Motor Fire Fighting Robot
CIMCIntelligent fire fighting robot SpecificationChassisDimension(L/W/H)mm1000×750×380Net weight(kg)200Battery Capacity48V30AhWalking speed0~1.4Continuous working time(h)4Climbing grade30°Obstacle Height(mm)150Turning diameterTurn aroundProtection levelChassis IP5......
Send Inquiry
Product Description
CIMC

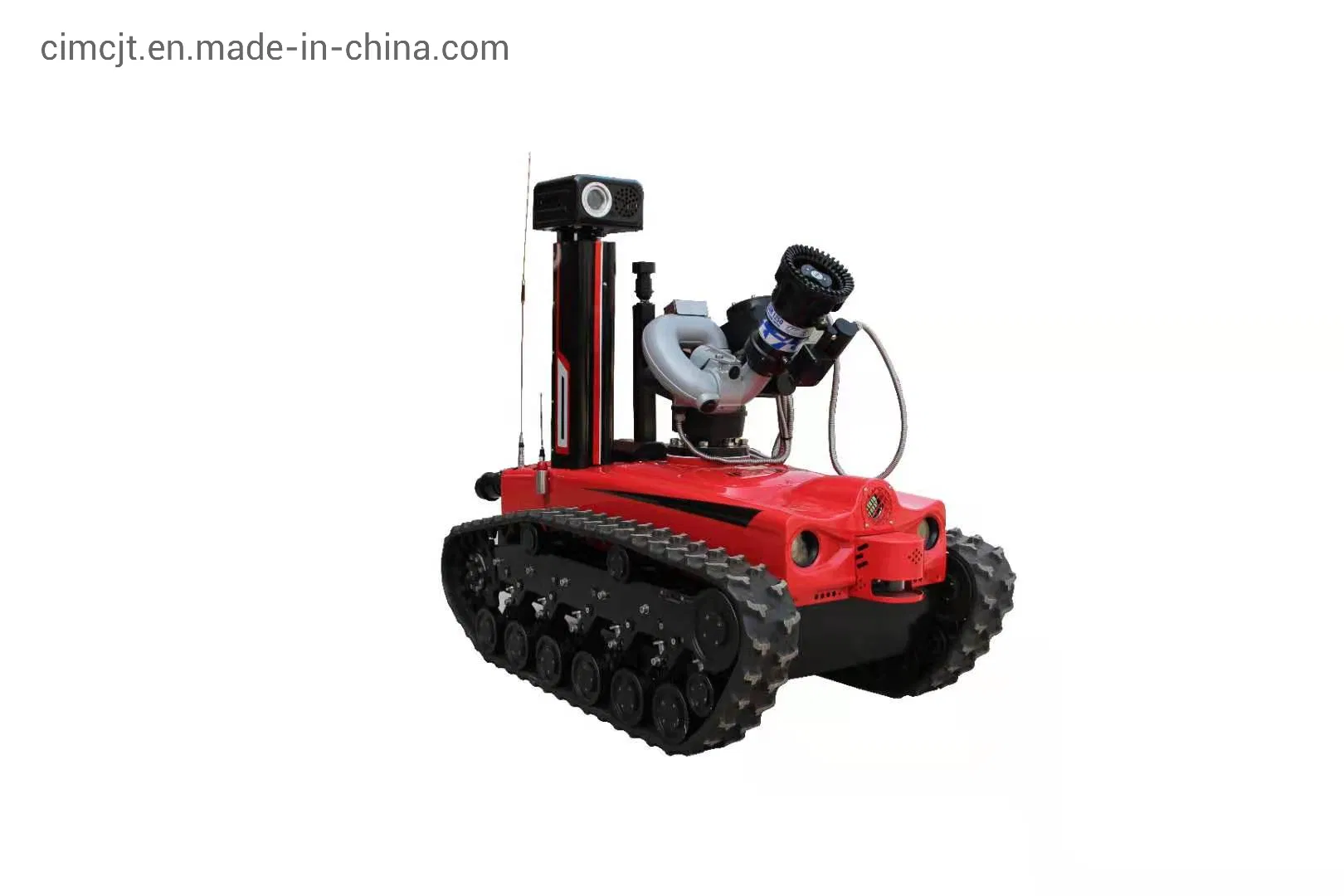

Intelligent fire fighting robot
Intelligent fire fighting robot
| Specification | |||||
Chassis | Dimension(L/W/H)mm | 1000×750×380 | Net weight(kg) | 200 | |
| Battery Capacity | 48V30Ah | Walking speed | 0~1.4 | ||
| Continuous working time(h) | 4 | Climbing grade | 30° | ||
| Obstacle Height(mm) | 150 | Turning diameter | Turn around | ||
| Protection level | Chassis IP54 | Remote distance | 300(meters) | ||
Fire fighting cannon | Fire fighting Equipment | Spray distance(m) | 5 | ||
| Fire fighting Capacity | 10000m2/h | ||||
| Water/Foam Tanker(L) | 15 | ||||
Tanker | Gasoline | 92 | |||
| Volume | 1.5L | ||||
| Optional | |||||
| Autonomous walking | Lidar navigation, walking route can be set, autonomous obstacle avoidance, autonomous obstacle avoidance | ||||
Reconnaissance system parameters | Infrared camera(3 units) | Position | Front,bank,cannon | ||
| Pixel | 1,300,000 | ||||
PTZ infrared camera(1 unit) | Level | 360° | |||
| Upright | -20°~90° | ||||
| Pixel | 2,000,000 | ||||
Voice function | pickup | 1 unit | |||
| sound | 1 unit | ||||
Remote control box | Dimension(mm) | 470×370×190 | Net Weight(kg) | 8.5 | |
| Display dimension | 15 Inch | Display resolution | 1024*768 | ||
| Remote distance(m) | 1000(Line of sight) | Working Hours | 3 | ||
Others Functions | Obstacle avoidance function | Automatic shutdown in case of obstacles | Headlight | 2 LED | |
| Cannon Remote control | Remote control on | Cannon Rotation | 180° | ||
