Fire Fighting Equipment Manufacturer, Nozzle, Fire Sprinkler
Our company is specialized in the development and processing of CNC Machining Parts for more than ten years,with rich experience in precision hardware processing and a variety of automatic precision processing equipment.In line with the purpose of focusing on quality and customer first, we undertake......
Send Inquiry
Product Description
Our company is specialized in the development and processing of CNC Machining Parts for more than ten years,
with rich experience in precision hardware processing and a variety of automatic precision processing equipment.
In line with the purpose of focusing on quality and customer first, we undertake all kinds of environmental protection,
fire sprinkler, nozzle and all kinds of machining business, welcome to consult!
Lead Time:
| Quantity(Pieces) | 1-50 | 51-300 | >300 |
| Est. Time(days) | 7 | 14 | To be negotiated |
High Pressure Water Mist Nozzle Model list:
| Serial number | Model number | Type | K Factor | working pressure(Mpa) | Connector thread(Custom) | Number of nozzles |
| 1 | XSW-TQ0.3/10 | Open/Closed | 0.3 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 2 | XSW-TQ0.5/10 | Open/Closed | 0.5 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 3 | XSW-T0.7/10 | Open/Closed | 0.7 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 4 | XSW-T0.8/10 | Open/Closed | 0.8 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 5 | XSW-T0.9/10 | Open/Closed | 0.9 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 6 | XSW-T1.0/10 | Open/Closed | 1.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 7 | XSW-T1.2/10 | Open/Closed | 1.2 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 8 | XSW-T1.5/10 | Open/Closed | 1.5 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 9 | XSW-T1.7/10 | Open/Closed | 1.7 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 10 | XSW-T2.0/10 | Open/Closed | 2.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 11 | XSW-T2.5/8 | Open/Closed | 2.5 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 12 | XSW-T3.0/8 | Open/Closed | 3.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 13 | XSW-T3.5/8 | Open/Closed | 3.5 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 14 | XSW-T4.0/5 | Open/Closed | 4.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 15 | XSW-T4.5/5 | Open/Closed | 4.5 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 16 | XSW-T5.0/5 | Open/Closed | 5.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
| 17 | XSW-T5.5/5 | Open/Closed | 5.0 | 10Mpa-14Mpa | M18*1.5/G1/2 | 5/6/7Pcs |
How To Place A Order?
Inquiry> Drawing> Quote> Sample making> Sample confirm> Produce> Delivery
1.Inquiry:Let us know your requirements or application.
2.Drawing:You can send us drawing or sample
3.Quote:we quote according to your requirements or our suggestions.
4.Sample making:We make the sample and send it to you
5.Sample confirm:You confirms the samples and places deposit for formal order.
6.Produce:we arrange the production.
7.Delivery:We deliver the products to you
1. How long does it take to receive samples?
a) Pattern:30-45days after order
b) Sample:30days after pattern finishing.
c) The lead time is the general production period and does not include the transportation time.
2. Can we visit the factory to conduct an audit?
Yes, you are welcome to visit our partner factory by prior agreement.
Introduction:
High-Pressure Water Mist System is composed of a pump unit, nozzle, valve unit, and stainless steel pipe, etc. The working pressure is set to 10Mpa. The system has a linkage to the automatic alarm system. It is responsive, stable in flow rate, uniform in water mist, easy for maintenance, has excellent extinguishment characteristics and price/performance ratio.

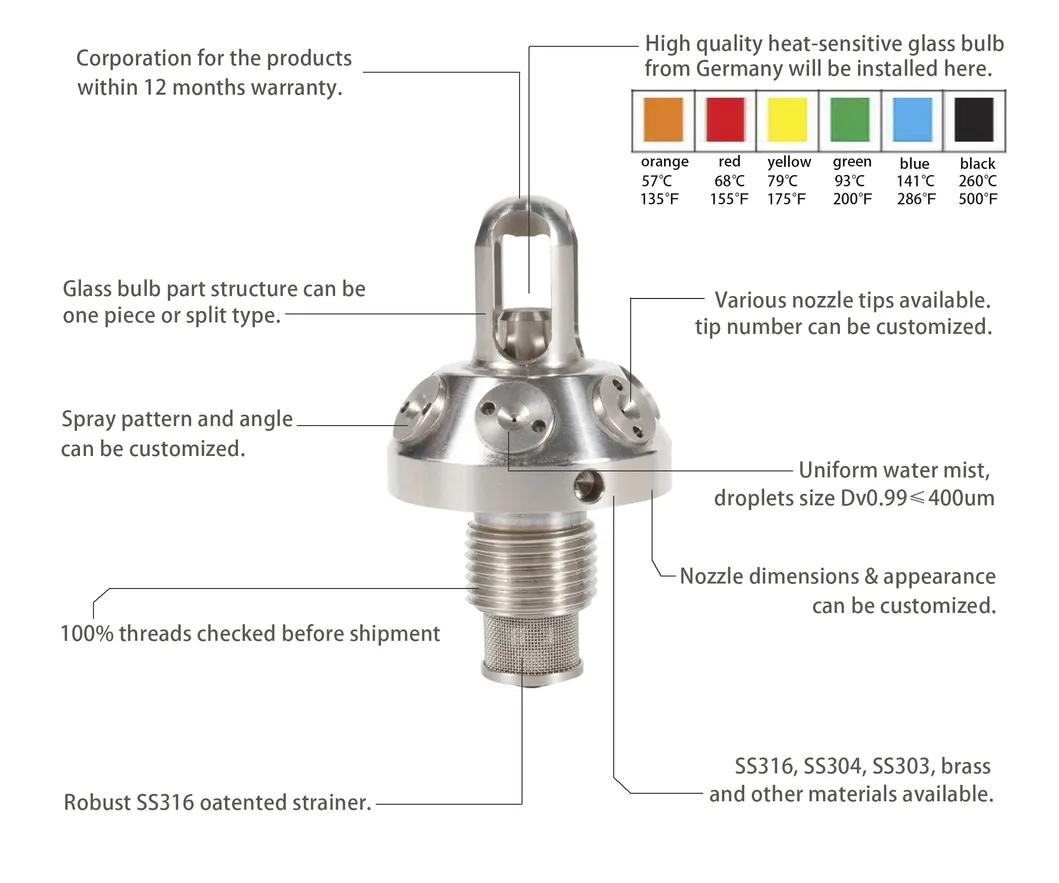

Design Features :
- Very fine droplet size, Class I water mist

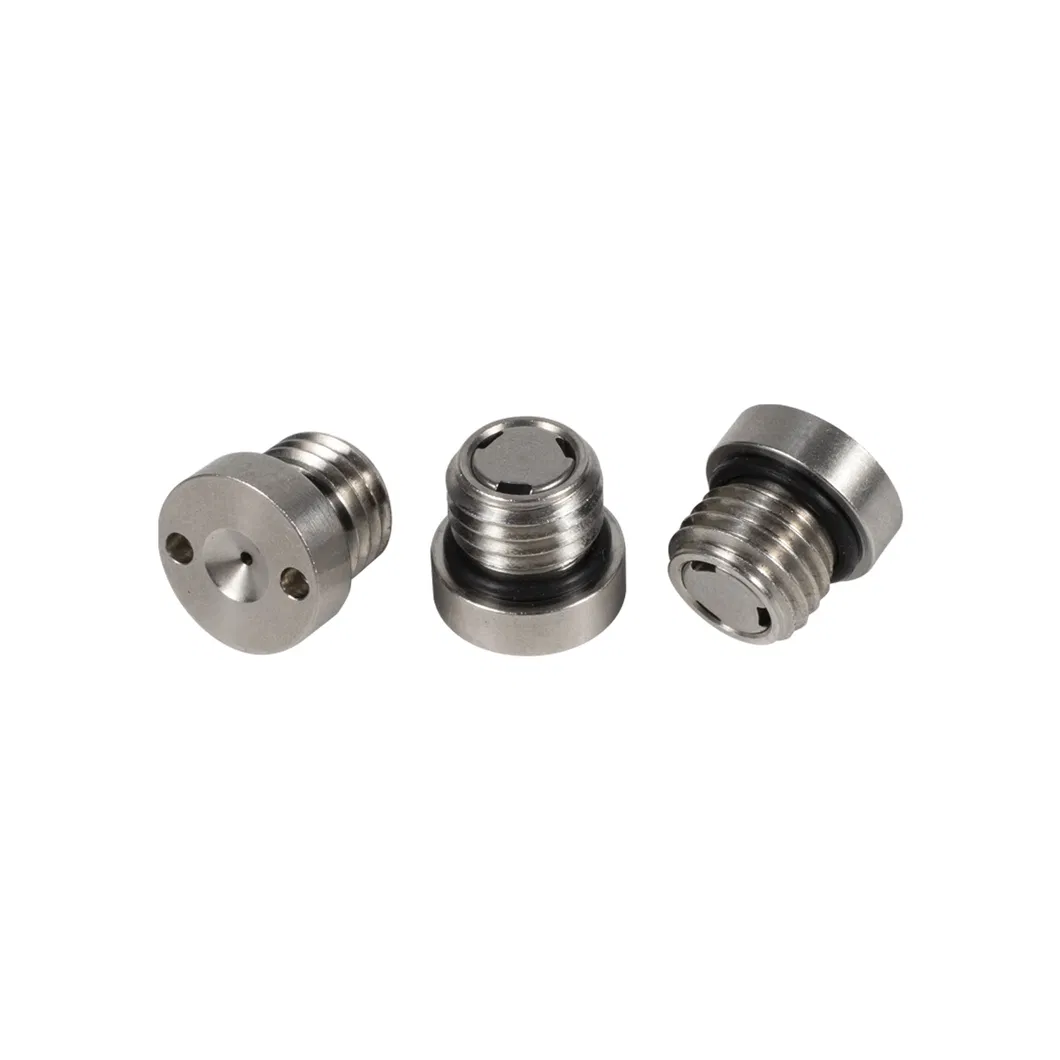

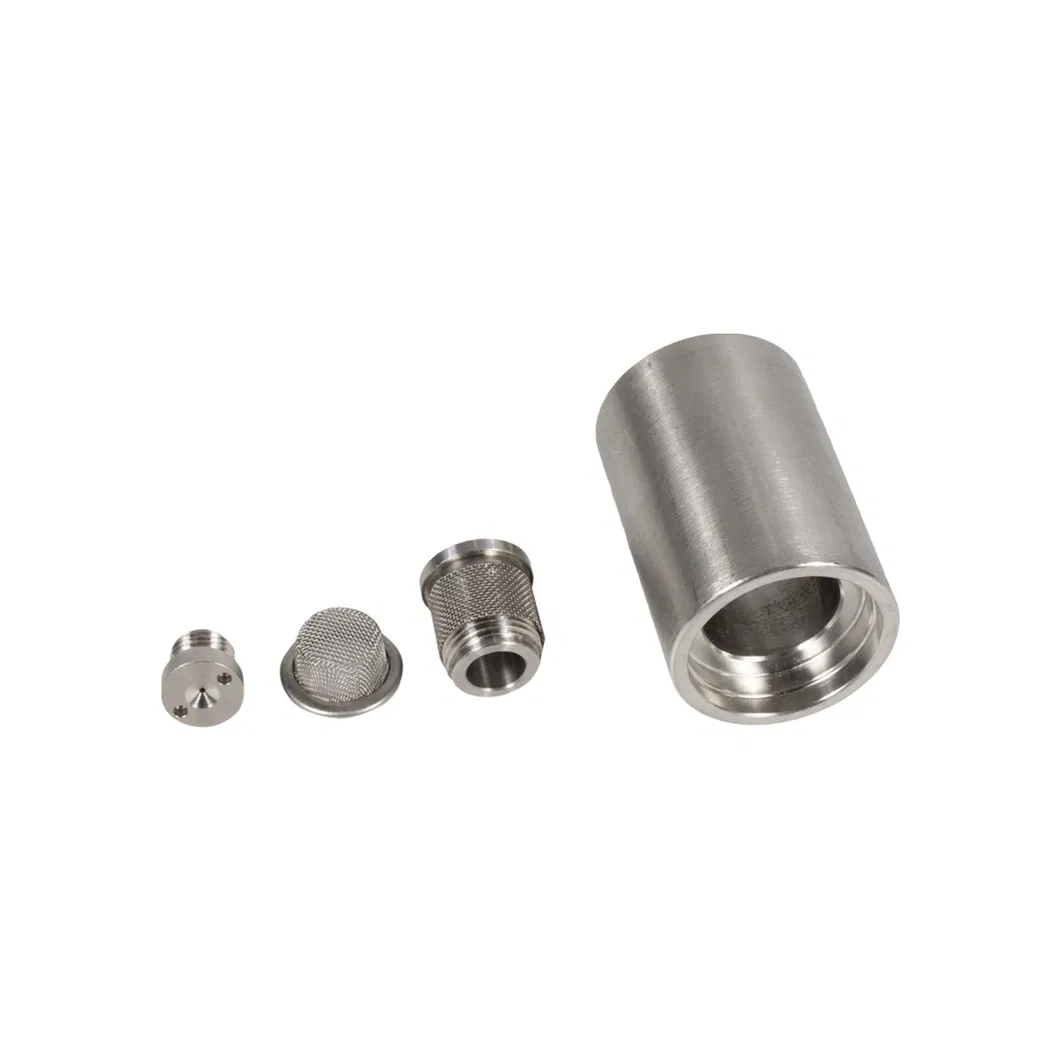

- Major parts include nozzle body, nozzle tips, whirl core, spray orifice, strainer mesh
- High spray momentum, the good ability for penetration of fire
- Very fine atomizing droplets, Good dispersion effect
- Fog-like droplets remain in the air for a long time
- Spray pattern: Full Cone
- Spray angles: 120°(other angles optional)
- Operating pressure:10~14Mpa

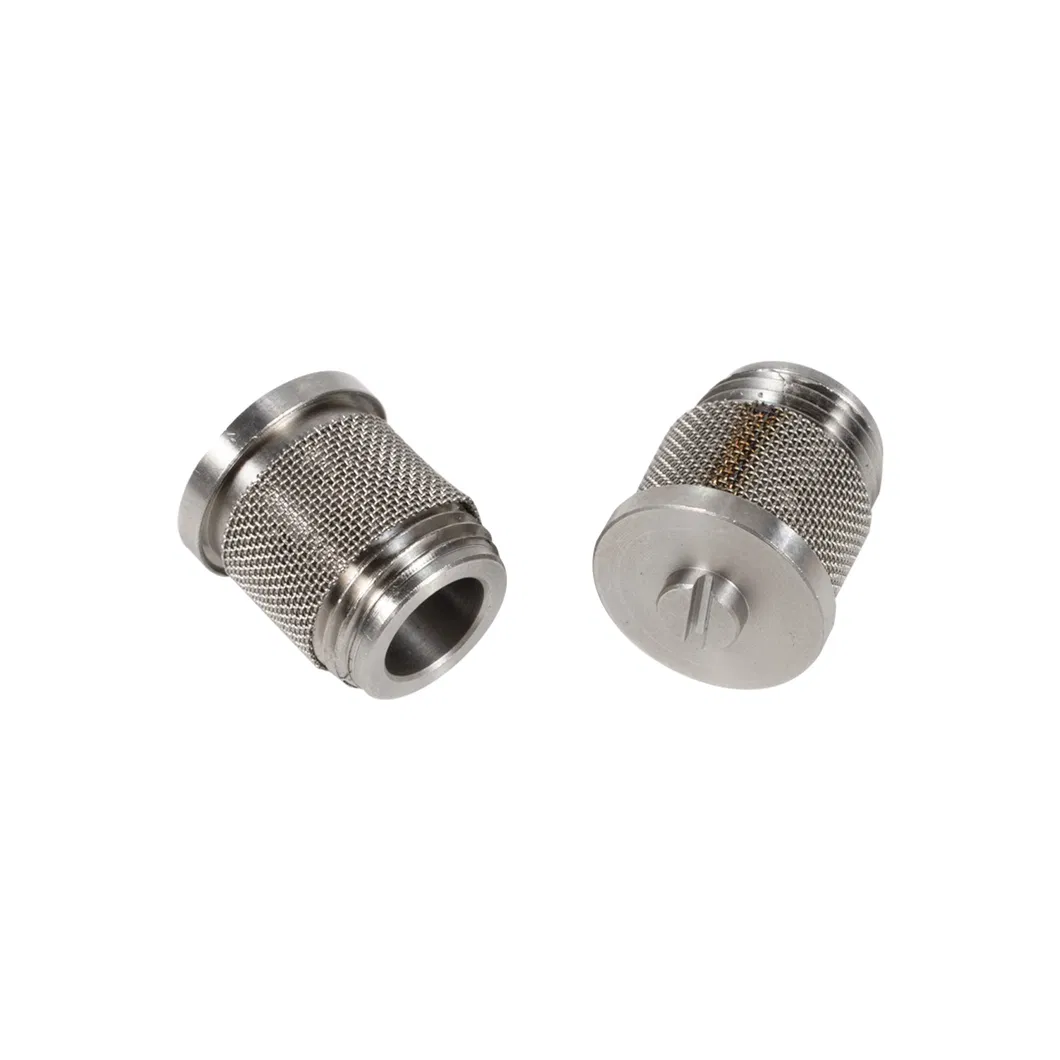

- Strainer: 40 mesh, 120 mesh, 200 mesh
- Class, I water mist: Dv0.5≤100μ, Dv0.99<200μ
- K-factors of open type: 0.17, 0.45, 0.95, 1.34, 2.04, 1.19, 1.87.
- K-factors of closed type: 1.25, 1.68, 2.04, others can be customized.

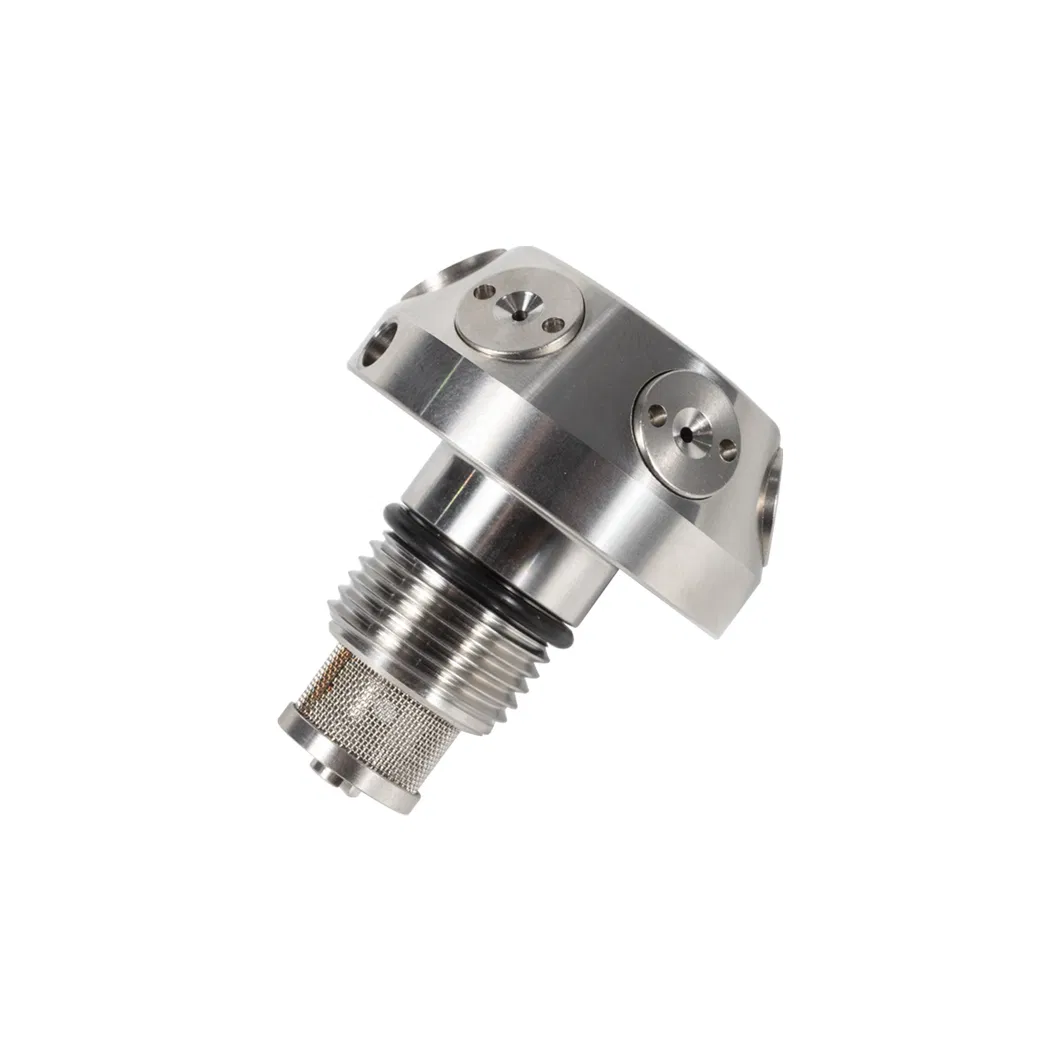

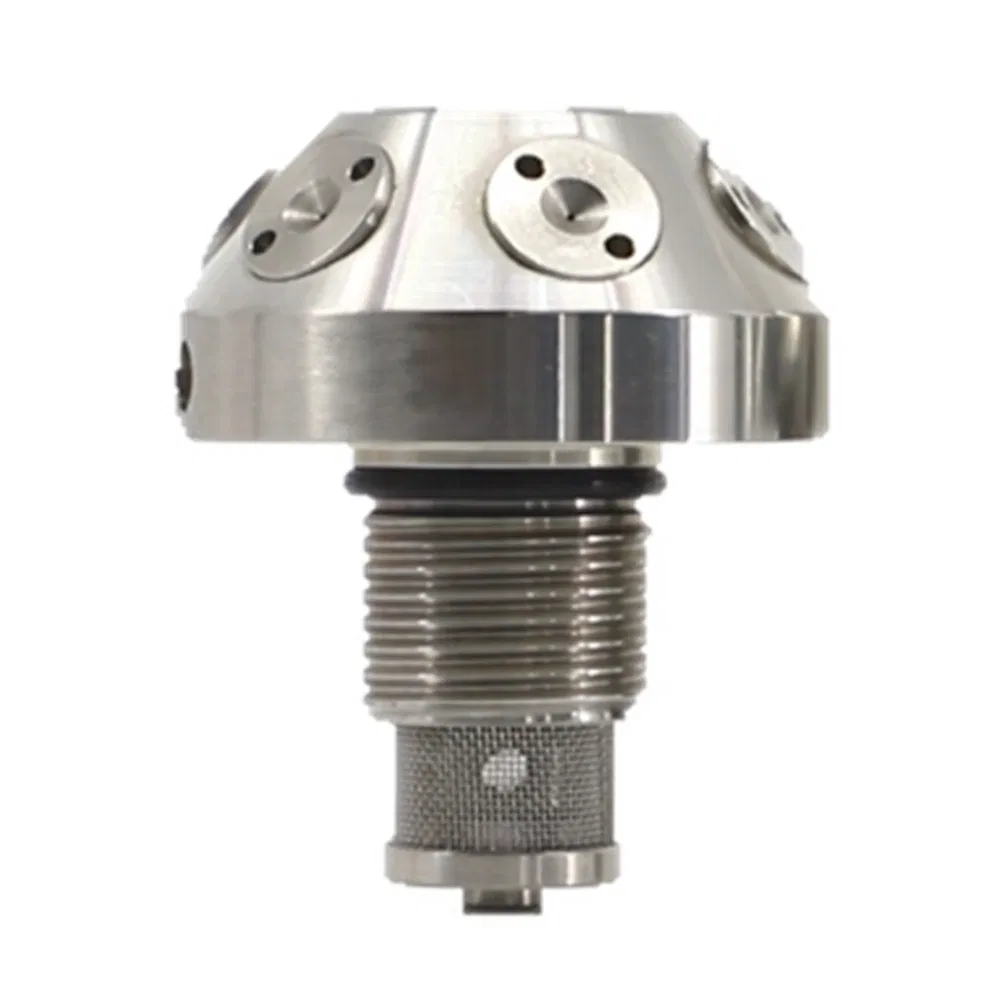

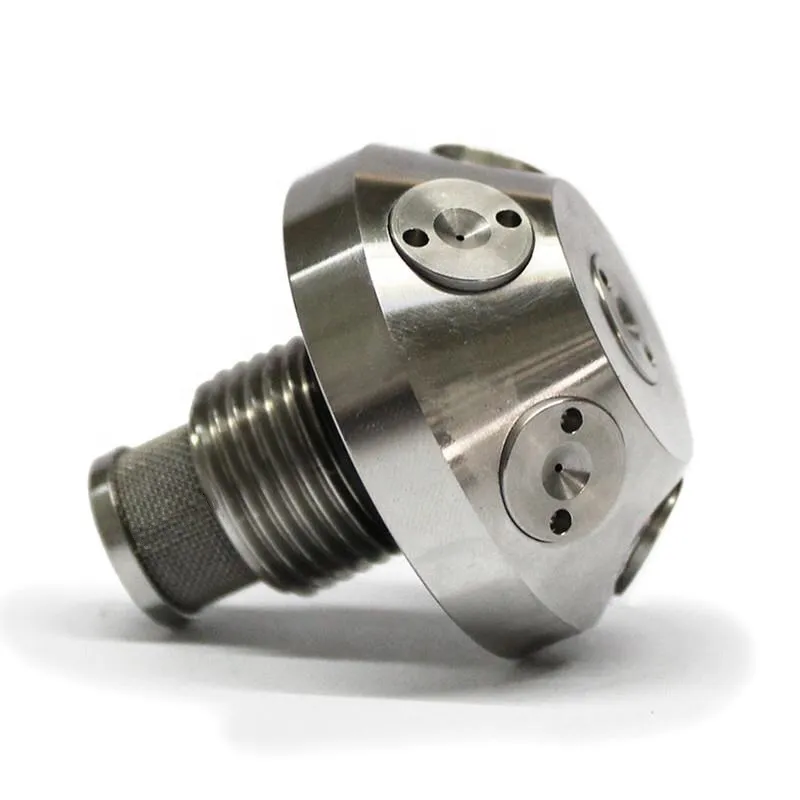

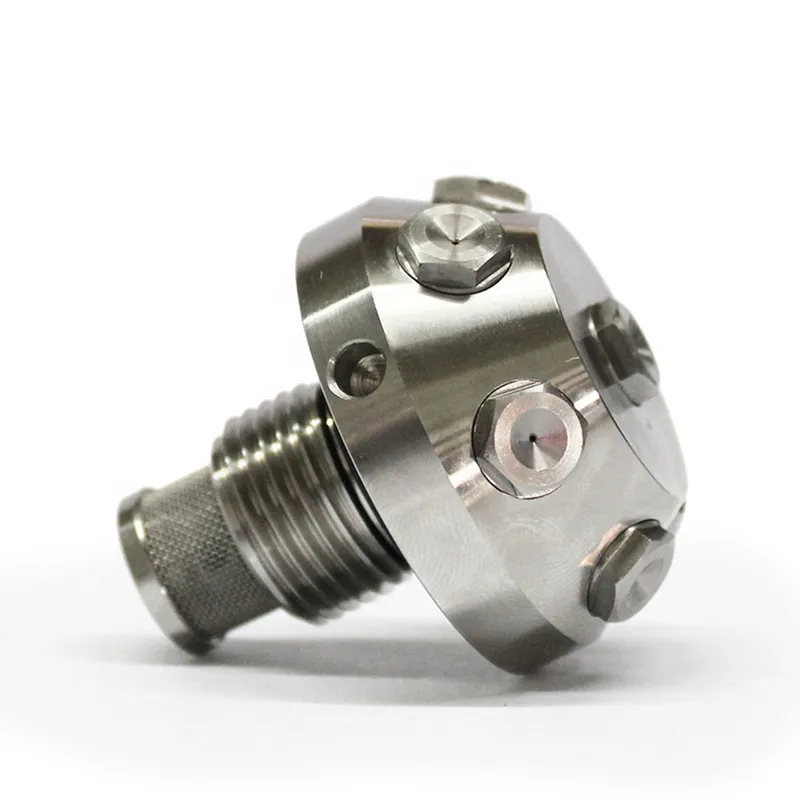

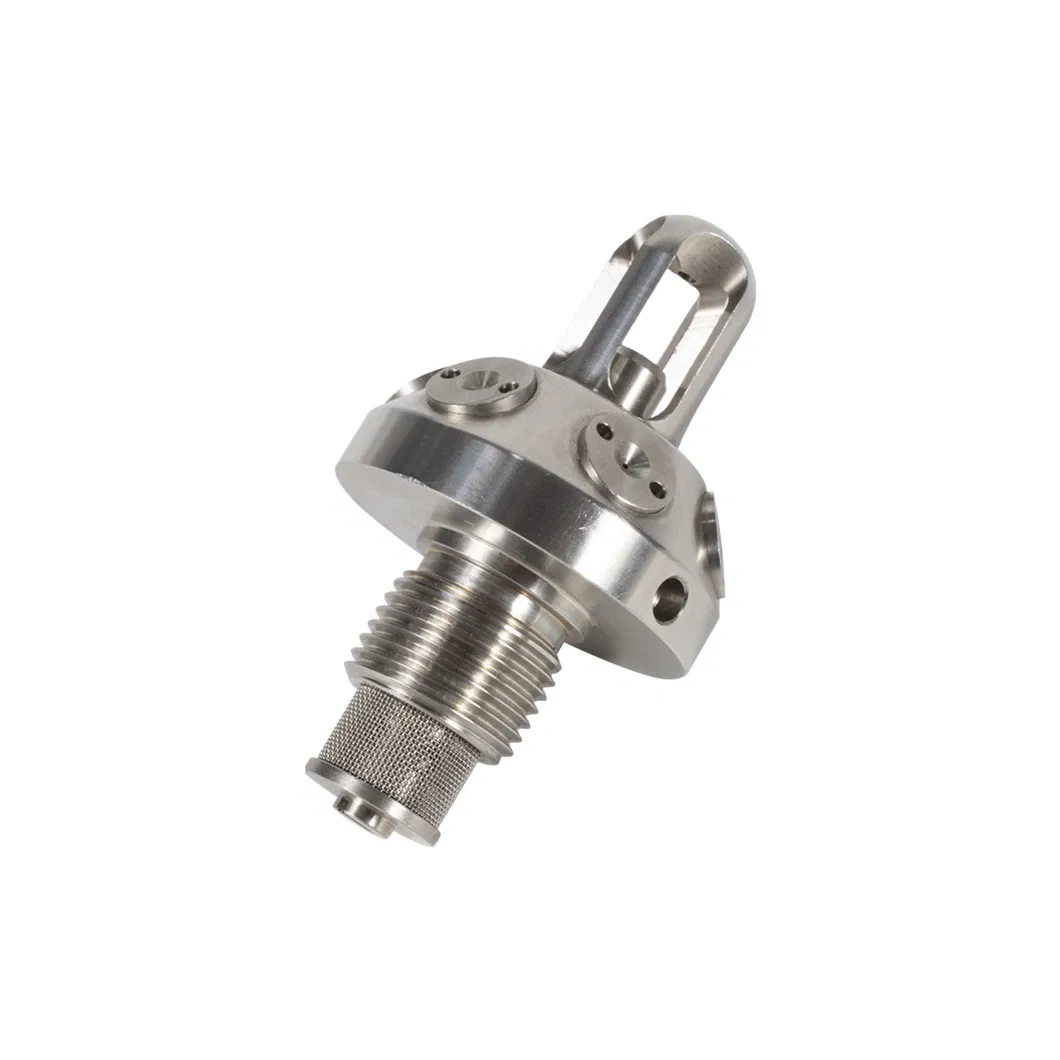

Nozzle:
Packaging:

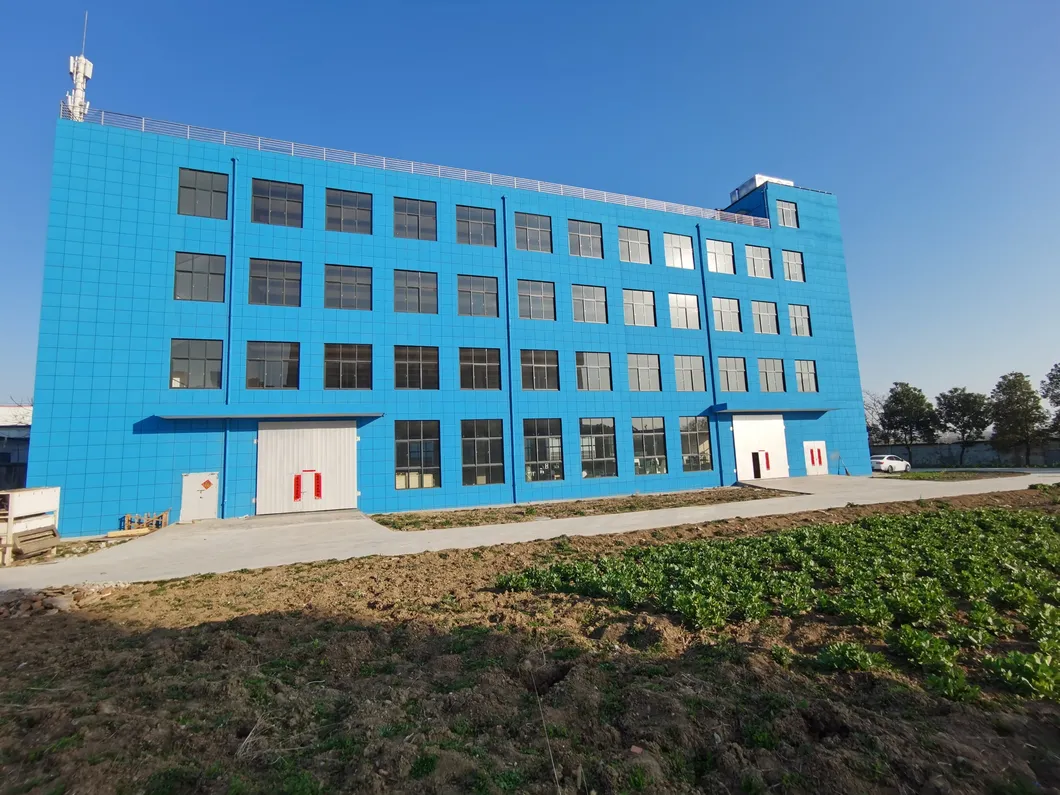

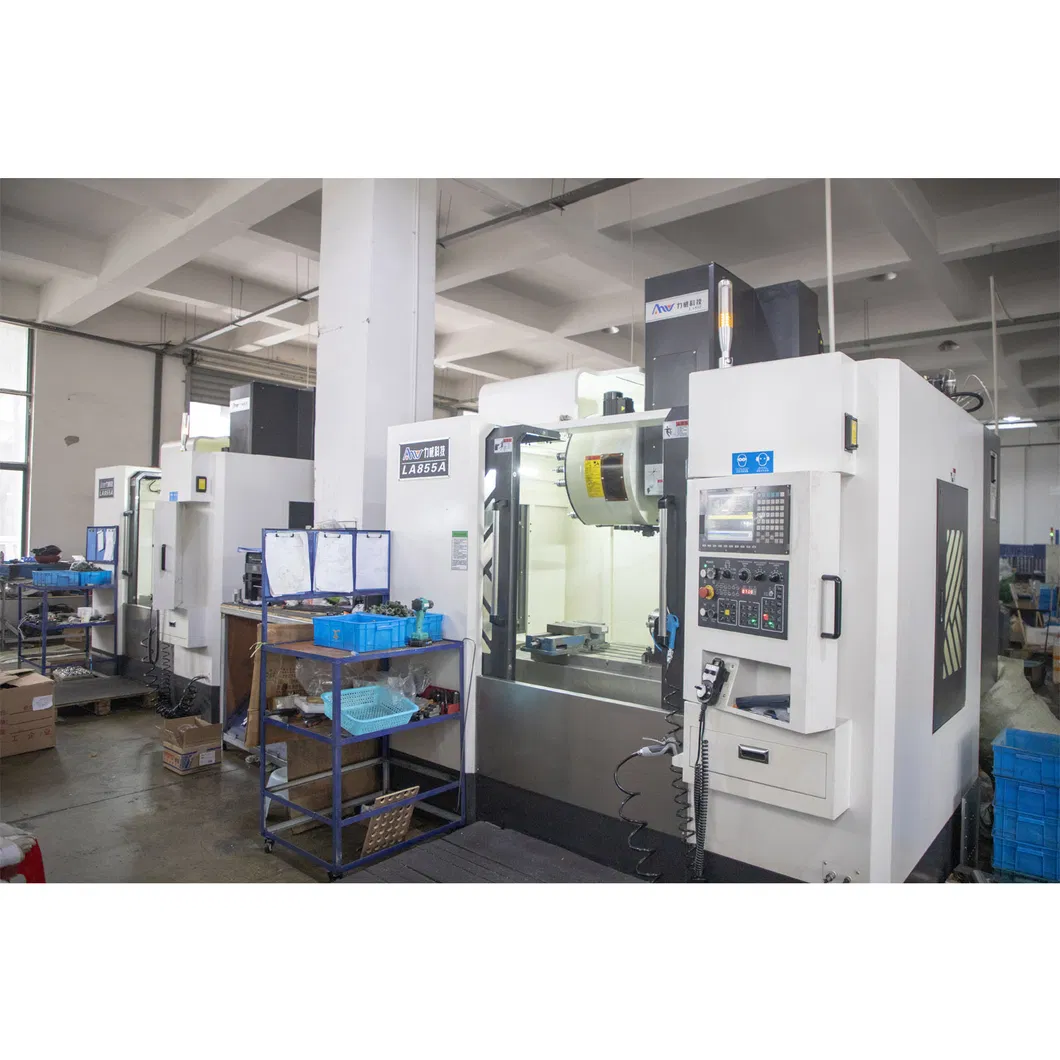

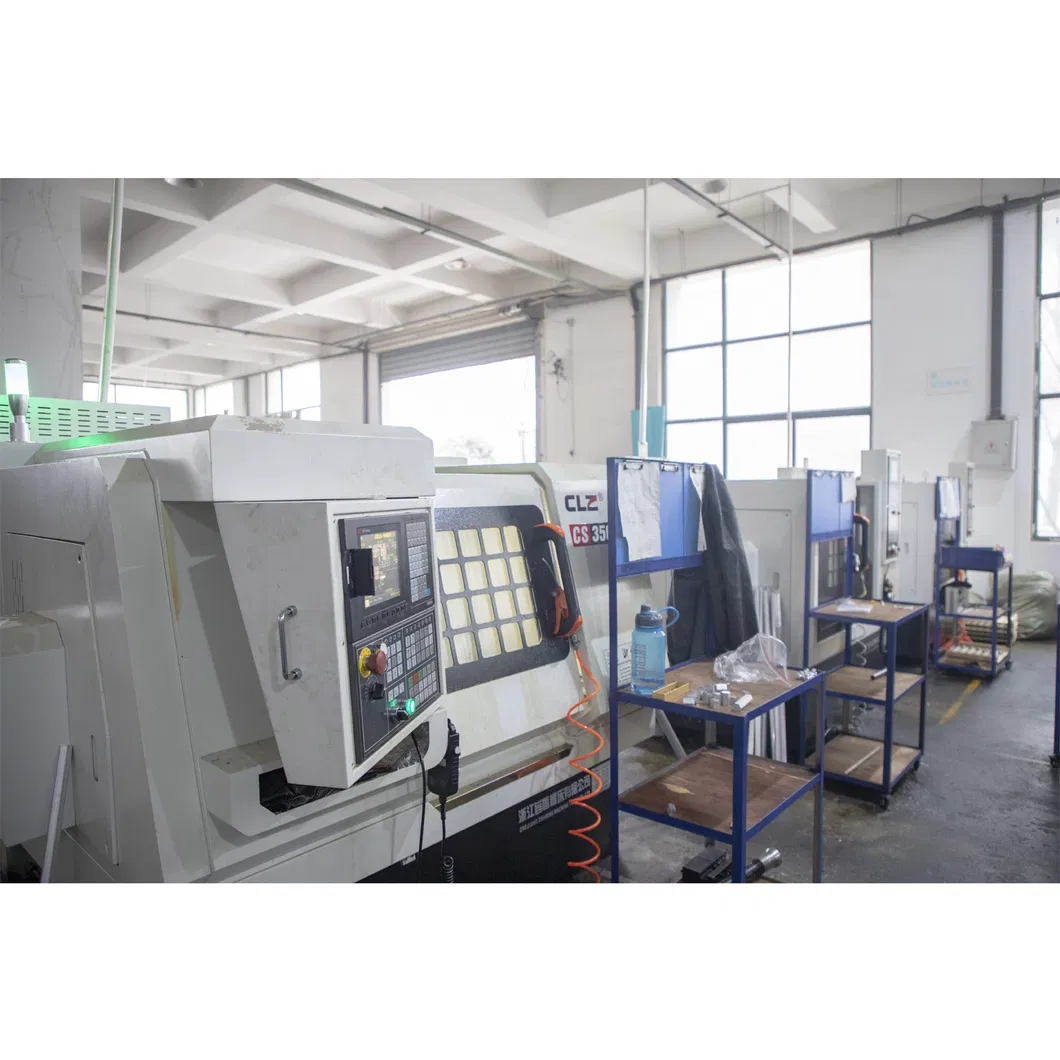

Factory Equipment:
