Fire Fighting Robot

Product Description

Model:

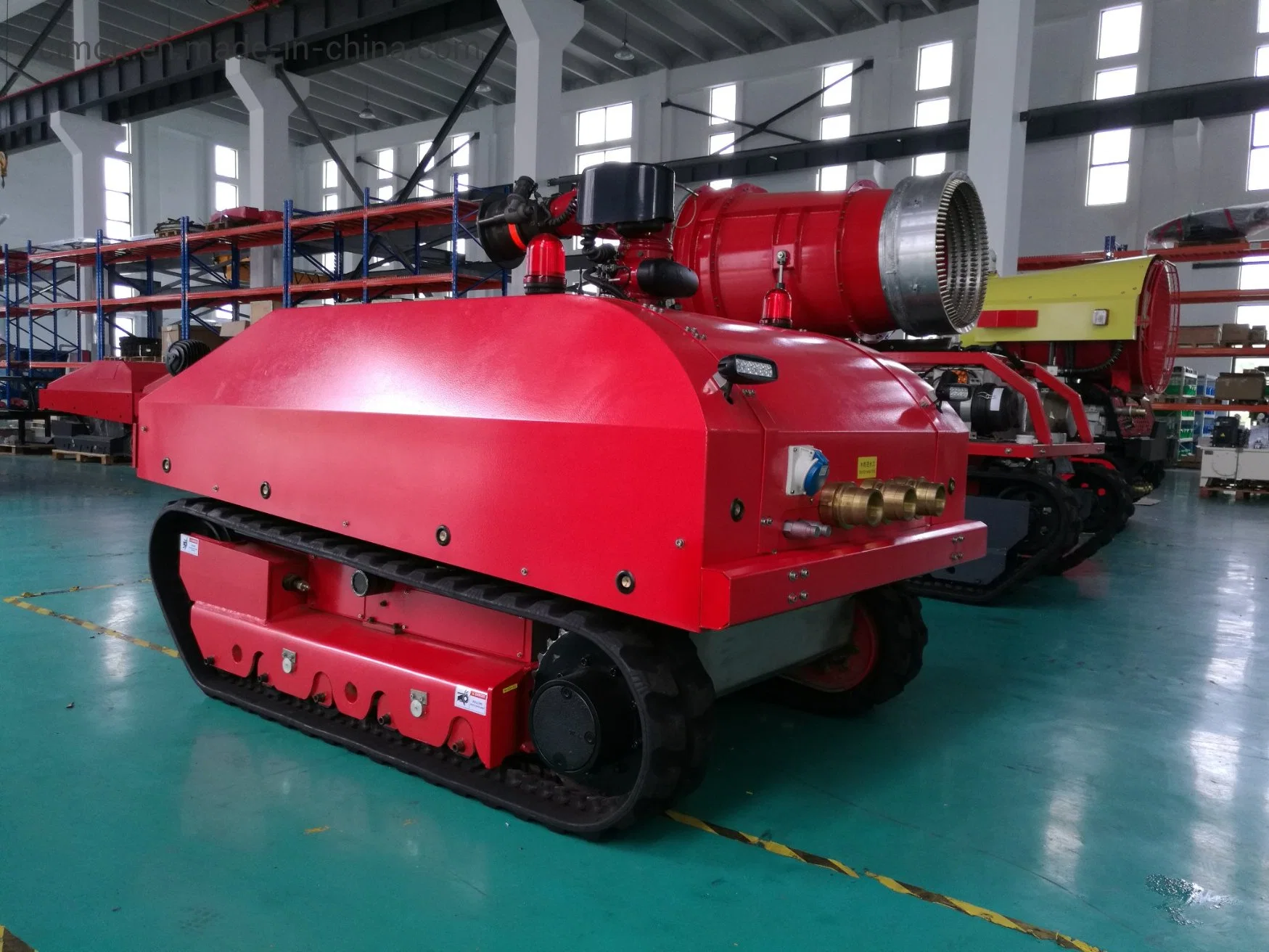

CIMC-M120D Fire fighting robot

Application:

The firefighting robot fire extinguishing system can effectively replace the trailer gun and mobile gun, and use its own power to remotely control the fire cannon to the required location; it effectively replaces the fire fighters near the fire source and dangerous places for reconnaissance and fire fighting, and the operator can be at a maximum distance Fire fighting is carried out 1,000 meters away from the fire source to avoid unnecessary casualties. Applicable occasions include but not limited to public (railway) road tunnel fires, subway station and tunnel fires, underground facility and cargo yard fires, large-span and large-space fires, petrochemical oil depot and refinery fires, large-scale poison gas and smoke accidents, and dangerous fire targets Detection, offensive and cover, fire fighting that is inaccessible to personnel, emergency rescue in dangerous situations.

Performance

  Curb Weight(kg):     1900
  Overall dimension(mm):L 2400×W 1350×H 1550(Include water cannon)
  Ground clearance(mm): 200
  Maximum flow of water cannon(L/s):120(Automatically adjustable)
  Water cannon range(m):≥95
Water cannon water pressure:≤12 kgs
  Foam cannon flow(L/s): ≥90
Water cannon turning angle:-135° to 135°
  Foam Cannon Range(m):≥55
Pitch angle of water cannon: -10° to 90°

Chassis

Model:        ATV Hydraulic self-propelled
Engine:       YANMAR Japan 43kw(2300r/min)
Gradeability:   Climbing or stairs 40 °, roll stability angle 30 °
Crossing obstacle height:       300mm
Driving speed: 0-5 Km/h
Cooling system: Maintenance-free oil cooling system
Water fume protects itself:Chassis automatic water fume protection system Operation: Electronic wired and wireless remote control (remote control distance 1200m)
   Fuel Tanker(L):80
Hydraulic oil tank capacity(L):100

1. Engine

Type:YANMAR Japan 4TNE98
Rated Power(kW/rpm):43.7/2300
Displacement(mL):3.3

Detailed Engine Information

Cooling Type	Oil cooler
Generator	14V 40A
Starter motor	2.3kW 12V
Cylinder	4
Bore / Stroke mm	98/110
Displacement L	3.319
Compression ratio	21.4
Engine speed RPM	2625
Engine Power kW	43.7
Torque Nm@1700RPM	197
Idle speed RPM	850
Fuel consumption g/kWh	200	Diesel density 0.835kg/dm³@15ºC
Engine net weight kg	225
Control Type	mechanical	Electric actuator control
Intake type	Turbo
Intakem volume ³/h	320
