Fire Fighting Sprinkler Fire Sprinkler
Product DescriptionPendent and upright and conventional and sidewall sprinklers are designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinkler......
Send Inquiry
Product Description
Product Description

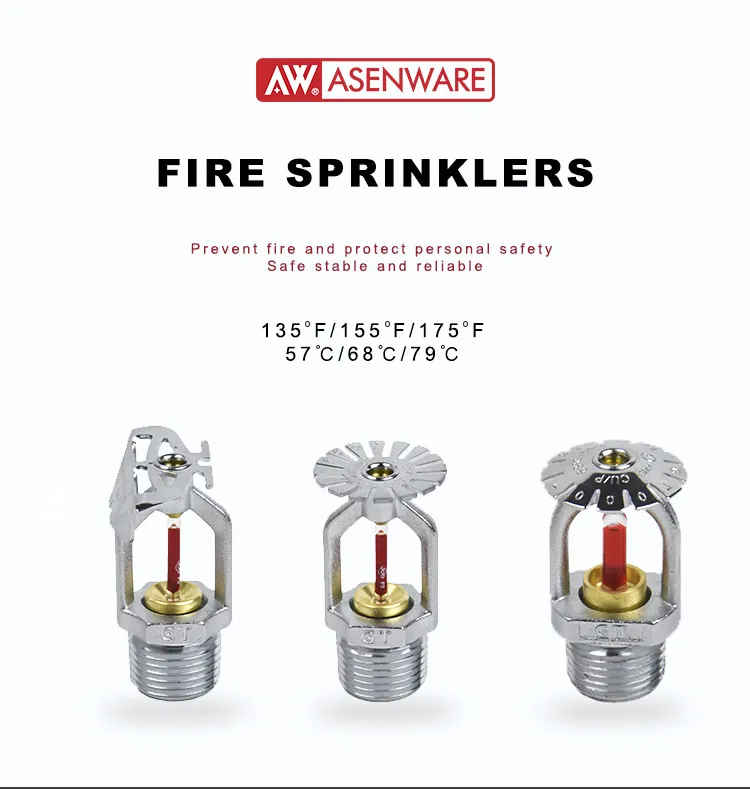

Pendent and upright and conventional and sidewall sprinklers are designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings. The sprinklers body is made of brass die-casting copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape. Pendent and conventional and sidewall sprinklers are installed with adjustable or non-adjustable escutcheon plates. These are intended to be installed finished ceilings. Escutcheon plate adjustment provides convenience in pendent and conventional sprinkler installation in case of areas with finished ceiling or walls.

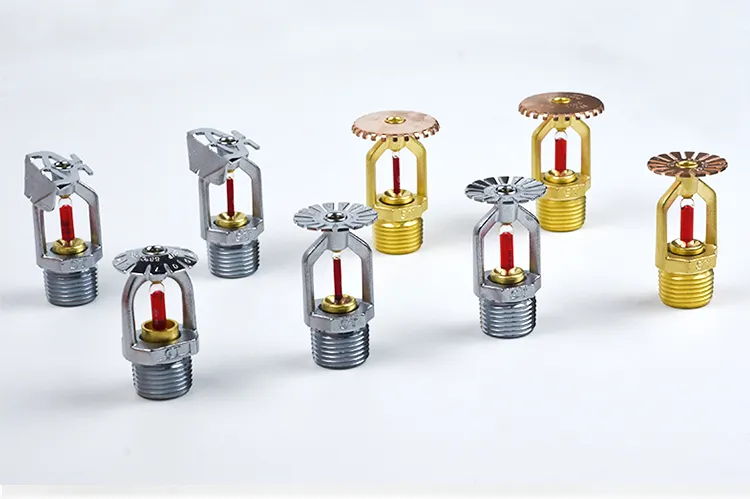

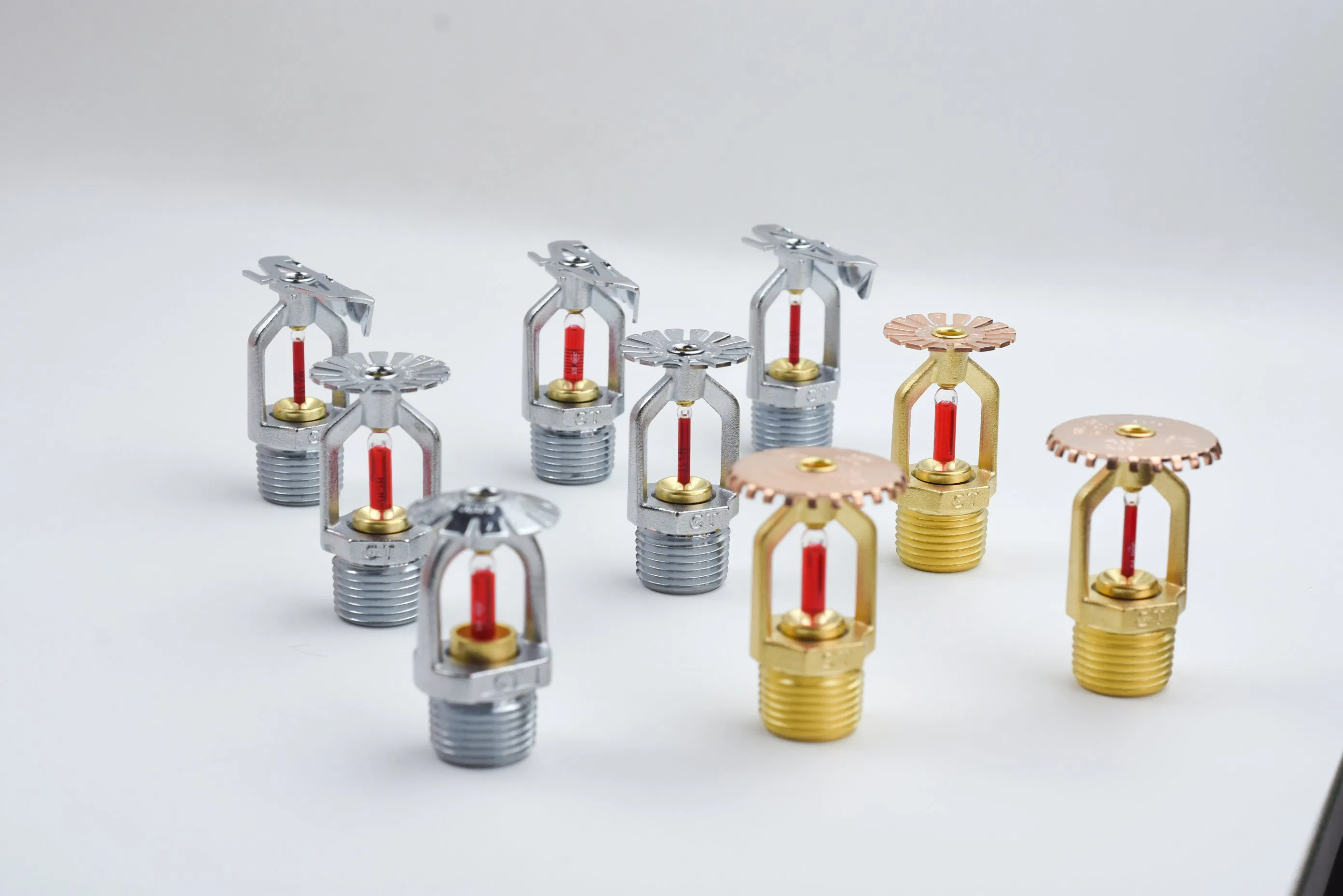

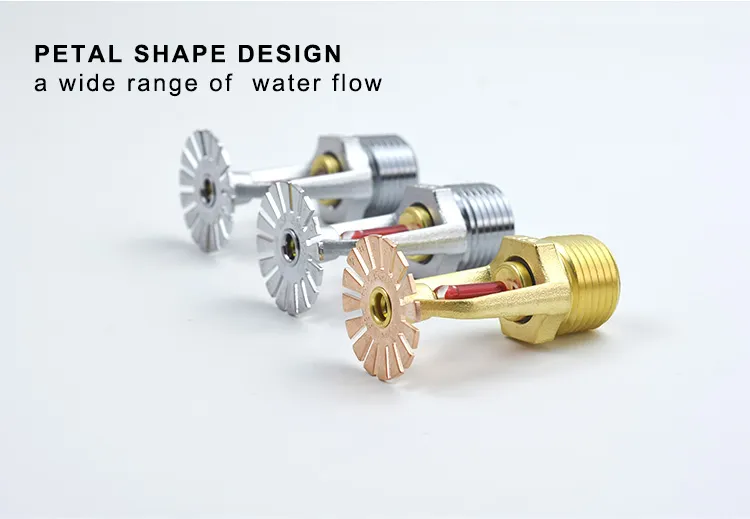

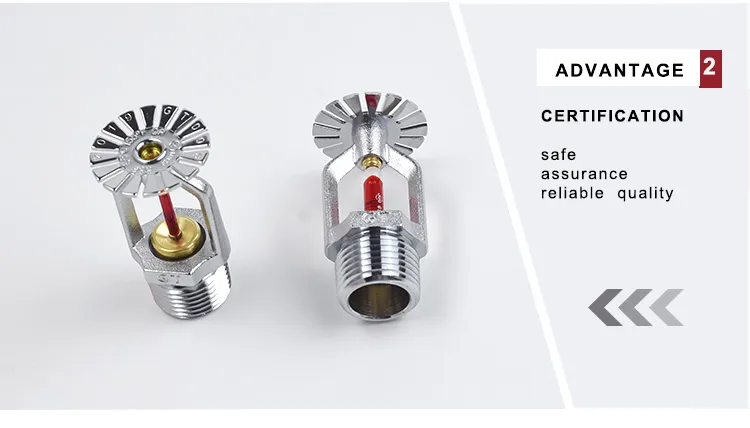

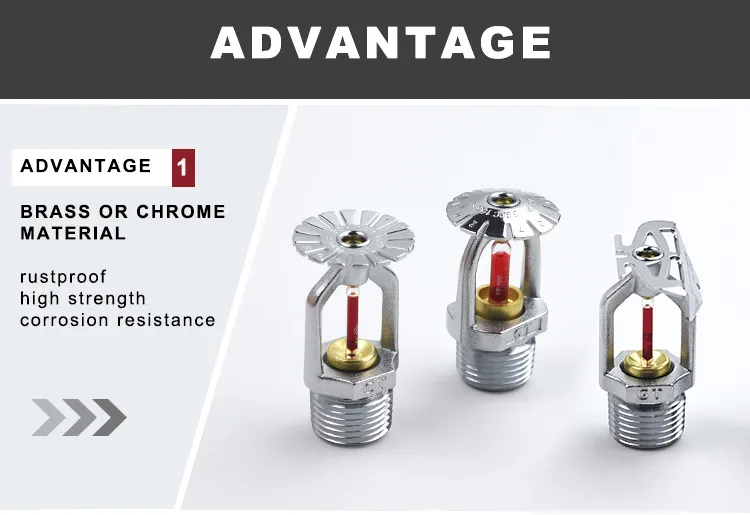

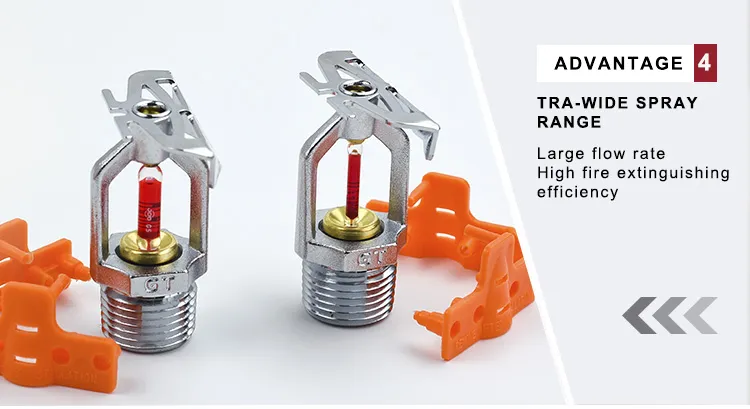

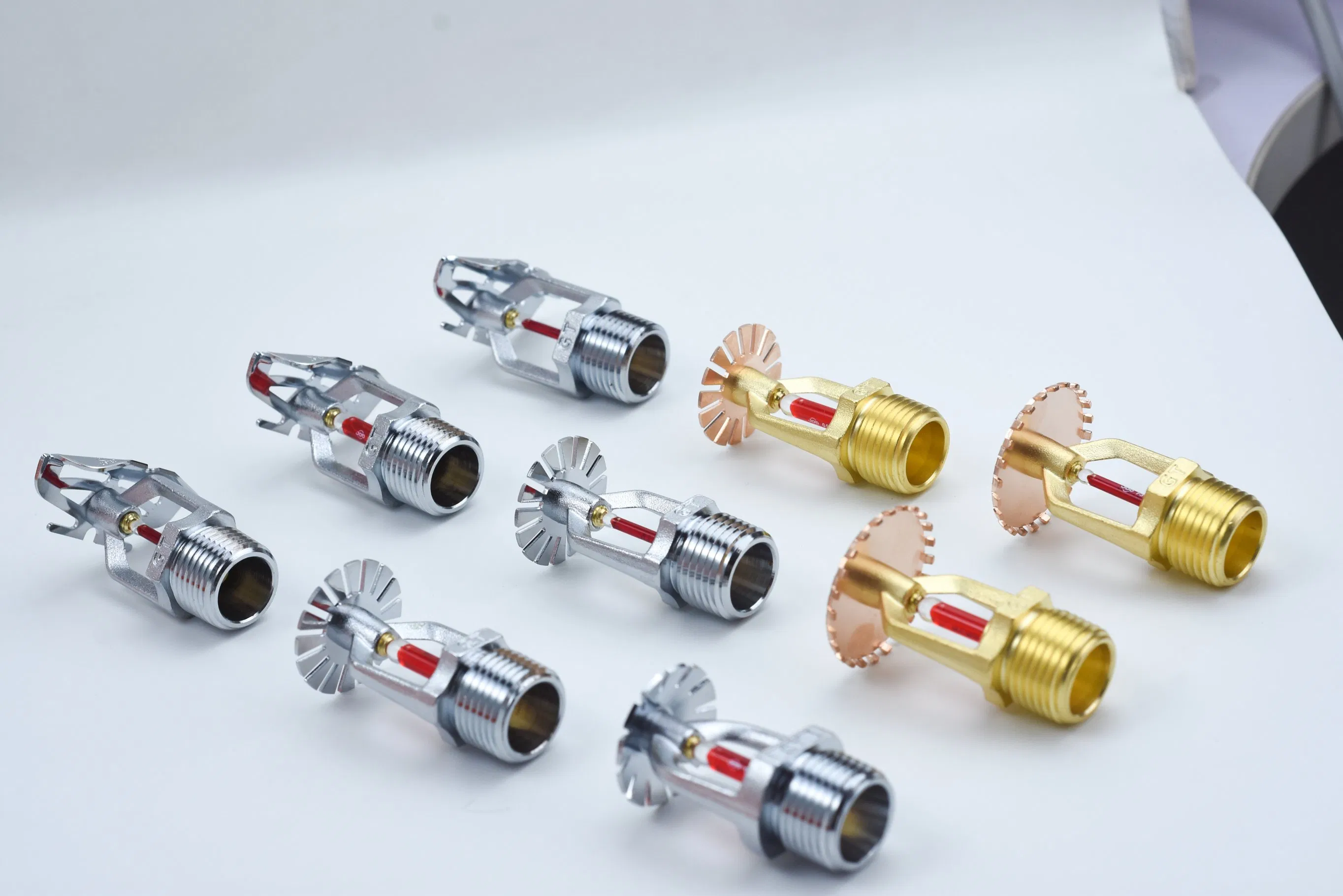

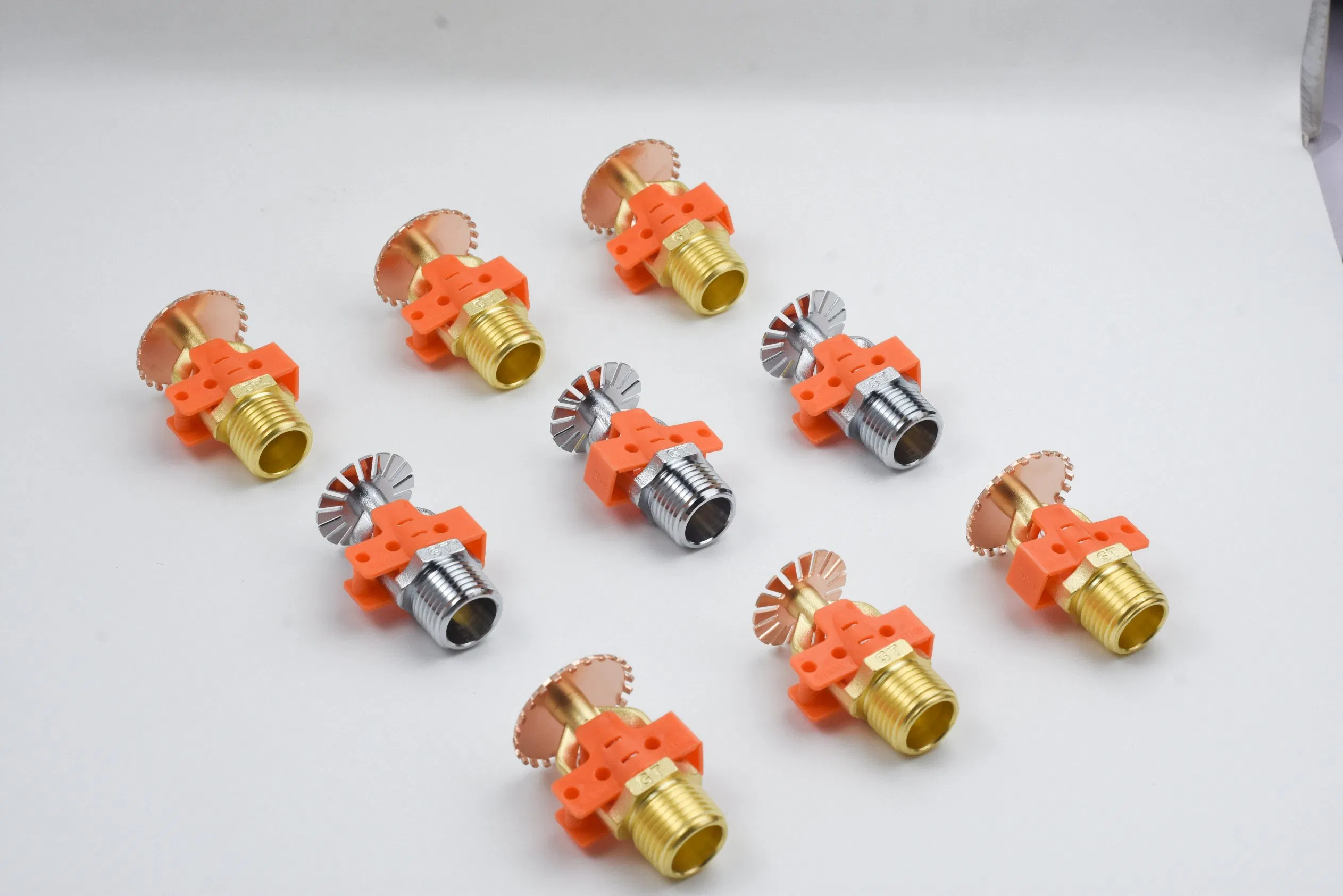

Detailed Images

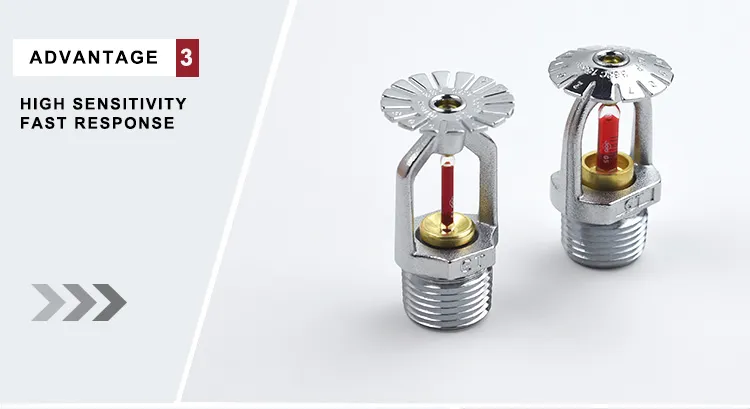

- Standard respone
Quick respone
K Factor 5.6 (80)
Size Information
TECHNICAL SPECIFICATION
Style | Pendent, Upright, Sidewall, Conventional and Recessed Pendent, Recessed Sidewall, Recessed Conventional |
K Factor gpm/(psi)½( L³/min(bar)½ ) | 5.6 (80) |
Nominal Thread Size | 1/2" NPT AND 1/2" BSPT |
Max. Working Pressure | 175 PSI (12BAR) |
Factory Test Pressure | 500 PSI (35BAR) |
Min. Operating Pressure | 7 PSI (0.5 BAR) |
Finish | Brass and Chrome Plated and White Plated Available |
Material Specification
Deflector | Brass UNS-28000 |
Bulb | Glass with Glycerin Solution JOB G5 or Day-impex-937 for Ut0001, Ut0003, Ut0005, Ut0007 JOB F3 or Day-impex-941 for Ut0002, Ut0004, Ut0006 |
Load Screw | Brass UNS-28000 |
Seal | Brass UNS-28000 |
Frame | Brass UNS-28000 |
Seal Washer | Belleville Washer coated on both sides with Teflon Tape |
Bulb Nominal Diameter | Standard Response 5.0mm, Quick Response 3.0mm |

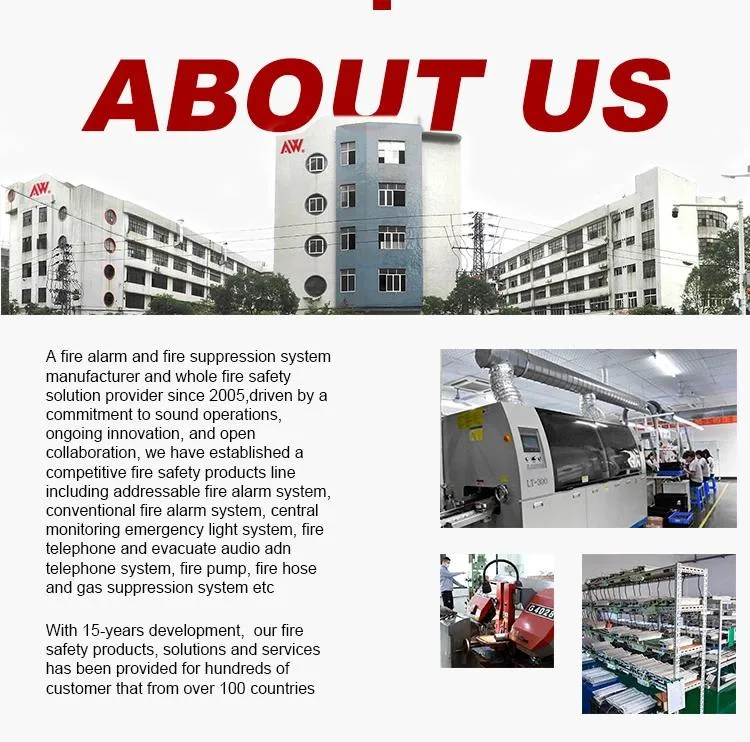

Company Introduction
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects. We are professional do fire alarm products about 16 years in China. Our fire safety products, solutions, and services are used in over 100 countries.
Product range:
1. Addressable fire alarm system (LPCB approved)
2. Conventional fire alarm system (LPCB, Intertek approved)
3. Addressable fire telephone system
4. Voice evacuation control panel and speakers
5. FM200 gas fire suppression system
6. Emergency light system (TUV approved)
Product range:
1. Addressable fire alarm system (LPCB approved)
2. Conventional fire alarm system (LPCB, Intertek approved)
3. Addressable fire telephone system
4. Voice evacuation control panel and speakers
5. FM200 gas fire suppression system
6. Emergency light system (TUV approved)
