Fire Sprinkler for Deluge Sprinklers Systems, Systems Sprinkler
Min.Order Quantity:200 Piece/Pieces Negotiable Trial OrderSupply Ability:10000 Piece/Pieces per DayPort:xiamenPayment Terms:L/C,T/TQuick DetailsPlace of Origin: Fujian, China (Mainland)Brand Name: GWModel Number: ZSTZ&ZSTXCertification: UL,FM or CCCNorminal diameter ( mm): DN15 or DN20Connecting......
Send Inquiry
Product Description
| Min.Order Quantity: | 200 Piece/Pieces Negotiable Trial Order |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Day |
| Port: | xiamen |
| Payment Terms: | L/C,T/T |
Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: GW
Model Number: ZSTZ&ZSTX
Certification: UL,FM or CCC
Norminal diameter ( mm): DN15 or DN20
Connecting thread: R1/2 or R3/4
Temprature rating: 68, 79 or 93 degree

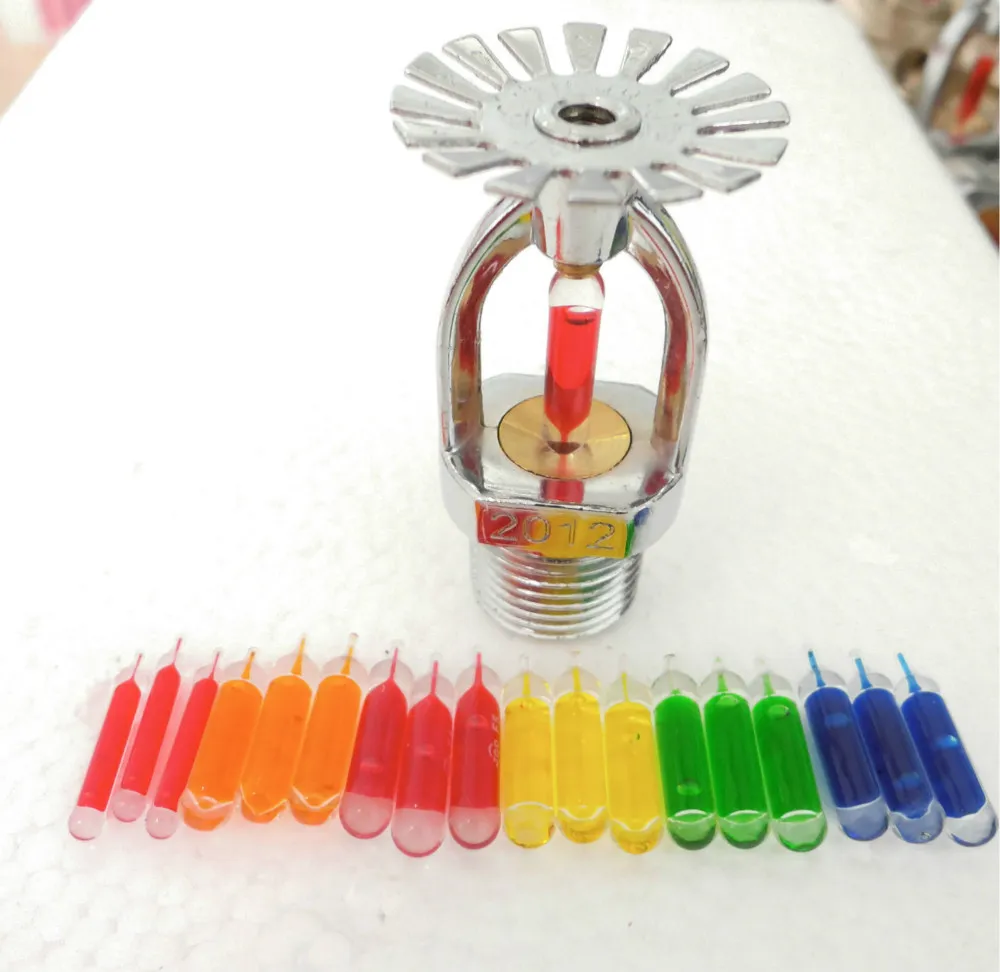

Glass bulb color: Red, yellow or green
Material: Brass
Flux coefficient: 80 or 115
Finish: Nickel or Chrome plated
Packing: 200PCS in a carton
Packaging & Delivery

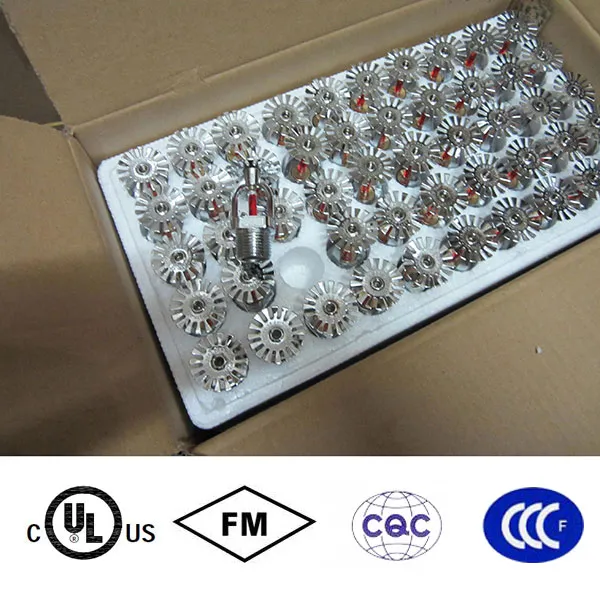

Packaging Details: carton packing: 37.5cmx20cmx27.5cm 200 pieces in one carton packing. 11KG weight each one carton.
Delivery Detail: 10,000 pieces can be ready for delivery within one week
specification:
(1) rated working pressure: 12 bars(1.2Mpa)
(2) airproof test pressure: 24bars(2.4Mpa)
(3) strength test pressure: 30bars(3Mpa)
(4) thread: 1/2",3/4"
(5) large coverage glass bulb sprinkler
(6) 20mm diameter model:
| Nozzle Temperature Rating | The maximum ambient temperature | Color liquid-filled glass ball |
| 57 | 38°C | Orange |
| 68 | 38°C | Red |
| 79 | 38°C | Yellow |
| 93 | 38°C | Green |
| 141 | 38°C | Blue |
