Fire Sprinkler for Fire Fighting with UL Certification
DESCRIPTIONThe UTEC Series Sprinklers described in this data sheet is designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with co......
Send Inquiry
Product Description

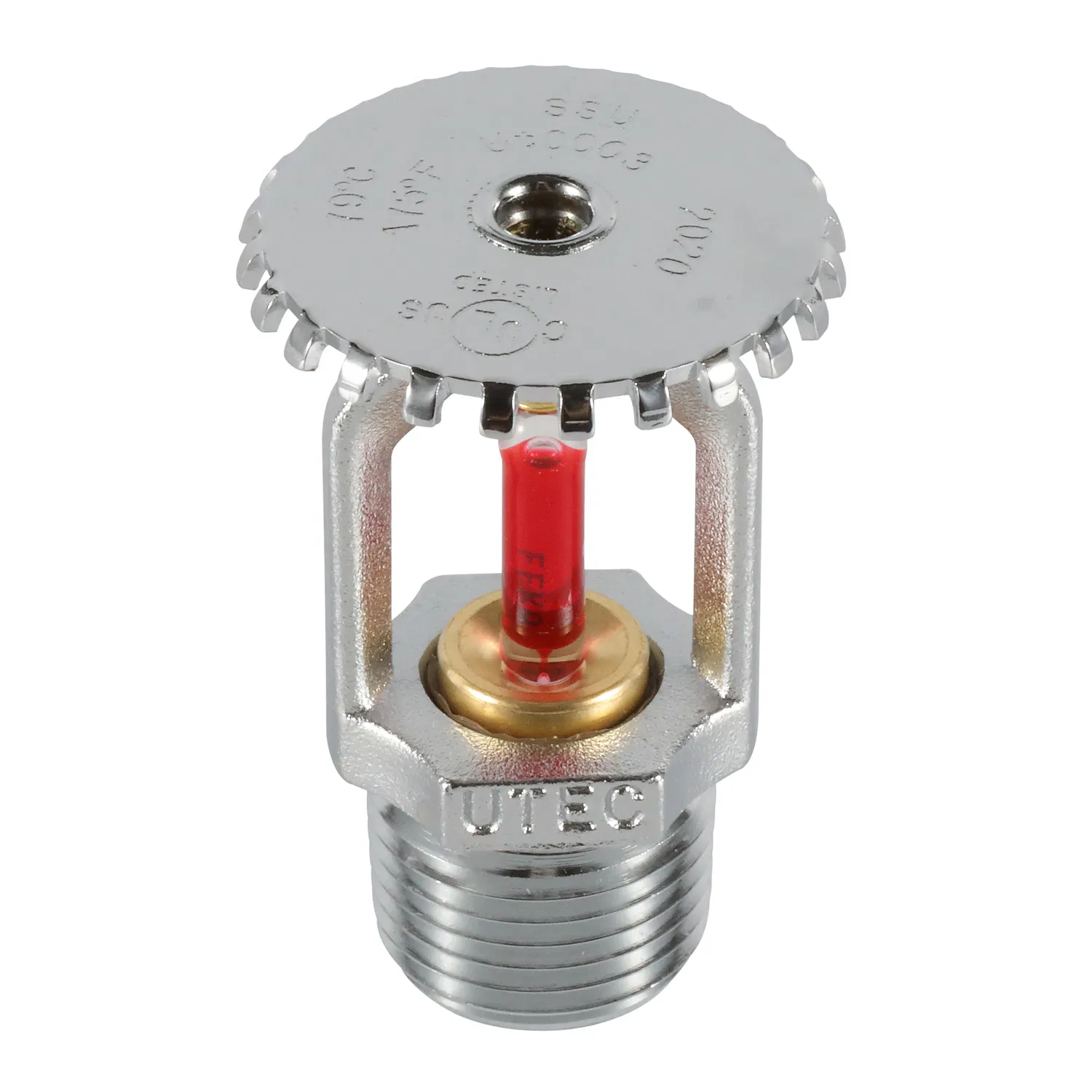

The UTEC Series Sprinklers described in this data sheet is designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13).
The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings.
The sprinklers body is made of brass forging copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape.

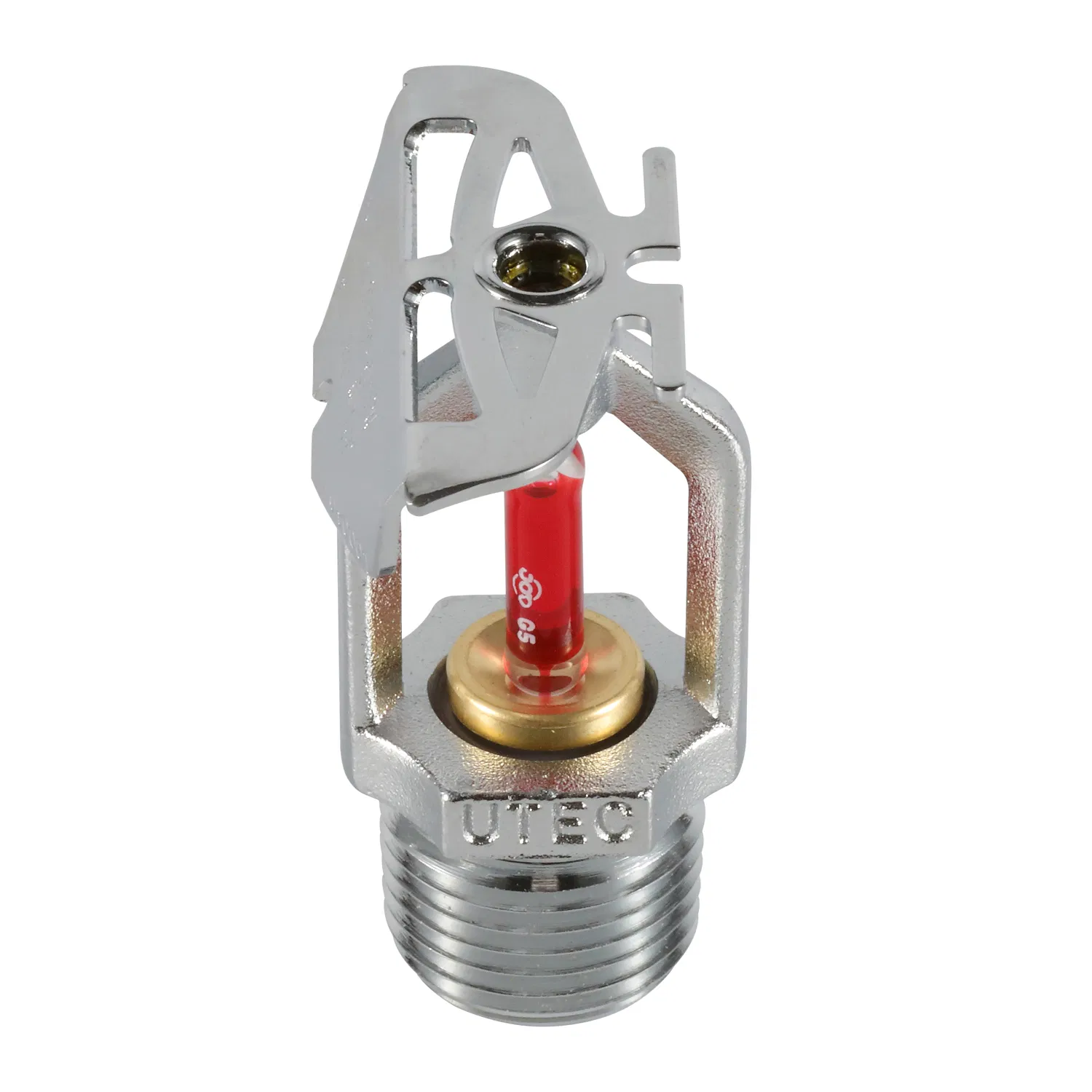

Pendent and conventional and sidewall sprinklers are installed with adjustable or non-adjustable escutcheon plates. These are intended to be installed finished ceilings. Escutcheon plate adjustment provides convenience in pendent and conventional sprinkler installation in case of areas with finished ceiling or walls.
Technical Specification
Style | Pendent, Upright, Sidewall, Conventional and Recessed Pendent,Recessed Sidewall, Recessed Conventional |
K Factor gpm/(psi)½( L/min(bar)½ ) | 5.6 (80) |
Nominal Thread Size | 1/2" NPT OR 1/2" BSPT |
Max. Working Pressure | 175 PSI (12BAR) |
Factory Test Pressure | 500 PSI (35BAR) |
Min. Operating Pressure | 7 PSI (0.5 BAR) |
Finish | Brass and Chrome Plated and White Plated Available |
Material Specification
Deflector | Brass UNS-28000 |
Bulb | Glass with Glycerin Solution JOB G5 or Day-impex-937 for Ut0001, Ut0003, Ut0005, Ut0007 JOB F3 or Day-impex-941 for Ut0002, Ut0004, Ut0006 |
Load Screw | Brass UNS-28000 |
Seal | Brass UNS-28000 |
Frame | Brass UNS-28000 |
Seal Washer | Belleville Washer coated on both sides with Teflon Tape |
Bulb Nominal Diameter | Standard Response 5.0mm, Quick Response 3.0mm |
Packaging & Delivery
Packaging Details: carton packing: 42cmx22cmx14.5cm and 100 pieces in one carton packing. 6.5KG weight each one carton.
Delivery Detail: 100,000 pieces can be ready for delivery within 40 days.
Different shipping way are available.

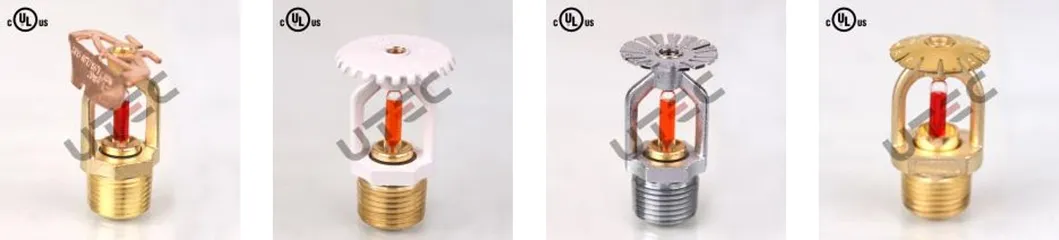

Products
SIN | Response type | Sprinkler Style | Temp. Rating F (C) |
Ut0001 | SR | Sidewall | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0002 | QR | Sidewall | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0003 | SR | Upright | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0004 | QR | Upright | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0005 | SR | Pendent | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0006 | QR | Pendent | 135(57) 155(68) 175(79) 200(93) 286(141) |
Ut0007 | SR | Conventional | 135(57) 155(68) 175(79) 200(93) 286(141) |
Our Company

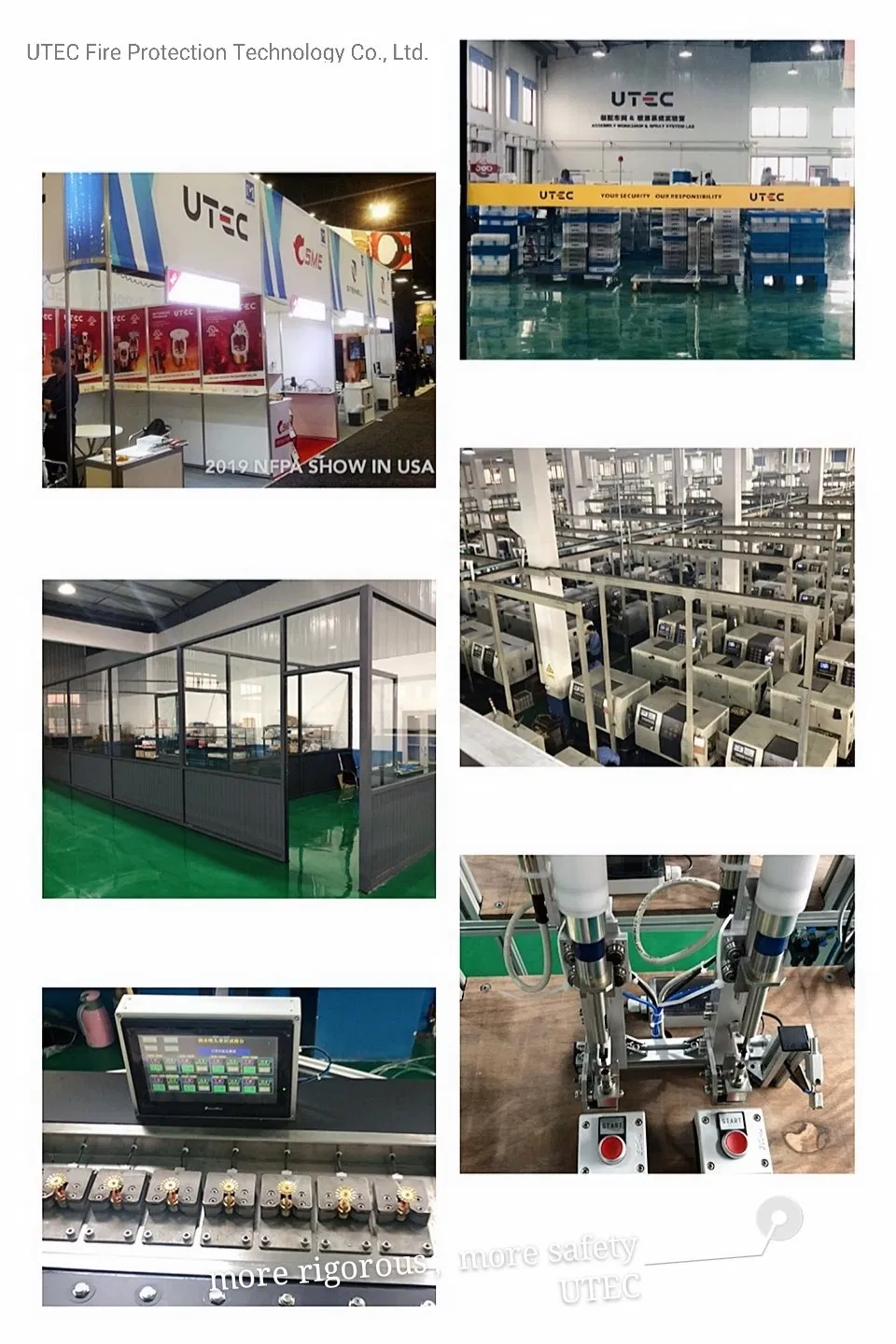

UTEC Fire Protection Technology Co., Ltd. is a leading and professional enterprise in Chinese fire industry, UTEC has been focusing on fire sprinkler system for 20+ years. We have developed a very robust and secure supply chain, which guarantees the company to supply clients steadily. In 2018 UTEC obtained UL list on K5.6 series sprinkler product, and are developing on sprinklers` FM approval to meet more requirements.
We aim to provide professional service and globally approved quality products.
