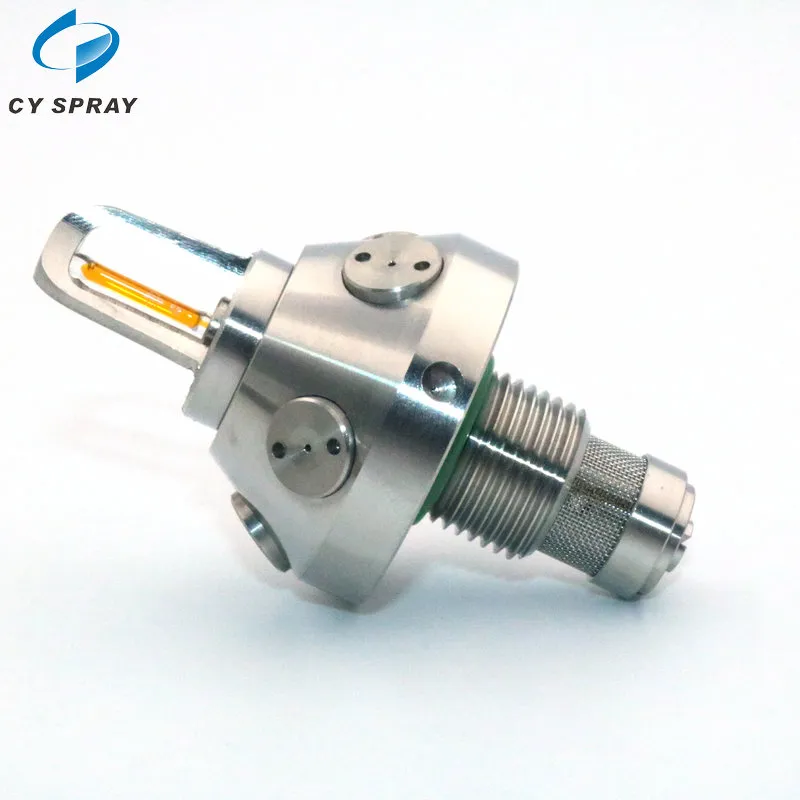

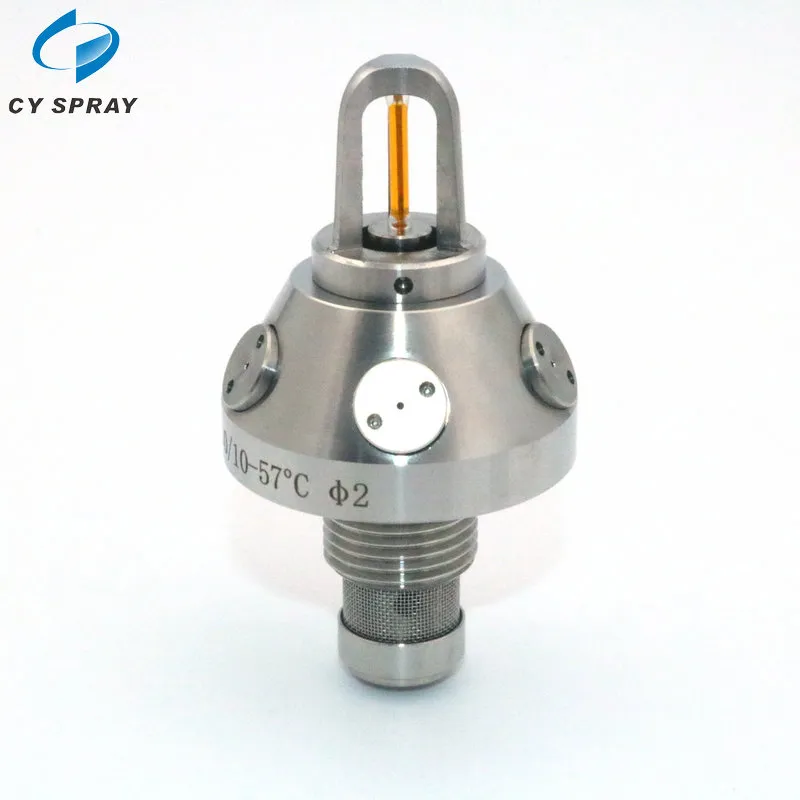

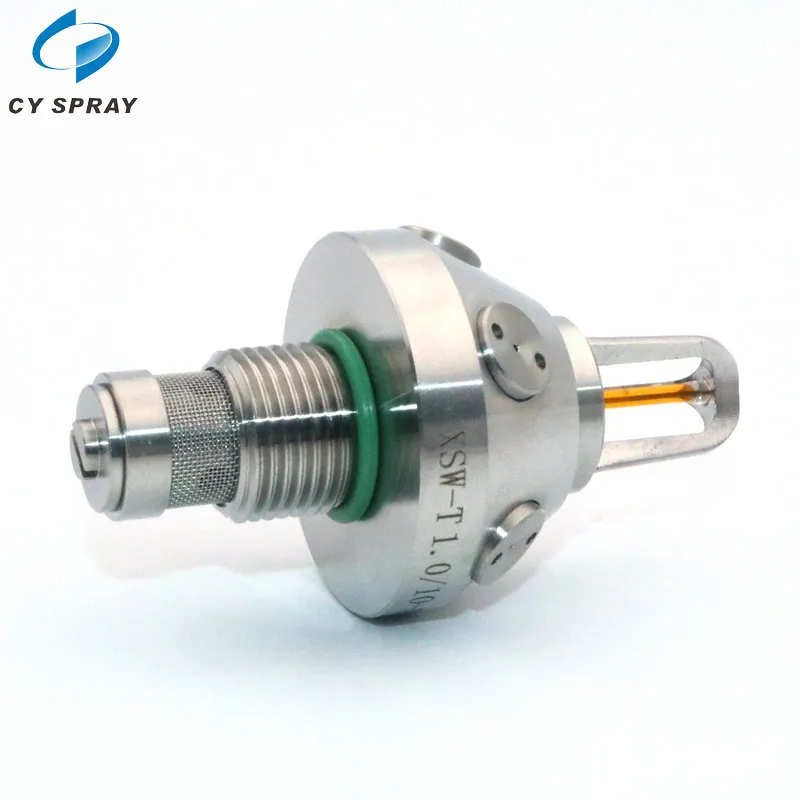

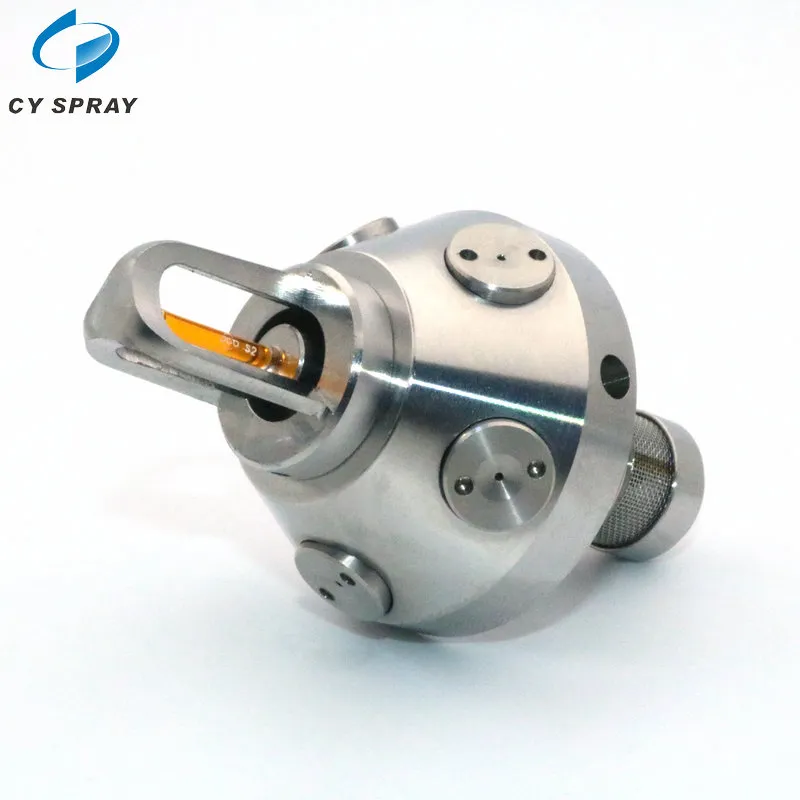

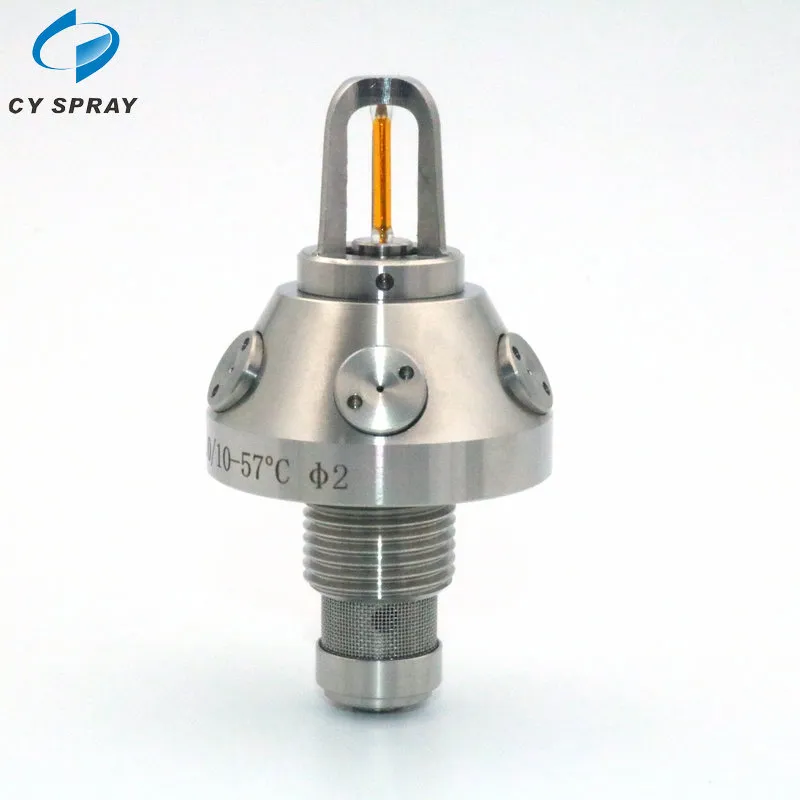

High Pressure Fire Fighting Fog Nozzle Close Type Water Mist Nozzle
Application:Water mist nozzles apply to extinguishing the hazardous solid surface fire in relatively confined space, combustible liquid fire and part of energized equipment fire. Mainly used in libraries, archives, high-rise buildings, production workshop, cable tunnel, oil immersed transformer, boi......
Send Inquiry
Product Description
Application:
Water mist nozzles apply to extinguishing the hazardous solid surface fire in relatively confined space, combustible liquid fire and part of energized equipment fire. Mainly used in libraries, archives, high-rise buildings, production workshop, cable tunnel, oil immersed transformer, boiler room, electronic information system room, generator room and other places.

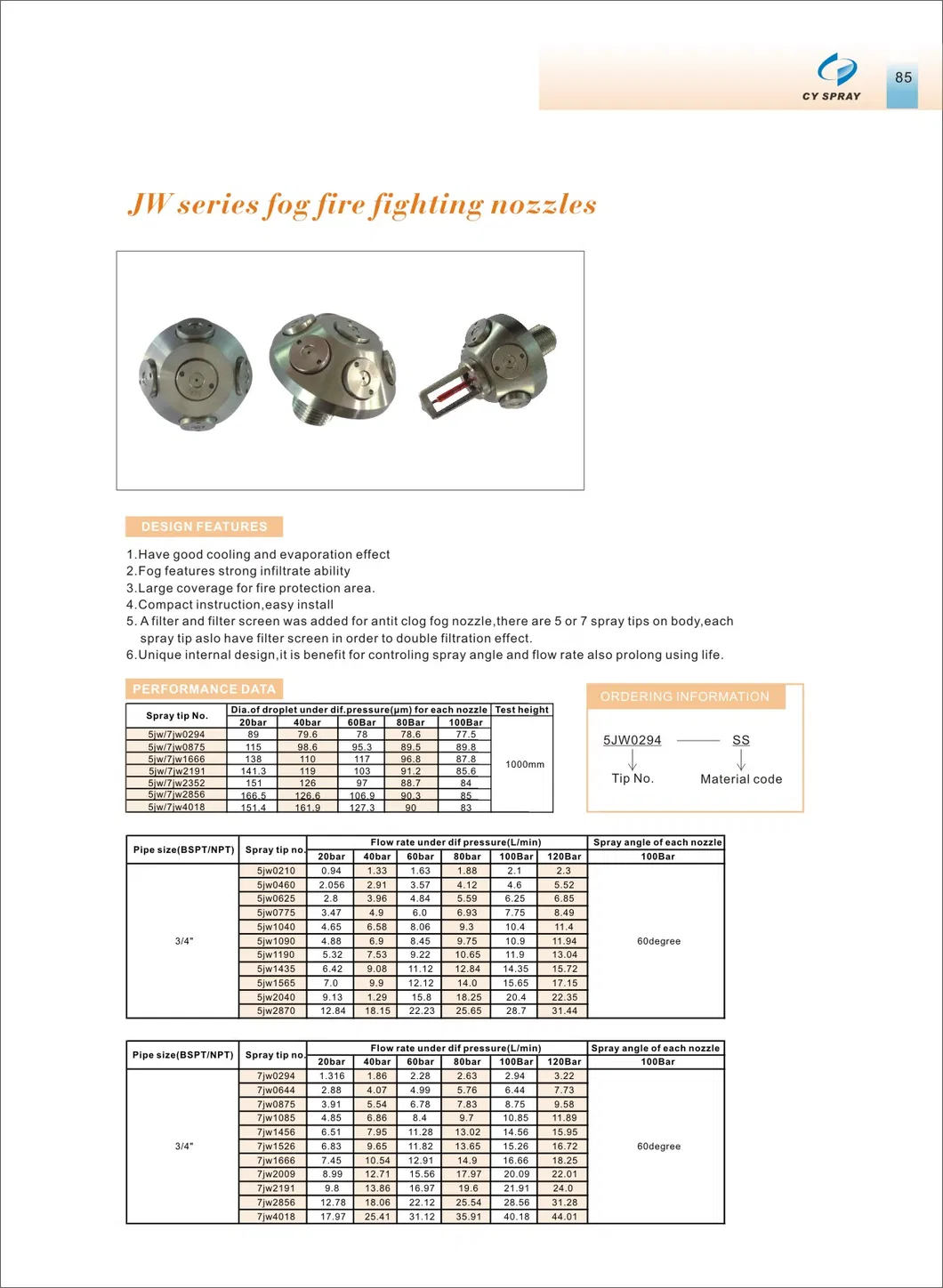

Performance data:
Model Code | K factor | Working | Flow rate(L/min) | Max. Distance between nozzles | Max fit height | Qty of Nozzles tips |
CY--T1.0/10-57ºC2 | 1.0 | 10-14Mpa | 10-11.8 | 3m | 5m | 5/6/7 |
CY--T1.5/10-57ºC2 | 1.5 | 10-14Mpa | 12-14.2 | 3m | 5m | 5/6/7 |
CY--T1.7/10-57ºC2 | 1.7 | 10-14Mpa | 15-17.7 | 3m | 5m | 5/6/7 |
CY--T2.0/10-57ºC2 | 2.0 | 10-14Mpa | 17-20.1 | 3m | 5m | 5/6/7 |
CY--T2.5/10-57ºC2 | 2.5 | 10-14Mpa | 20-23.7 | 3m | 5m | 5/6/7 |
CY--T1.0/10-57ºC2 | 1.0 | 5.0-10Mpa | 12.5-29.6 | 3m | 5m | 5/6/7 |
Operating Temperature/Colour | Brand | Model Code | Diameter | RTI[sqrt(ms)] |
57ºC2/Orange 68ºC/Red | JOB | F2/S2 | 2 | 19 |
57ºC/Orange 68ºC/Red | JOB | F2.5 | 2.5 | 24 |
