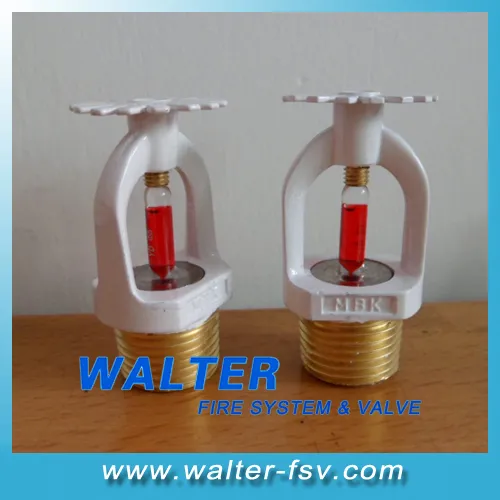

High Quality Upright Type Safety Fire Fighting Sprinkler

High Quality Upright Type Safety Fire Fighting Sprinkler
1- Body: Brass

2- Glass bulb: Job brand or YD brand (3mm or 5mm diameter)

3- Size: NPT or R1/2", 3/4", 1"

4- Working Temperture: 135F/57C; 155° F/68° C; 175° F/79° C; 200° F/93° C

5- Finished: Brass or Chorme Plated, White

Style

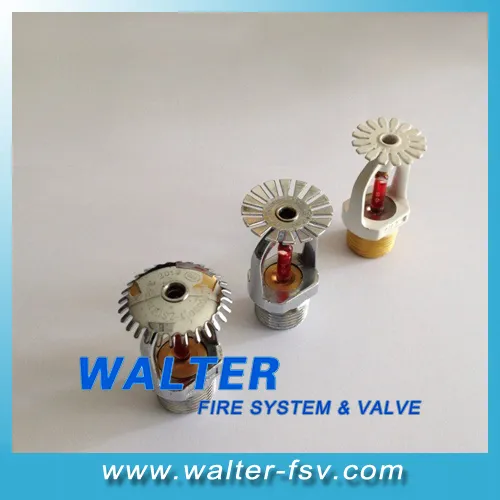

Upright - Pendent - Horizontal Sidewall - Concealed Pendent

Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response

Thread Size [Optional]: NPT1/2 or R1/2

Nominal Orifice Size: 1/2 Inch

Nominal K-Factor: 5.6 (U. S. )/80 (metric)

Max. Working Pressure: 175 psig/1.2 mpa (12 bar)

Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)

Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)

Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated

Escutcheon Finish: Chrome Plated or Color Coated In Any Color








Suzhou Walter Flow Control Equipment Co., Ltd. Which is a professional company and specialized in fluid equipment & firefighting equipment field. We are and always fashioning our long time business relationship from the advanced technology, excellent quality and good service.
Walter supply FM Approved, UL Listed, CE and relevant certificate products in Water Treatment Systems, Firefighting Project, High Buildings, Oil and Chemical Industry field.

Valve Products:
Gate Valve, Butterfly Valve, Check Valve, Ball Valve, Automatic control valves, Global Valve, Knife Gate Valve, Strainer, Flange and Pipe Fittings

Firefighting Products:
Firefighting Sprinkler System ( fire sprinkler, wet alarm valve, deluge valve, water flow detector, gate valve, butterfly valve etc...), Foam Fire Extinguishing Systems ( CO2 fire extinguishing equipment, pressure foam proportioning device ), Air Fire Extinguishing Systems ( FM200/HFC-227ea Systems ) and Fire Hydrant, Fire Hose, Fire Monitor etc;

Material: Cast Iron, Ductile Iron, WCB, Stainless Steel.

Cooperation create value, Walter always for the sake of customer, Choose Us, Reap Success.

For more information, please contact us directly.
