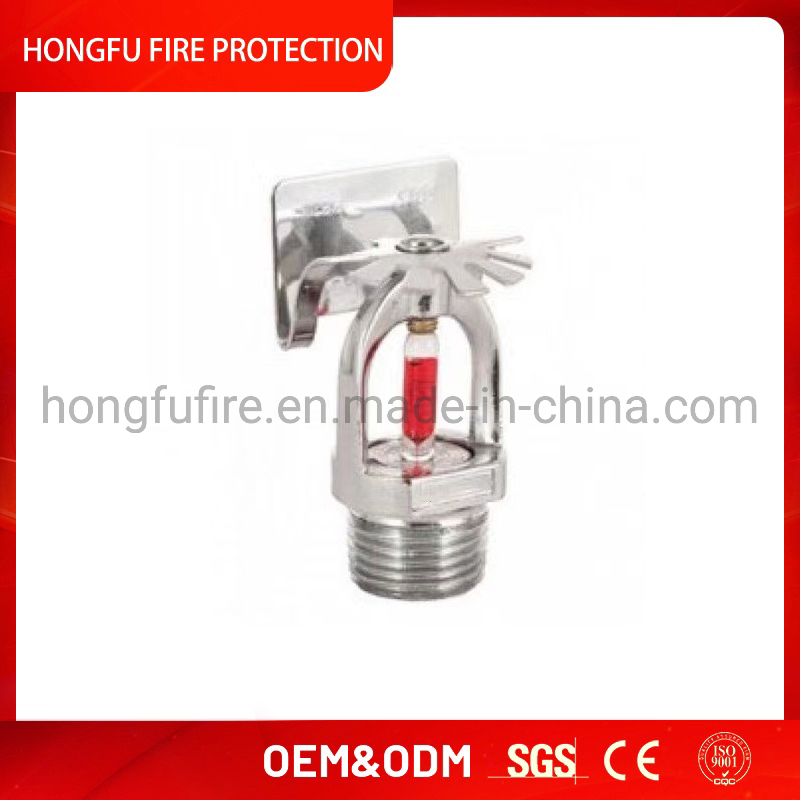

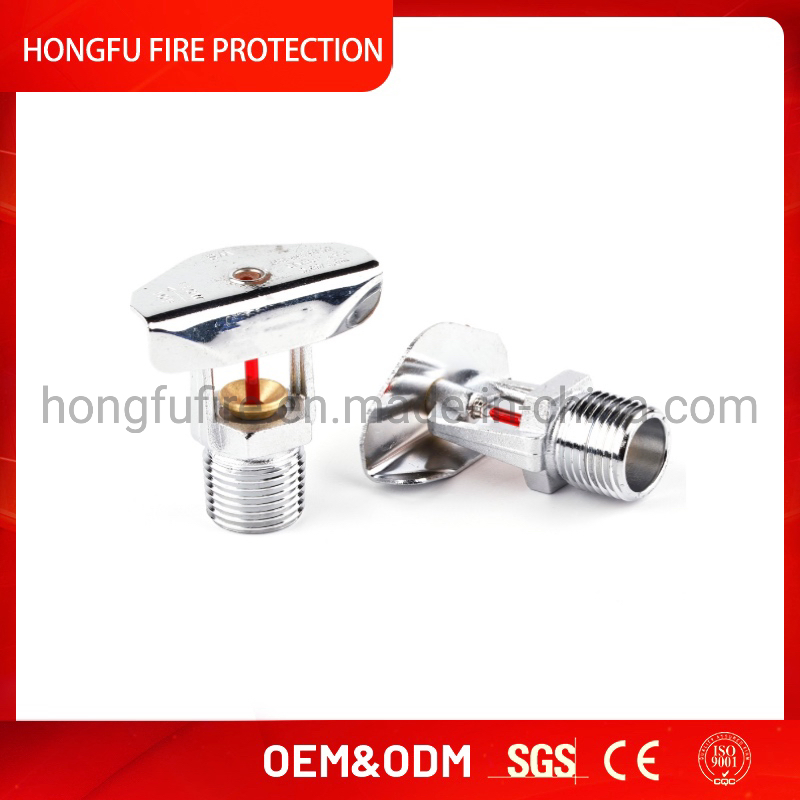

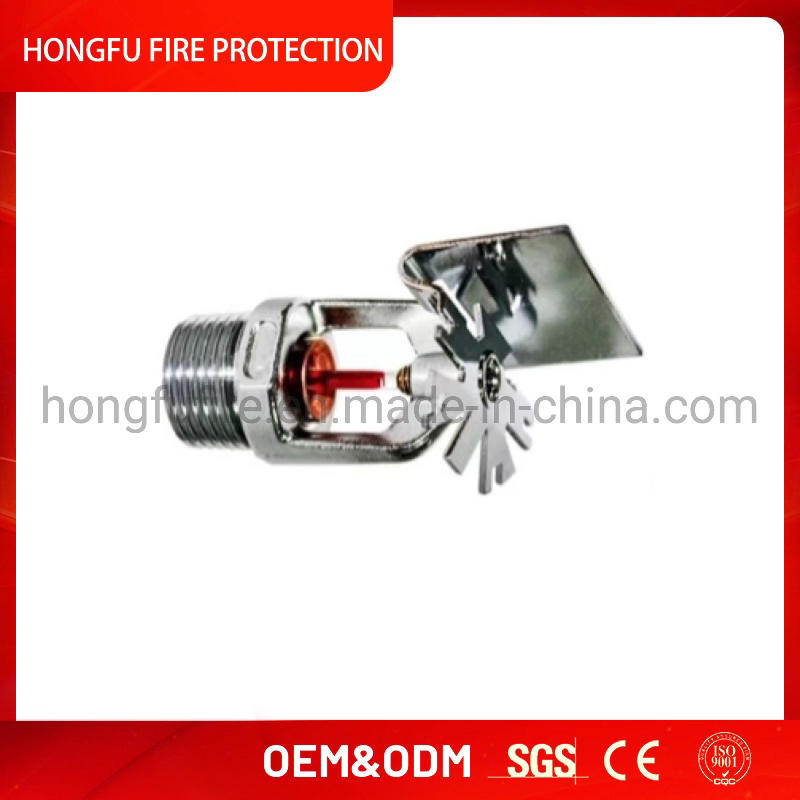

K80 Sidewall Fire Sprinkler with UL Approval for Fire Fighting System
Product DescriptionSprinklers can be used to detect fires,and through automatic sprinkler to control and extinguish fires. Automatic sprinkler system is the main components,It's widely used in high-rise buildings,hotels,shopping malls,factories,warehouses and other buildings,to meet the various ......
Send Inquiry
Product Description
Sprinklers can be used to detect fires,and through automatic sprinkler to control and extinguish fires.

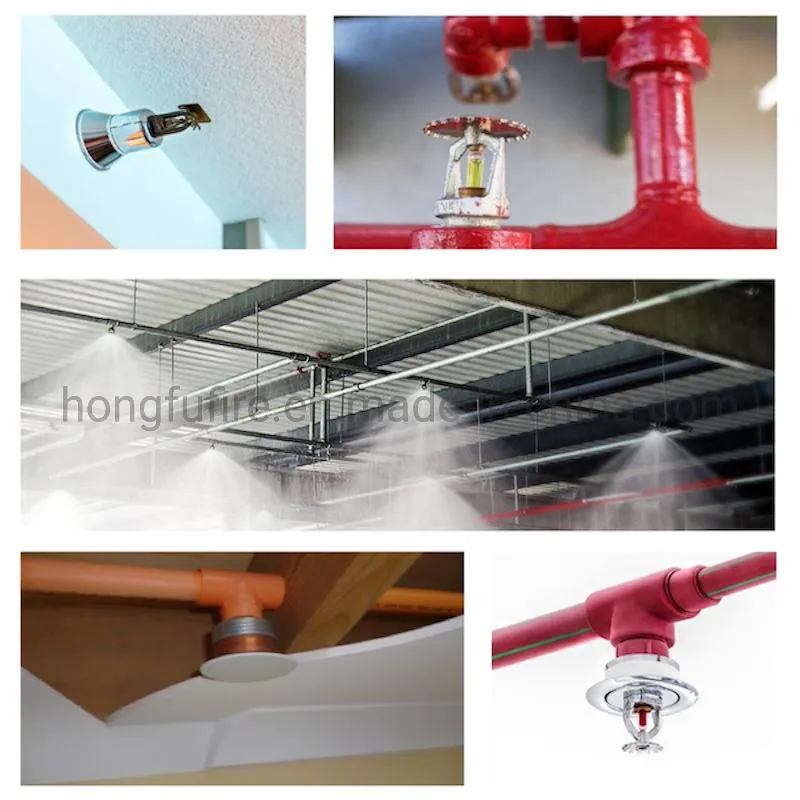

Automatic sprinkler system is the main components,It's widely used in high-rise buildings,hotels,shopping malls,factories,warehouses and other buildings,to meet the various hazards Level of protection requirements.
| Item Name | Fire sprinkler |
| Material | Brass |

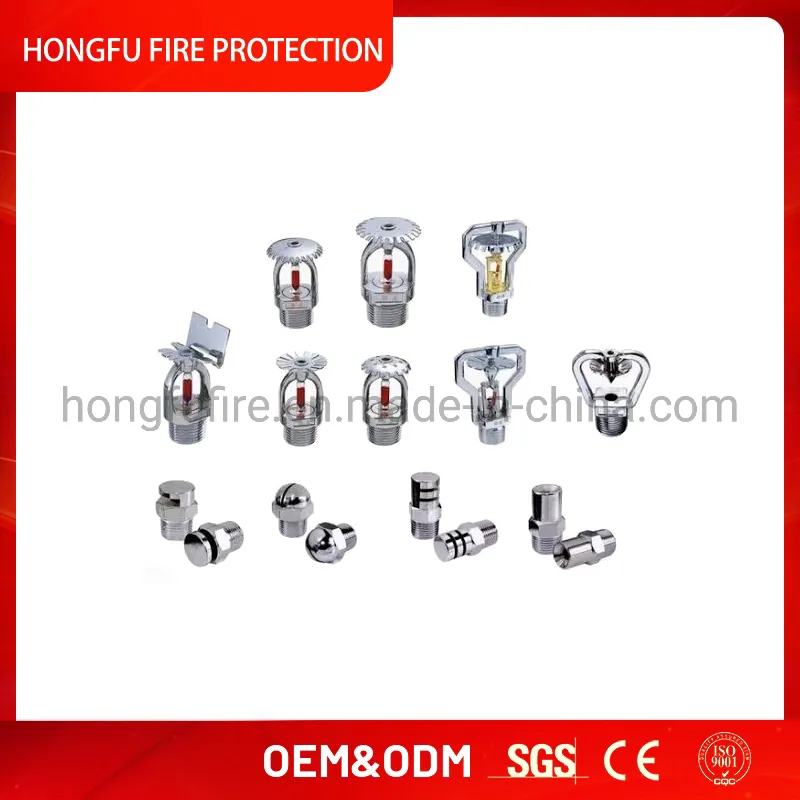

| Type | Pendent/Upright/Sidewall/Conceal |
| Finish | Brass/Chrome Plated/White Painting |
| Glass Bulb | 3mm/5mm |
| Temp Rating | 57/68/79/93/141/182 Degree |
| Thread Size | 1/2'' 3/4'' 1'' |
| Thread Standard | BSPT/NPT |
| Response | Standard/Quick |
| Flow Rate | 80±4 or 115±6 |
| K Factor | 5.6/8.0 |
| Coverage | Standard Coverage |
| Max Working Pressure | 1.2Mpa(12Bar/175Psi) |
| Min Operating Pressure | 0.05Mpa(0.5Bar/7Psi) |
| Certificate | CCC/UL |
The red liquid on the fire sprinkler is an extremely sensitive thing to heat. When the temperature rises, it quickly expands, breaking the glass that holds it, and then the pressure sensor in the glass will make the fire sprinkler pump spray water.

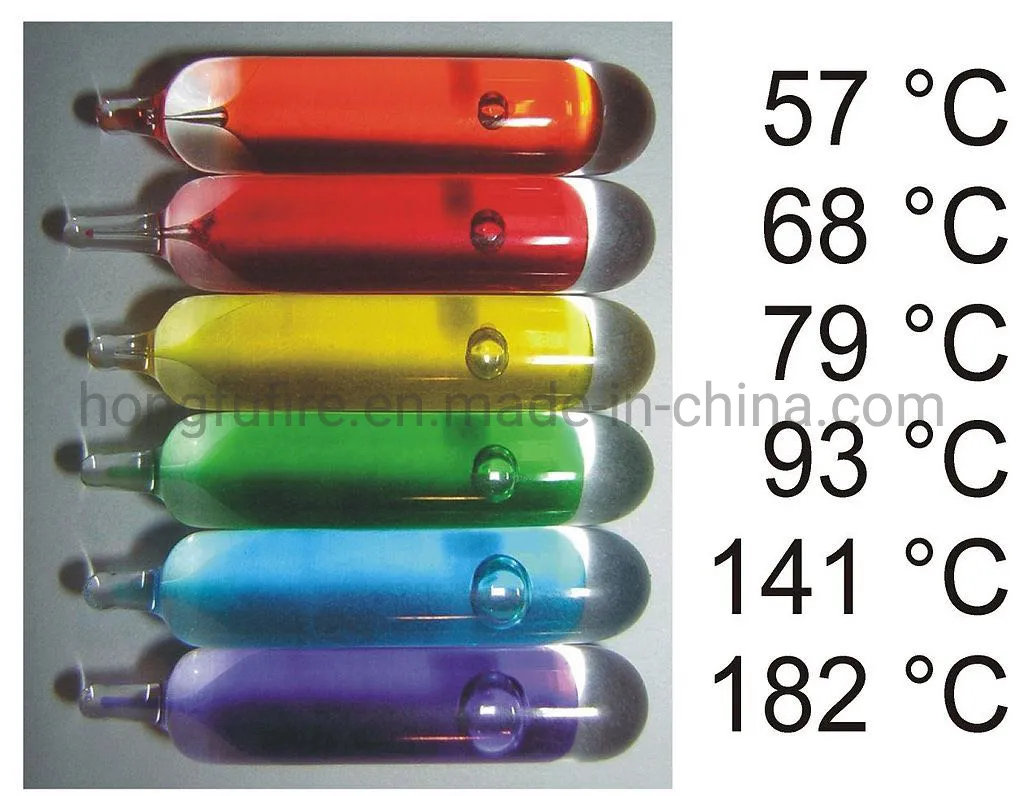

The liquid in the glass bulb is color coded to show temp rating.
| Temp Rating | Max Ceiling Temp | Glass Ball Color |  |
| 57°C | 27°C | Orange | |
| 68°C | 38°C | Red | |
| 79°C | 49°C | Yellow | |
| 93°C | 63°C | Green | |
| 141°C | 111°C | Blue | |
| 182°C | 152°C | Purple |
1. The installation distance of the spray head is generally 3.6 meters in diameter and 1.8 meters in radius;
2. The maximum protection area of the sprinkler is 12.5 square;
3. The spray head should not be less than 300mm from the wall;
4. When the distance between the spray head and the ceiling is greater than 80m, and there are combustibles in the ceiling, the upper and lower sprays are required.
