Marine Hfc-227ea Fire Fighting Suppression Plant Equipment

Marine Hfc-227ea Fire Fighting Suppression Plant Equipment

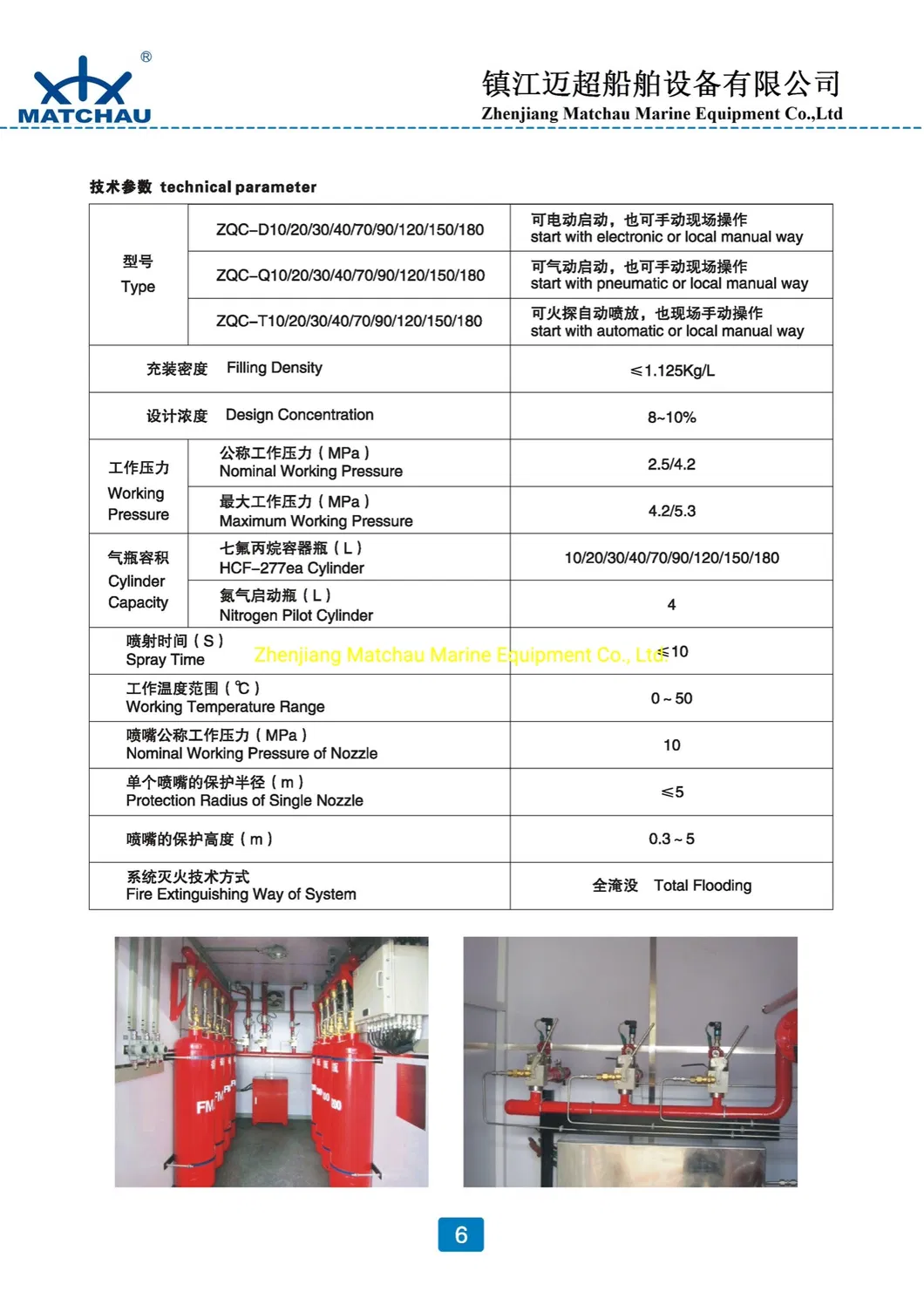

1.Specifications:

Approval standard

Chapter 5 of International code for fire safety systems;

MSC/Circ.848 revised guidelines for the approval of equivalent fixed gas fire extinguishing systems, as referred to in chapter II-2 of SOLAS 74 for machinery spaces and cargo pump rooms.

MSC.1/Circ.1267 <amendments to revised guidelines for the approval of equivalent fixed gas fire extinguishing systems as referred to in SOLAS 74 for machinery spaces and cargo pump-rooms>.

Class:CCS,BV,RINA,DNVGL,ISO,etc...


2.Application of the product

Marine fire extinguishing system, offshore oil platform

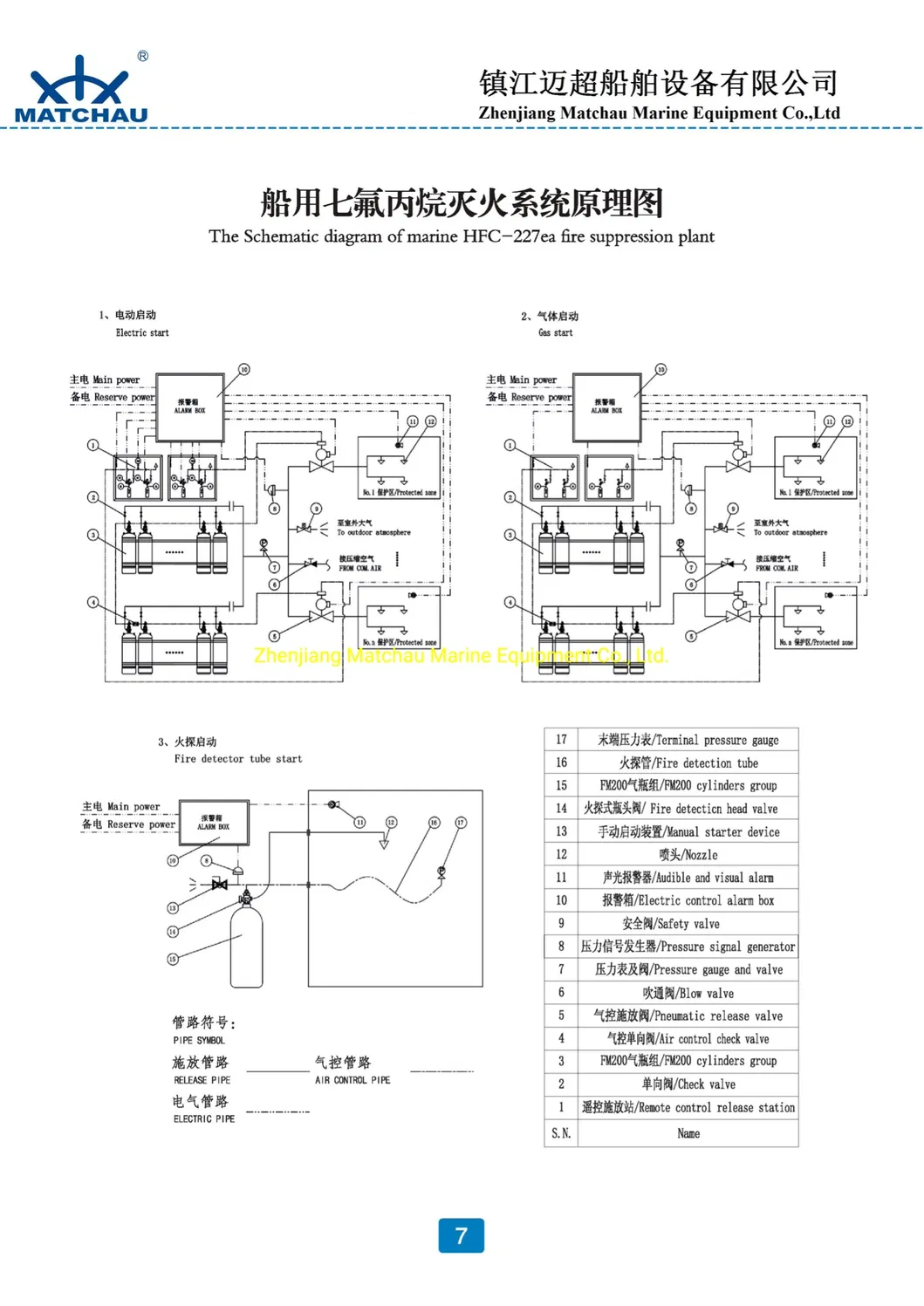

3.System composition

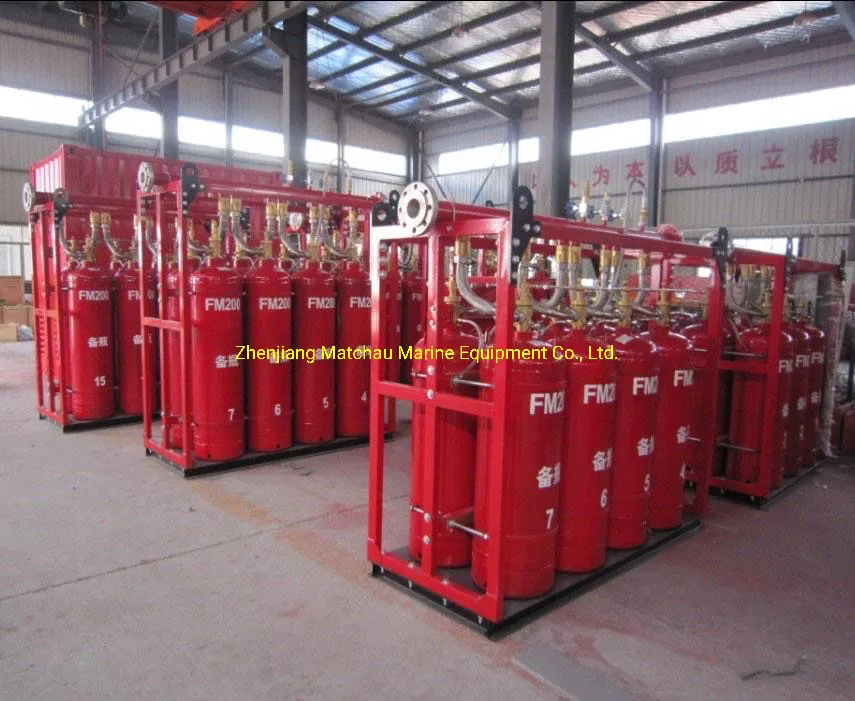

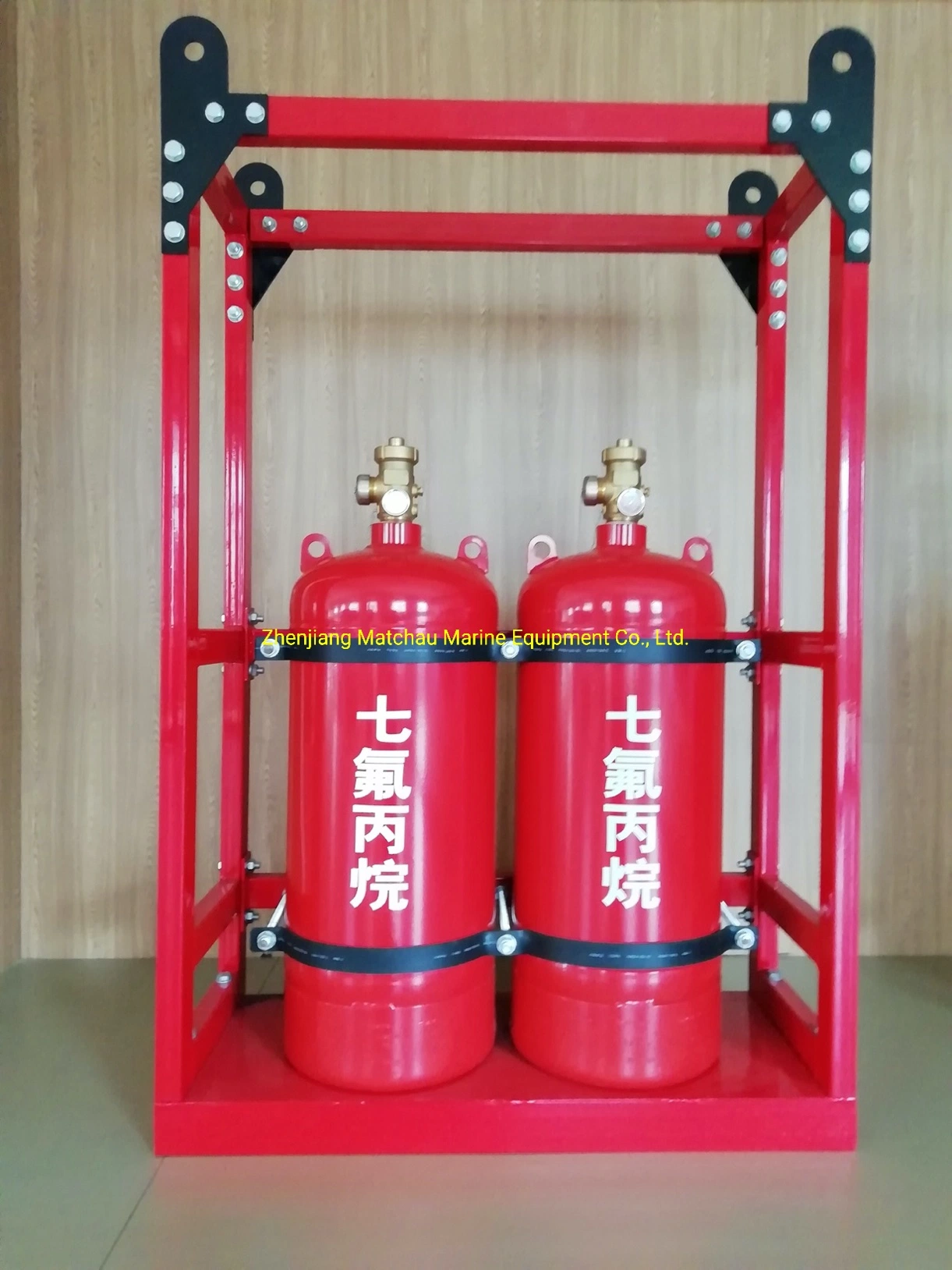

Marine HFC-227ea fire suppression plant consists of cylinder group, bracket, check valve,manifold pipe,selector valve, safety valve, flush valve, pressure gauge, pressure signal generator,pipeline,nozzle,agent,fire detector, gas fire controller, audible and visual alarm, alarm, release indicator, emergency ON/OFF button and etc.
