Sidewall Fire Sprinker, Fire System, Low Price, Water Sprinkler, Fire Fighting
FOB Price:US $ 0.6 / PieceMin.Order Quantity:600 Piece/Pieces Negotiable Trial OrderSupply Ability:10000 Piece/Pieces per DayPort:xiamenPayment Terms:L/C,D/P,T/TQuick DetailsPlace of Origin: Fujian, China (Mainland)Brand Name: GWModel Number: ZSTZ&ZSTXmaterial: CopperNorminal diameter ( mm):: DN......
Send Inquiry
Product Description
| FOB Price: | US $ 0.6 / Piece |
|---|---|
| Min.Order Quantity: | 600 Piece/Pieces Negotiable Trial Order |
| Supply Ability: | 10000 Piece/Pieces per Day |
| Port: | xiamen |
| Payment Terms: | L/C,D/P,T/T |
Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: GW
Model Number: ZSTZ&ZSTX
material: Copper
Norminal diameter ( mm):: DN15 or DN20
K-factor:: 80(5.6) or 115(8.0)
Material:: brass, chrome finished
Connecting thread:: 1/2"(15mm), 3/4"(20mm)
Glass bulb diameter:: 5mm or 3mm
Temprature rate:: 68 79 or 93 degree
Glass bulb color:: red yellow or green
Working pressure: 1.2MPa (2.4 Bar)
Certificate:: UL or CCCF
Packaging & Delivery

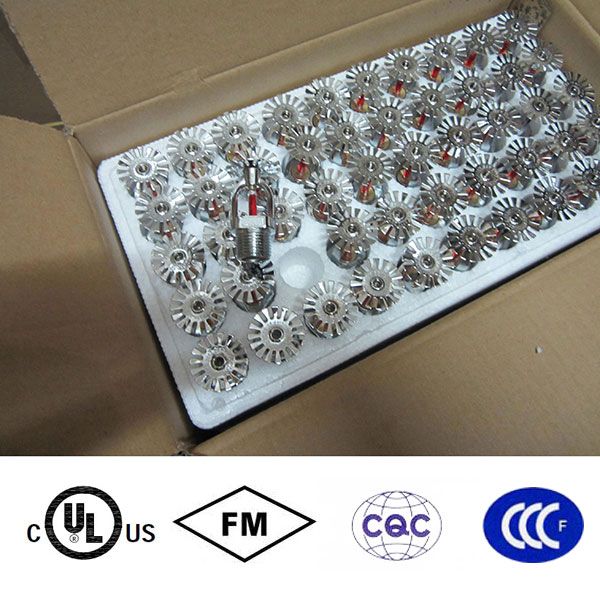

Packaging Details: carton packing: 36cmx34cmx29cm 200 pieces in one carton packing. 12KG weight earch one carton.
Delivery Detail: 10,000 pieces can be ready for delivery within one week
specification:
(1) rated working pressure: 12 bars(1.2Mpa)
(2) airproof test pressure: 24bars(2.4Mpa)
(3) strength test pressure: 30bars(3Mpa)
(4) thread: 1/2",3/4"
(5) large coverage glass bulb sprinkler
(6) 20mm diameter model:

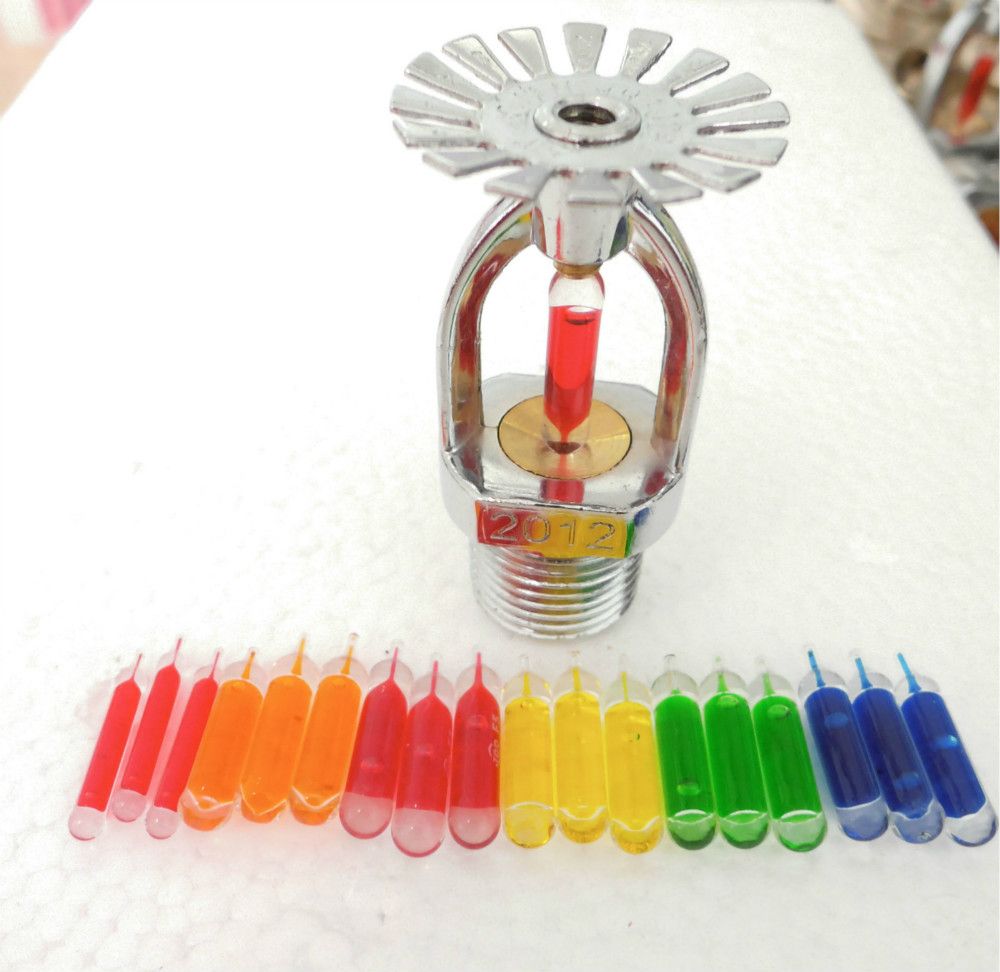

| Nozzle Temperature Rating | The maximum ambient temperature | Color liquid-filled glass ball |
| 57 | 38°C | Orange |
| 68 | 38°C | Red |
| 79 | 38°C | Yellow |
| 93 | 38°C | Green |
| 141 | 38°C | Blue |
