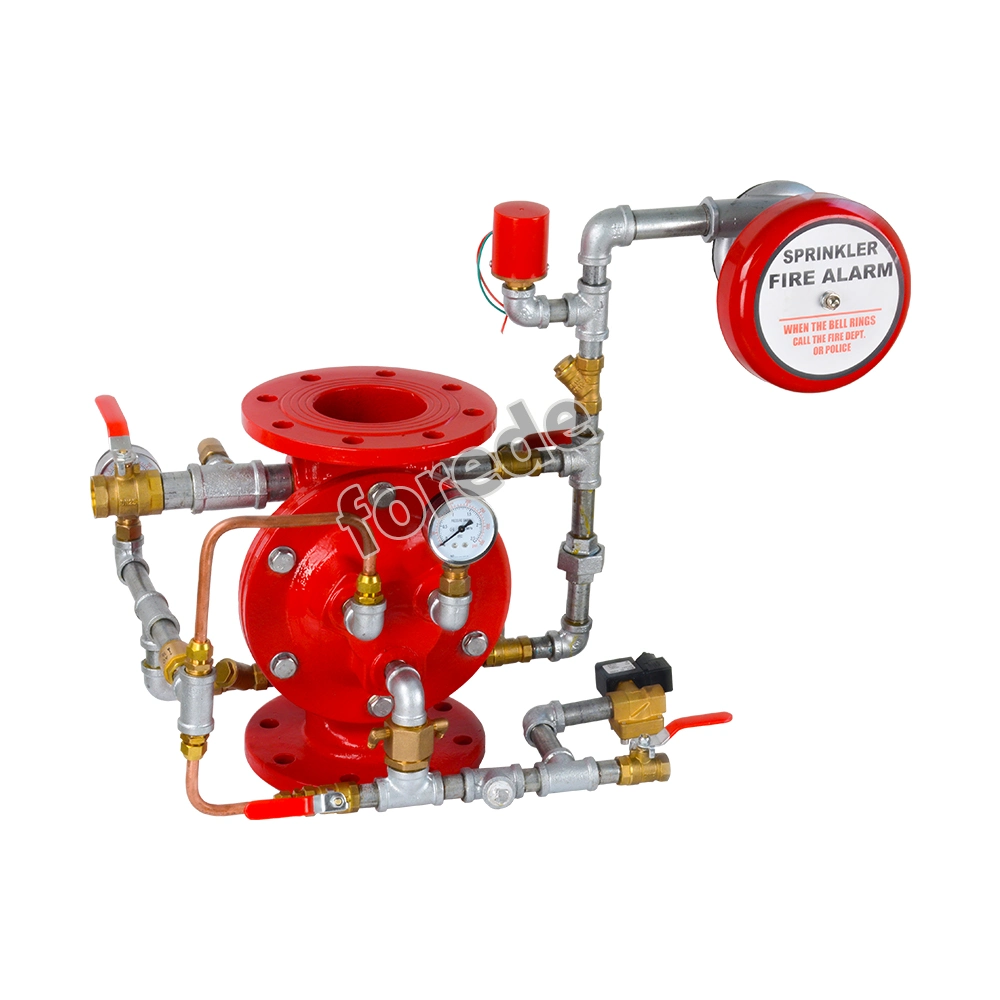

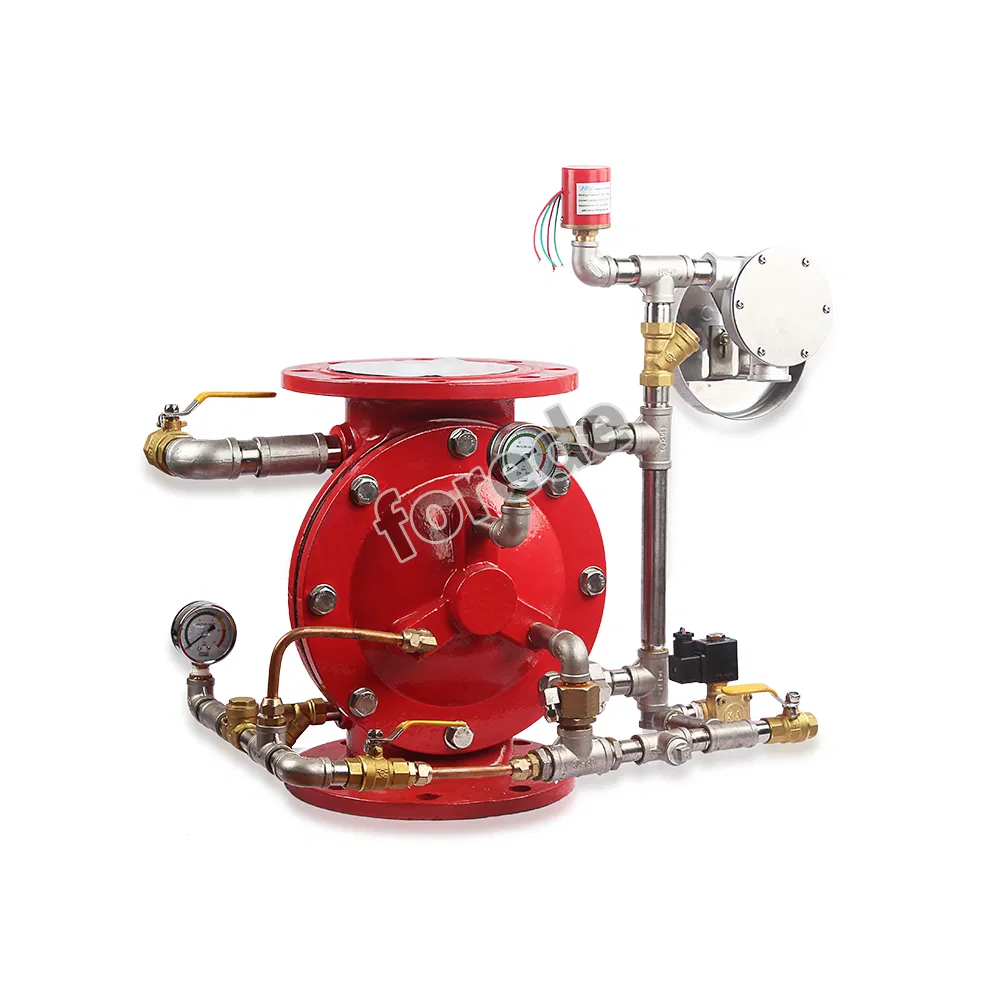

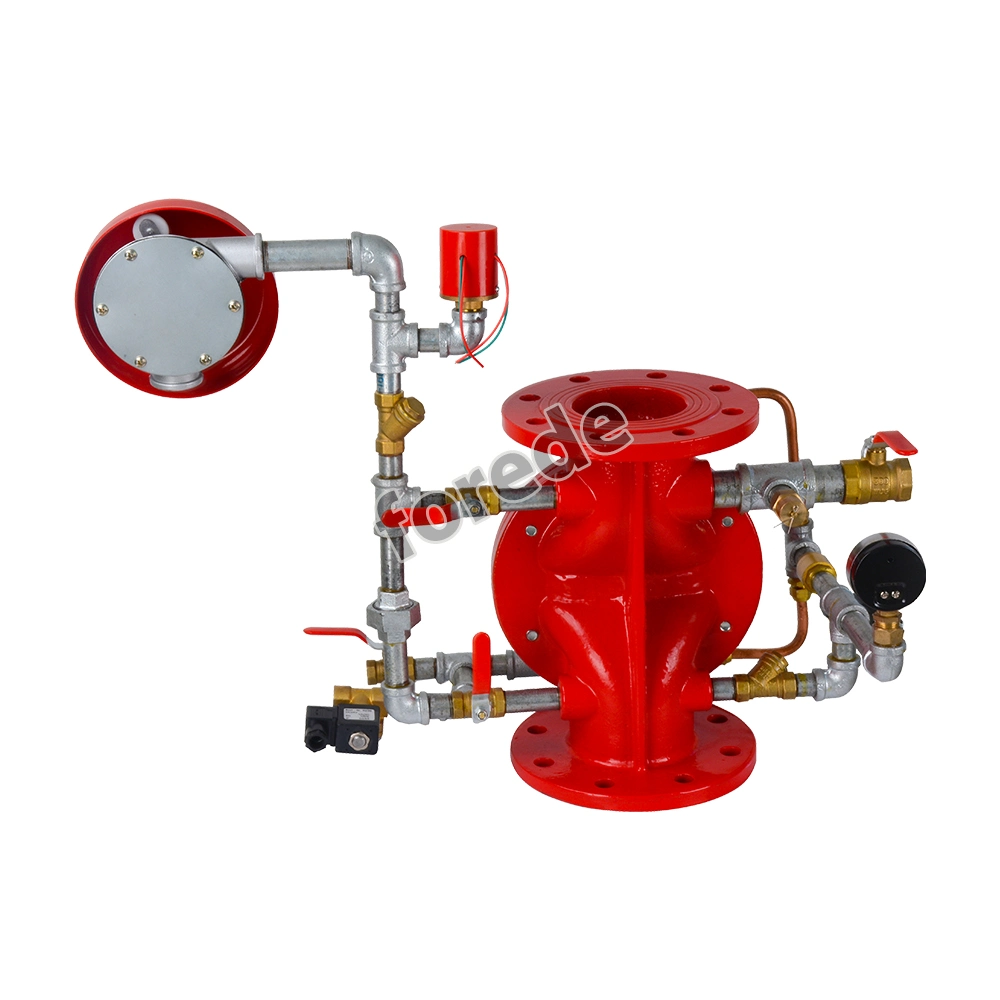

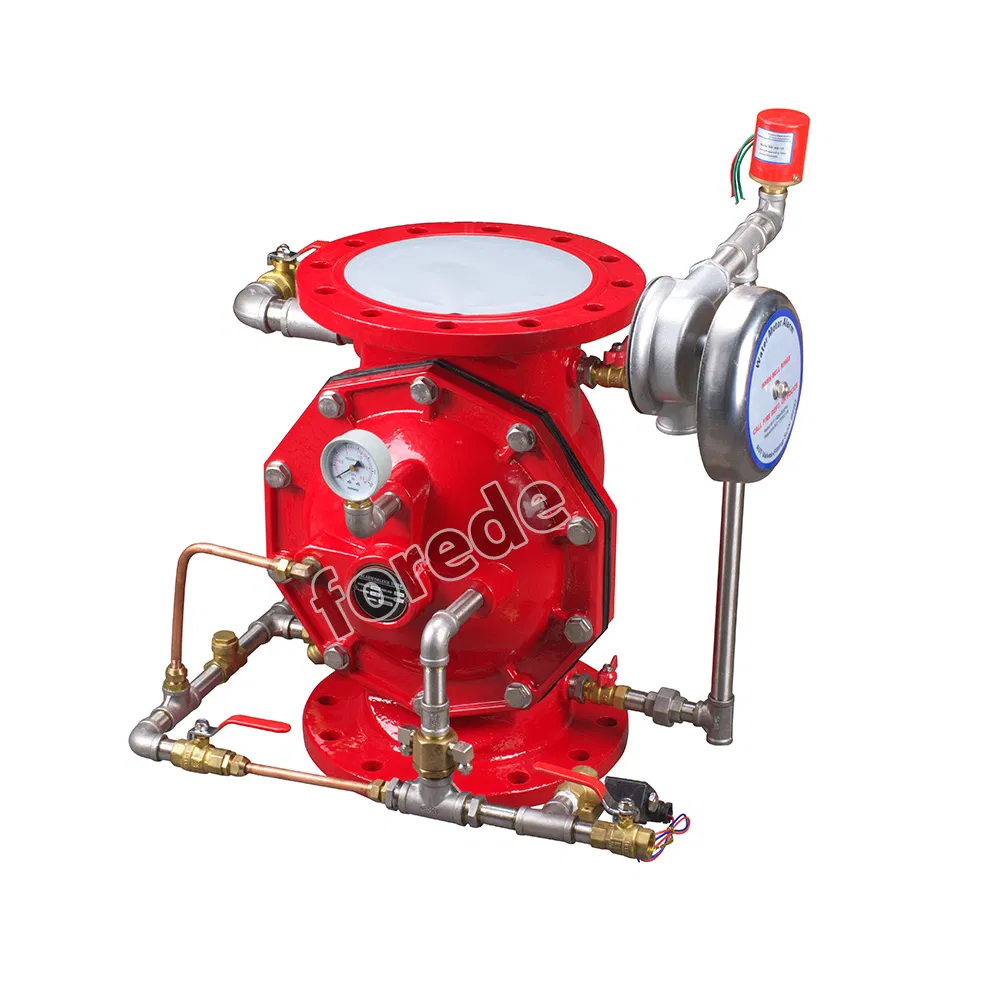

Stainless Steel Alarm Gong Deluge Valve with Trim for Fire Fighting System

Product Description

ZSFM Fire Fighting Diaphragm Deluge Valve

Deluge Valve,External Resetting Diaphragm Style - 2"thru 12". Deluge Valves are diaphragm type valves designed for vertical installation for fire protection system service. they are used as "automatic water control valves" in deluge, preaction, and special types of fire protection systems such as foam-water systems. When properly trimmed, the Valves provide actuation of fire alarms upon system operation.

Stainless Steel Alarm Gong Deluge Valve with Trim for Fire Fighting System

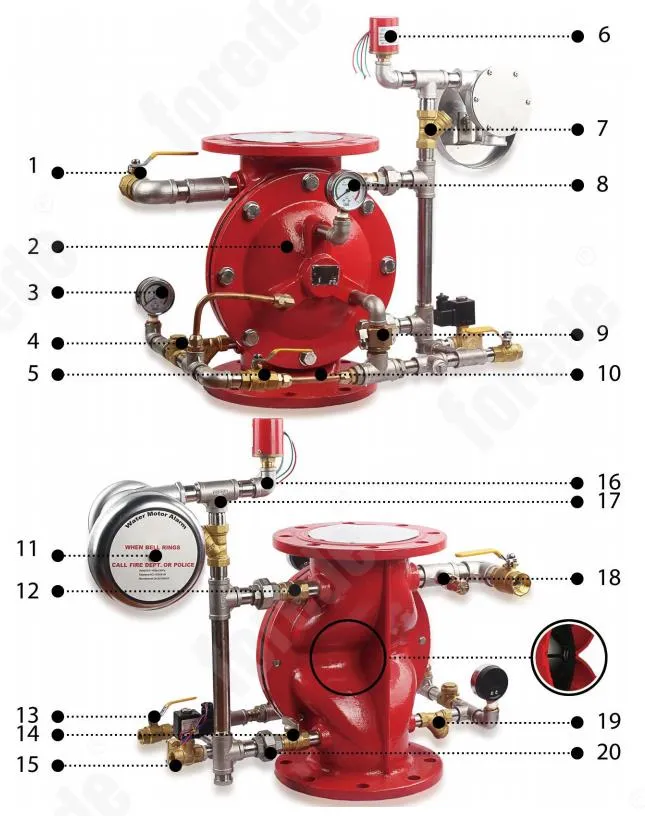

Material
1.Drain Valve(NC)	Brass	11.Water Motor Gong	DI/SS
2.Deluge Valve	DI/SS	12.Ball Valve	Brass
3.Inlet Gauge	Brass/SS	13.Manual Valve	Brass
4.Non-Return Valve	Brass	14.Ball Valve	Brass
5.Re-Set Valve	Brass	15.Solenoid Valve	Brass
6.Pressure Switch	Brass	16.Elow	Galvanized Pipe/SS304
7.Y Strainer	Brass	17.Tee Fitting	Galvanized Pipe/SS304
8.Chamber Gauge	Brass/SS	18.Drain Valve	Brass
9.Drain Valve	Brass	19.Y Strainer	Brass
10.Cooper Pipe	Red Cooper	20.Union Coupling	Galvanized Pipe/SS304

Technical Data
1.Available sizes	2"thru 12"/DN50-DN300	5.Installation	Vertical
2. Finish	Externally powder coated	6.Features	External resetting
3.Medium	For most water	7.Connection	Flange /Groove
4.Rated Pressure	232Psi/1.6 Mpa/16 Bar	8.Approvals	CCC,ISO9001, ISO14001

Stainless Steel Alarm Gong Deluge Valve with Trim for Fire Fighting System

Dear Customer,

Before ordering, please contact with our sales team to discuss order information.

If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
