Top Quality Dn15/20 Fire Sprinkler for Fire Fighting System
Top quality DN15/20 fire sprinkler for fire fighting systemTechnical Specification:Norminal diameter(mm)DN15,DN20MaterialAluminum, chrome platingGlass bulb colorOrange, red, yellow, green, blue, purpleBulb3mm or 5mmFlow Rate80±4 or 115±6Temperature rating57,68, 79,93,141,182 de......
Send Inquiry
Product Description
Top quality DN15/20 fire sprinkler for fire fighting system
Technical Specification:
ZS Fire Sprinkler:
ZS galss bulb fire sprinkler is key components in automatic sprinkler system.It plays detecting fire hazards and extinguishing fire via automatic water spraying.It is widely used in various civil buildings and high civil/industrial buildings what are sorted as low,medium or high fire hazard protected area.
Structure
ZS model glass bulb fire sprinklers consist of galss bulb,copper alloy and sealing pieces.
Sprinkler frame is refined from copper alloy what makes it strong hardness and corrosion resistance.It is polished and chrome plated.All kinds of models are available for users' choice.Glass bulb what is sensitive units and sealilng gasket both adopt well imported material,corrosion and aging resistant.Glass bulb is fast,reliable and sensitive.

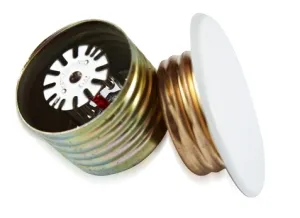

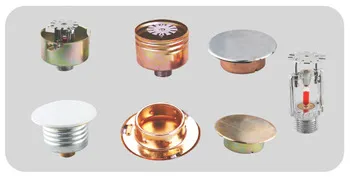

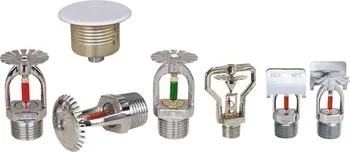

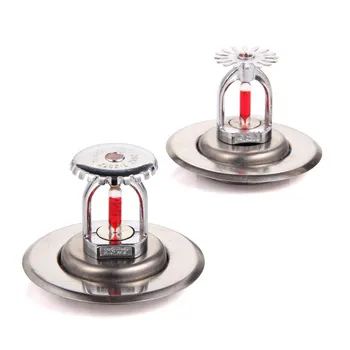

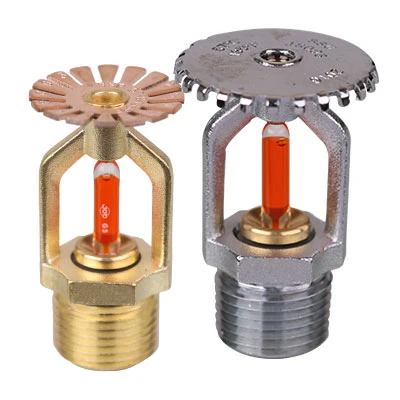

Picture:
Technical Specification:
| Norminal diameter(mm) | DN15,DN20 |
| Material | Aluminum, chrome plating |
| Glass bulb color | Orange, red, yellow, green, blue, purple |
| Bulb | 3mm or 5mm |
| Flow Rate | 80±4 or 115±6 |
| Temperature rating | 57,68, 79,93,141,182 degree |
| Type | Pendent, upright, sidewall types of fire sprinkler |
| Response | Quick response |
| Certificates | ISO and CCC |
| Usage | Rescu system |
| Nozzle Rated Temp | Max Ambient Temp | Glass Ball Color |
| 57°C | 27°C | Orange |
| 68°C | 38°C | Red |
| 79°C | 49°C | Yellow |
| 93°C | 63°C | Green |
| 141°C | 111°C | Blue |
| 182°C | 152°C | Purple |
ZS Fire Sprinkler:
ZS galss bulb fire sprinkler is key components in automatic sprinkler system.It plays detecting fire hazards and extinguishing fire via automatic water spraying.It is widely used in various civil buildings and high civil/industrial buildings what are sorted as low,medium or high fire hazard protected area.
Structure
ZS model glass bulb fire sprinklers consist of galss bulb,copper alloy and sealing pieces.
Sprinkler frame is refined from copper alloy what makes it strong hardness and corrosion resistance.It is polished and chrome plated.All kinds of models are available for users' choice.Glass bulb what is sensitive units and sealilng gasket both adopt well imported material,corrosion and aging resistant.Glass bulb is fast,reliable and sensitive.

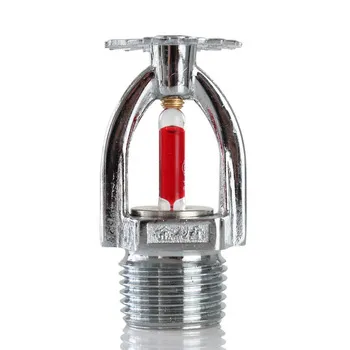

Picture:
